Programmable AC Power for Power-Environment Testing
The KIKUSUI PCR-LE / PCR-LE2 Series combines a linear-amplifier architecture with programmable AC, DC, and AC+DC output for reproducing a wide range of power conditions in laboratory and system-level testing.
The platform is designed for applications that require controlled voltage, frequency, waveform, and power-line conditions. Built-in functions support sequence operation, output measurement, harmonic measurement, and simulation of power outages, voltage dips, and voltage increases.
1 Hz to 999.9 Hz
Wide programmable AC frequency range
AC / DC / AC+DC
Multiple output modes from one test platform
Power-Line Simulation
Outage, voltage dip, and voltage increase testing
Expandable Systems
Parallel and multi-phase configurations supported where applicable

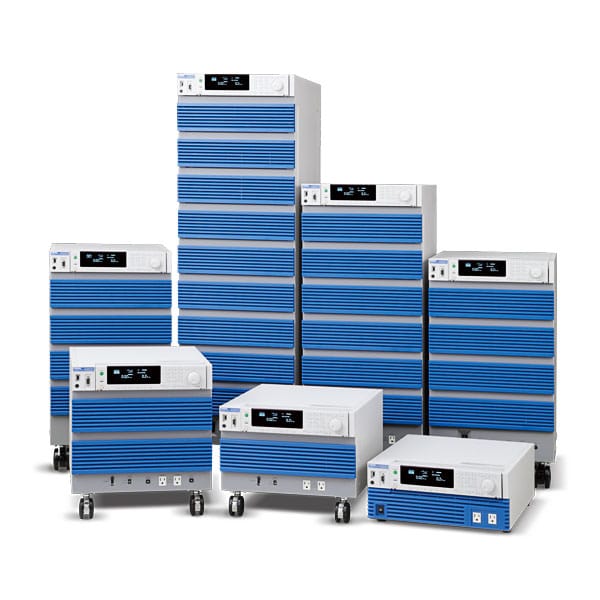

The PCR-LE Series covers single-phase systems from 500 VA to 9 kVA, with expansion options available for larger single-phase and multi-phase systems. The higher-capacity PCR-LE2 models provide single-phase, single-phase three-wire, and three-phase four-wire operation from 6 kVA to 27 kVA depending on configuration.
Product status: Availability varies across the PCR-LE lineup. The PCR-LE2 Series has been discontinued and is included on this page for legacy product identification and technical reference.
Linear-Amplifier AC Power Source
The PCR-LE / LE2 platform uses a linear-amplifier system designed for controlled, high-quality output and reproduction of a wide range of power conditions.
AC, DC, and AC+DC Output
Supports AC output from 1 V to 150 V in the L range or 2 V to 300 V in the H range, with DC and AC+DC capability up to ±212 V or ±424 V depending on range.
1 Hz to 999.9 Hz Frequency Range
Programmable output frequency supports testing across standard mains frequencies and a much wider range of simulated power environments. Certain three-phase configurations may have a 500 Hz upper limit.
Power-Line Disturbance Simulation
Simulate AC power abnormalities including power outages, voltage drops or dips, and voltage increases directly from the PCR-LE platform for electrical and electronic equipment testing.
Sequence and Measurement Functions
Built-in sequence operation works with integrated voltage, current, and power measurement functions. Harmonic measurement, sensing, output-current control, and output-impedance setting are also supported.
Flexible System Expansion

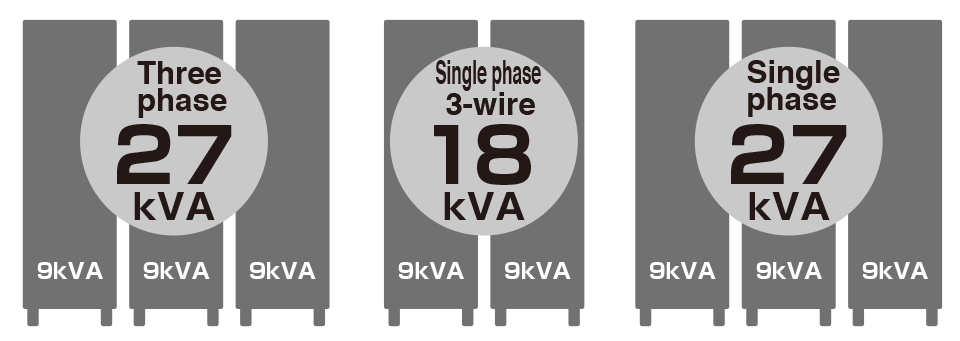

PCR-LE models of 2 kVA and above can be combined for parallel operation using the required expansion drivers, supporting up to five units and up to 27 kVA single-phase capacity. Multi-phase expansion is also supported with the appropriate options.
Multi-Phase Capability
The PCR-LE system can be expanded for single-phase three-wire and three-phase operation. PCR-LE2 models provide selectable single-phase, single-phase three-wire, and three-phase four-wire AC operation.
Remote Control Interfaces
RS232C is provided as the standard communication interface. Optional GPIB, USB, and LAN/LXI interfaces support integration into automated test systems.
Grid-connected power equipment and power conditioner testing
AC power-line disturbance and voltage fluctuation testing
EMC and immunity pre-compliance test power
Switching power supply and electronic equipment evaluation
Smart-grid and distributed-energy equipment evaluation
Residential energy-storage and smart-meter testing
Large-capacity electrical equipment and industrial system testing
Automated R&D and production test systems
PCR-LE Model Comparison
| Specification | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE |
|---|---|---|---|---|---|---|---|
| Product Status | Sales discontinued | Sales discontinued | Sales discontinued | Production discontinued / limited stock | Contact Denkei for availability | Contact Denkei for availability | Contact Denkei for availability |
| AC Power Capacity | 500 VA | 1 kVA | 2 kVA | 3 kVA | 4 kVA | 6 kVA | 9 kVA |
| AC Output Voltage, L / H Range | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V |
| Maximum AC Current, L / H Range | 5 / 2.5 A | 10 / 5 A | 20 / 10 A | 30 / 15 A | 40 / 20 A | 60 / 30 A | 90 / 45 A |
| DC Output Voltage, L / H Range | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V |
| Maximum DC Current, L / H Range | 3.5 / 1.75 A | 7 / 3.5 A | 14 / 7 A | 21 / 10.5 A | 28 / 14 A | 42 / 21 A | 63 / 31.5 A |
| AC Frequency | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz |
| Base Output Configuration | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase |
Output current may be reduced depending on output voltage, frequency, and load power factor. Multi-phase and expanded configurations require the applicable system options.
PCR-LE2 Legacy Model Comparison
| Specification | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 |
|---|---|---|---|---|---|
| Product Status | Discontinued | Discontinued | Discontinued | Discontinued | Discontinued |
| AC Capacity, Single-Phase / Three-Phase 4-Wire | 6 kVA | 9 kVA | 12 kVA | 18 kVA | 27 kVA |
| AC Capacity, Single-Phase 3-Wire | 4 kVA | 6 kVA | 8 kVA | 12 kVA | 18 kVA |
| AC Phase Voltage, L / H Range | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V | 1–150 V / 2–300 V |
| Maximum AC Current, Single-Phase L / H | 60 / 30 A | 90 / 45 A | 120 / 60 A | 180 / 90 A | 270 / 135 A |
| Maximum AC Current, Multi-Phase L / H | 20 / 10 A | 30 / 15 A | 40 / 20 A | 60 / 30 A | 90 / 45 A |
| DC / AC+DC Phase Voltage, L / H Range | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V | ±1.4–±212 V / ±2.8–±424 V |
| Maximum DC Current, Single-Phase L / H | 42 / 21 A | 63 / 31.5 A | 84 / 42 A | 126 / 63 A | 189 / 94.5 A |
| Maximum DC Current, Single-Phase 3-Wire L / H | 14 / 7 A | 21 / 10.5 A | 28 / 14 A | 42 / 21 A | 63 / 31.5 A |
| AC Frequency | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz | 1–999.9 Hz |
| AC Output Configurations | 1φ / 1φ3W / 3φ4W | 1φ / 1φ3W / 3φ4W | 1φ / 1φ3W / 3φ4W | 1φ / 1φ3W / 3φ4W | 1φ / 1φ3W / 3φ4W |
DC and AC+DC modes apply to single-phase and single-phase three-wire operation. Certain 500 Hz limit versions restrict the upper frequency during three-phase operation.
Common Functional Specifications
| Circuit Architecture | Linear amplifier system |
|---|---|
| AC Output Range | 1–150 V (L range) / 2–300 V (H range) |
| DC / AC+DC Output Range | ±1.4–±212 V (L range) / ±2.8–±424 V (H range) |
| Frequency Range | 1 Hz to 999.9 Hz, subject to configuration-specific limitations |
| Maximum Reverse Current | 30% of maximum RMS output current under specified operating conditions |
| Power-Line Simulation | Power outage, voltage drop / dip, and voltage increase simulation in AC mode |
| Sequence Function | Built-in programmable sequence operation |
| Measurement | Voltage, current, and power measurement; harmonic measurement supported |
| Standard Communication | RS232C |
| Optional Communication | GPIB, USB, LAN / LXI |
| PCR-LE Parallel Expansion | Models 2 kVA and above; up to 5 units and 27 kVA single-phase with required expansion drivers |

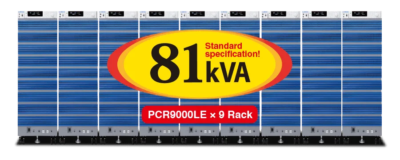

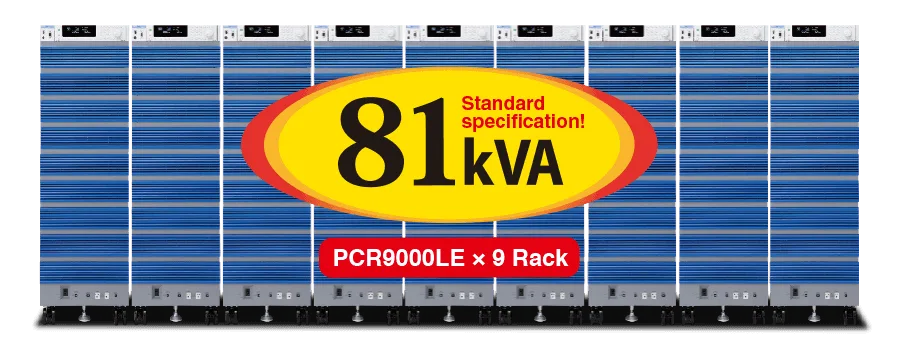

| Expanded Multi-Phase Capacity | Up to 54 kVA single-phase 3-wire or 81 kVA three-phase with applicable expansion options |

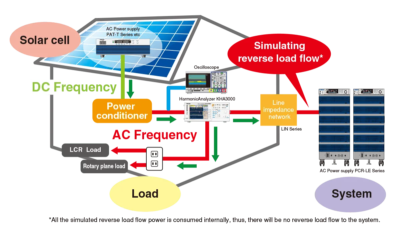

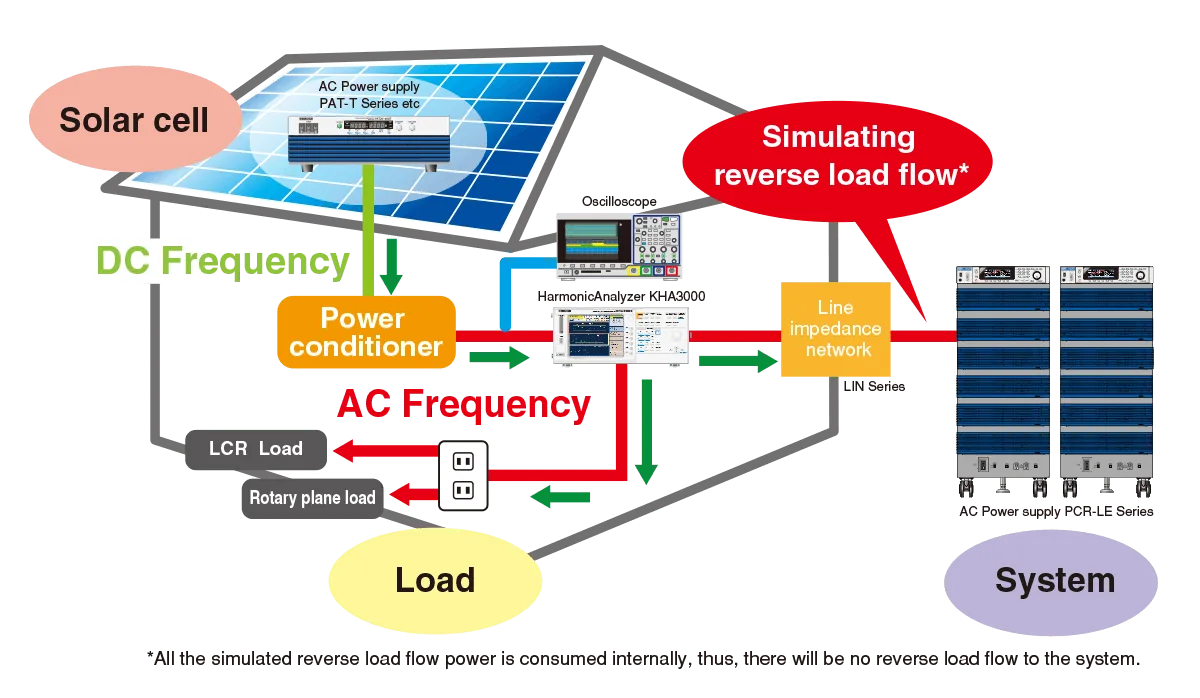

Reverse Power Flow Testing
The PCR-LE / PCR-LE2 Series supports reverse-current conditions for testing grid-connected equipment, but this capability should not be confused with a regenerative AC power supply.
KIKUSUI specifies a maximum reverse current of 30% of the maximum RMS output current under defined operating conditions. This allows the source to be used when evaluating equipment capable of reverse power flow.
Reverse power received from the device under test is consumed internally by the PCR system rather than regenerated back to the utility grid.
