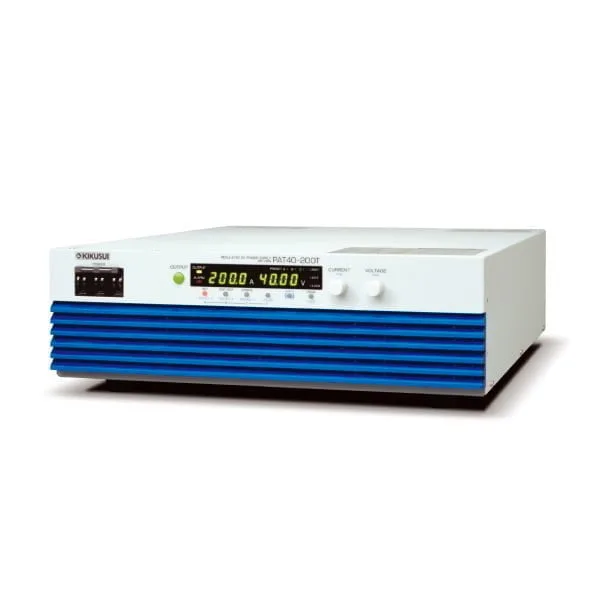

The KIKUSUI PAT-T Series is a high-capacity switching DC power supply for constant-voltage and constant-current testing, with current 4 kW and 8 kW models covering output voltages from 20 V to 850 V.
The KIKUSUI PAT-T Series is a high-capacity switching DC power supply designed for constant-voltage and constant-current testing where substantial DC power, high current, or high output voltage is required.

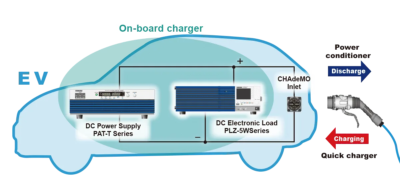

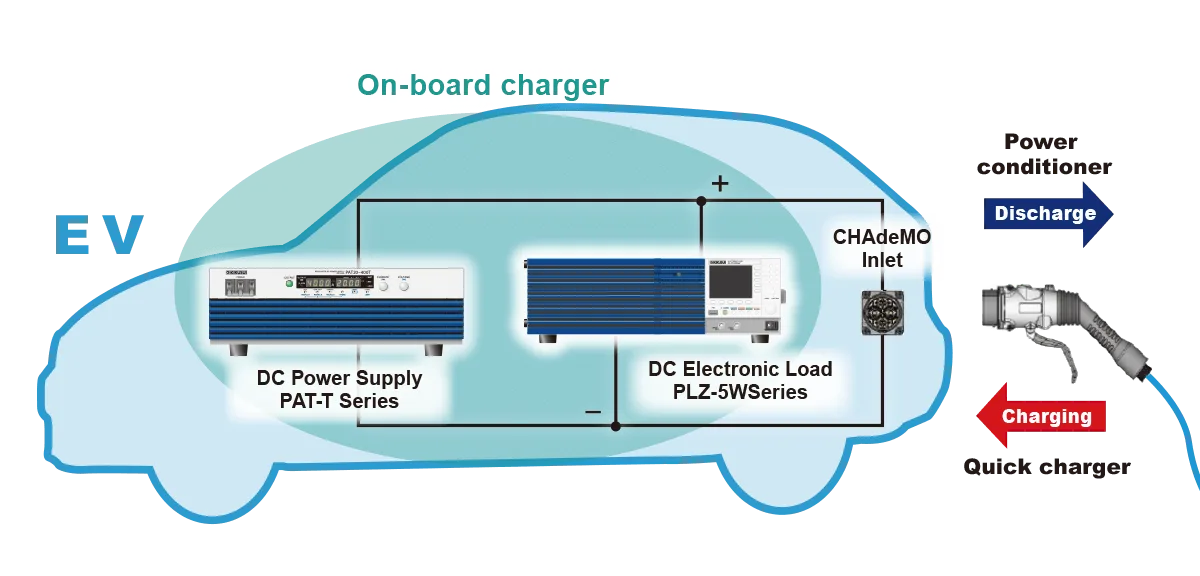

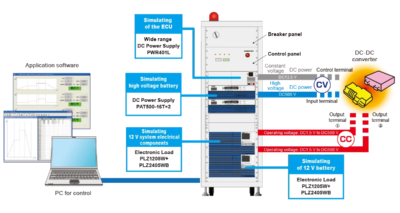

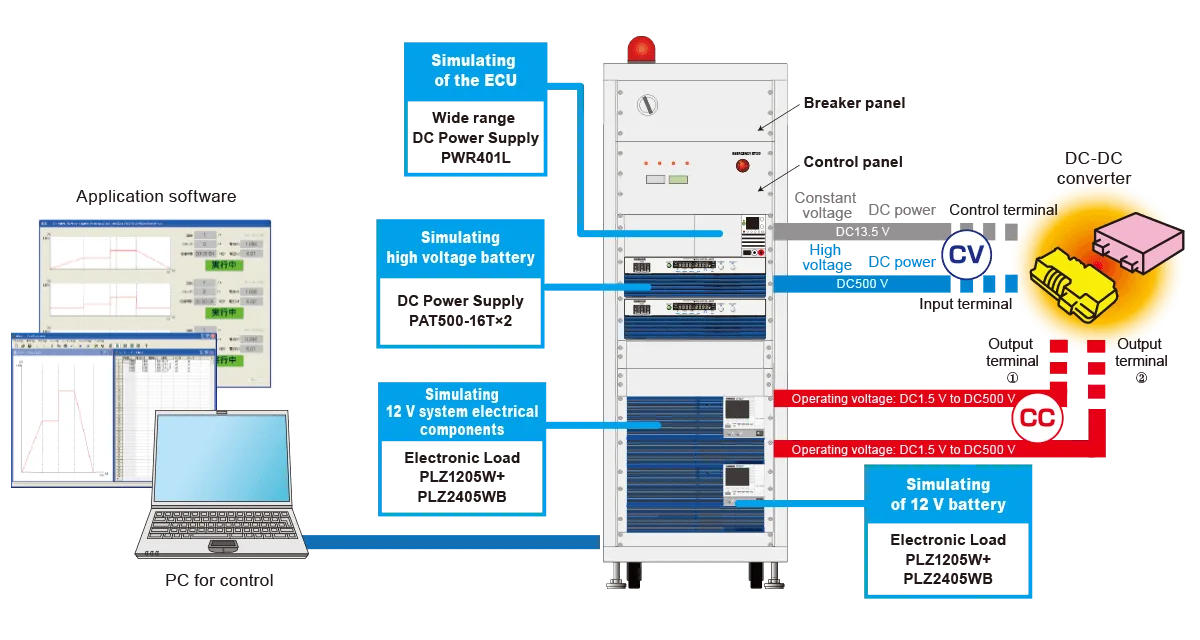

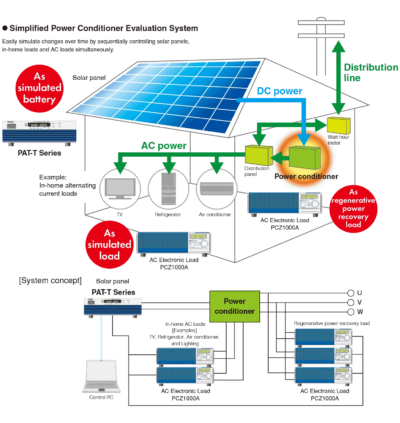

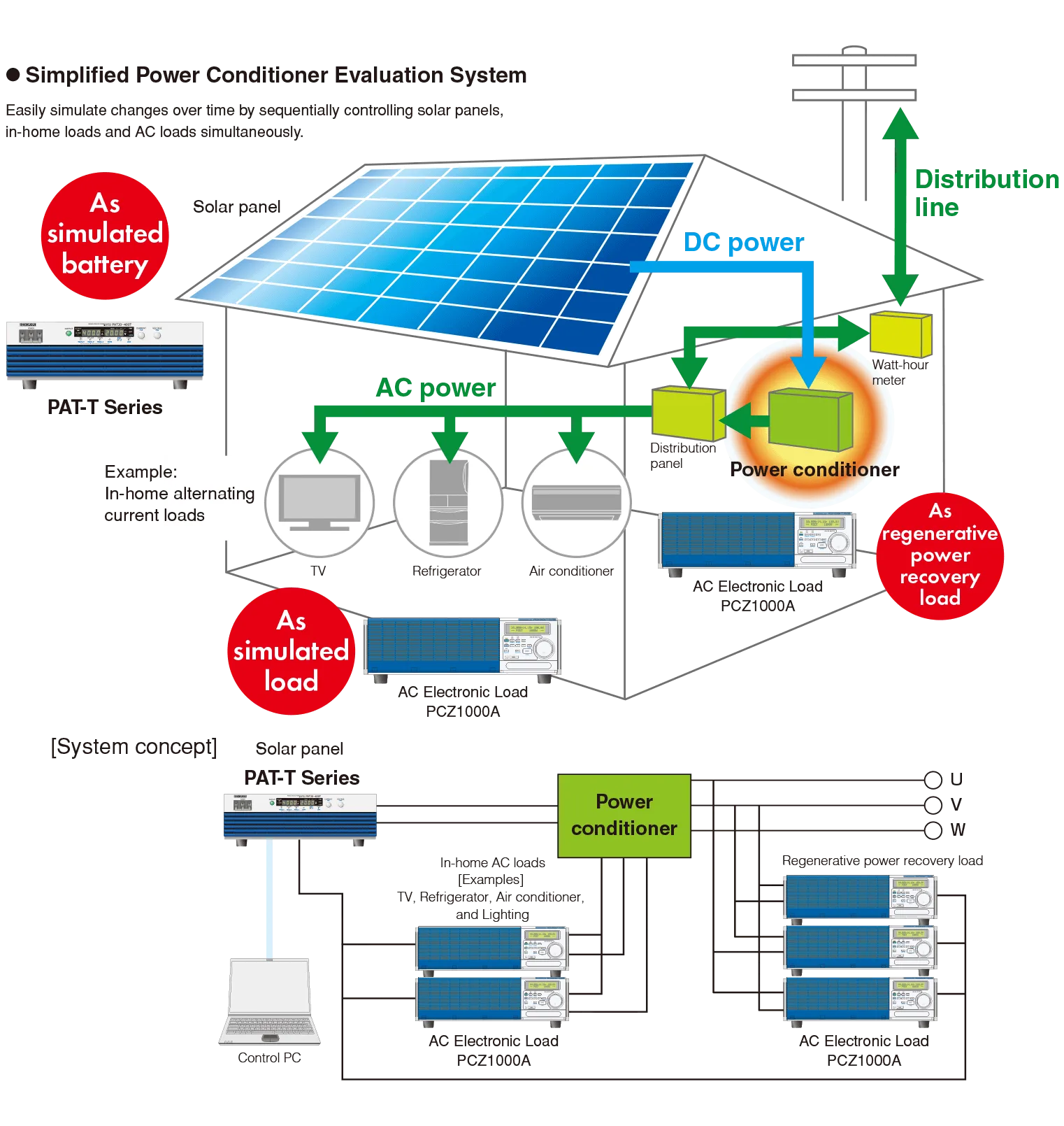

Current PAT-T models provide 4 kW or 8 kW of rated output power, with voltage ratings ranging from 20 V to 850 V and current ratings up to 400 A per unit. This broad model selection supports applications ranging from high-current automotive electronics and motors to power semiconductors, DC-DC converters, inverters, and high-voltage component evaluation.
The PAT-T uses a soft-switching topology for reduced output noise and high efficiency and incorporates a power factor correction circuit with a typical power factor of 0.95. RS232C is standard, while LAN, USB, and GPIB are available as factory-installed interface options for automated test and system integration.
Current PAT-T models provide either 4 kW or 8 kW of rated DC output, supporting demanding component, automotive, power-electronics, and industrial test systems.

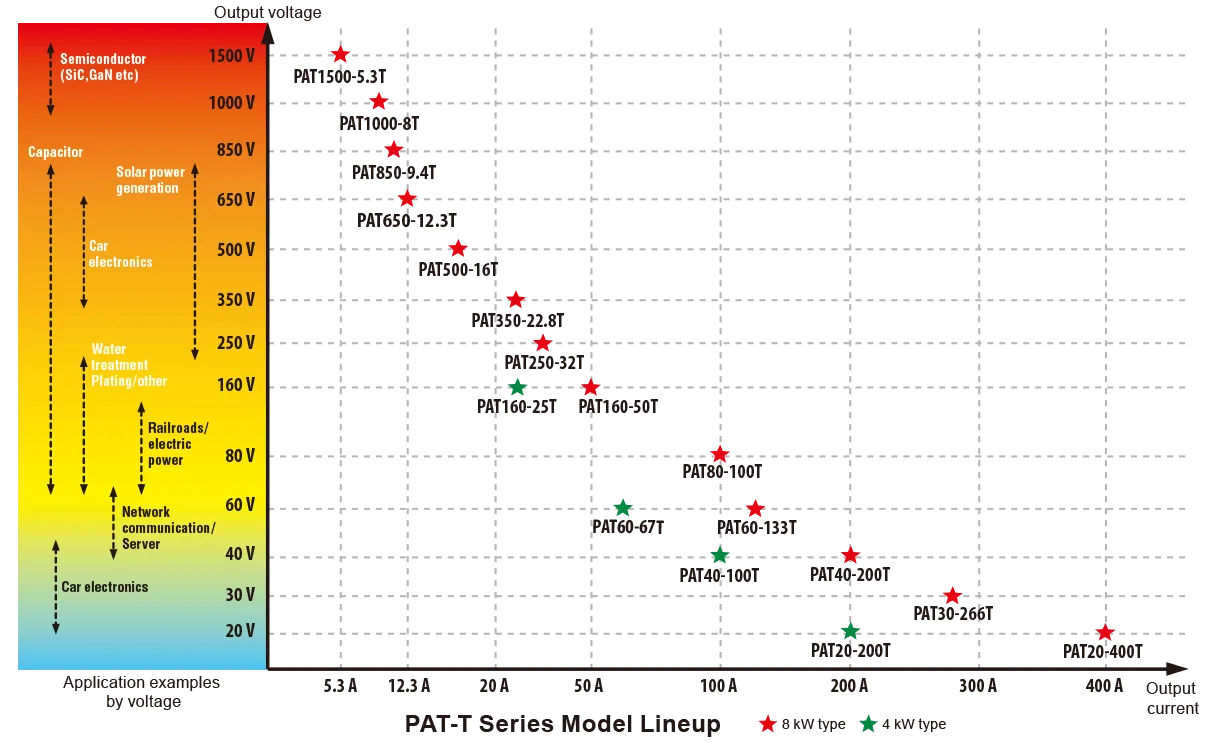

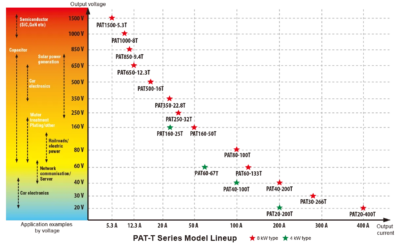

The current lineup extends from low-voltage, high-current models to 250 V, 350 V, 500 V, 650 V, and 850 V models for higher-voltage DC evaluation.
Constant-voltage and constant-current automatic crossover operation is combined with a soft-switching power stage designed for high efficiency and reduced output noise.
An integrated power factor correction circuit provides a typical power factor of 0.95 at rated operating conditions, helping reduce input-current and power-distribution requirements.
RS232C is standard, with LAN, USB, and GPIB available as factory options. External voltage and resistance programming supports integration into automated and specialized test systems.
Supported PAT-T configurations allow same-model series or parallel connection for increased voltage, current, or system power, subject to model-specific connection limits.
| Model | Rated Voltage | Rated Current | Rated Power |
|---|---|---|---|
| PAT20-200T | 20 V | 200 A | 4 kW |
| PAT40-100T | 40 V | 100 A | 4 kW |
| PAT60-67T | 60 V | 67 A | 4 kW |
| PAT160-25T | 160 V | 25 A | 4 kW |
| PAT20-400T | 20 V | 400 A | 8 kW |
| PAT30-266T | 30 V | 266 A | 8 kW |
| PAT40-200T | 40 V | 200 A | 8 kW |
| PAT60-133T | 60 V | 133 A | 8 kW |
| PAT80-100T | 80 V | 100 A | 8 kW |
| PAT160-50T | 160 V | 50 A | 8 kW |
| PAT250-32T | 250 V | 32 A | 8 kW |
| PAT350-22.8T | 350 V | 22.8 A | 8 kW |
| PAT500-16T | 500 V | 16 A | 8 kW |
| PAT650-12.3T | 650 V | 12.3 A | 8 kW |
| PAT850-9.4T | 850 V | 9.4 A | 8 kW |
| Operating Mode | CV / CC automatic crossover |
|---|---|
| CV Setting Accuracy | ±(0.2% of rating + 50 mV) |
| Maximum Voltage Setting | 105% of rated voltage |
| CV Line Regulation | ±(0.05% of rating + 5 mV) |
| CV Load Regulation | ±(0.1% of rating + 5 mV) |
| Transient Response | 5 ms under specified 50% to 100% load-current change conditions |
| CC Setting Accuracy | ±(0.5% of rating + 50 mA) |
| CV / CC Preset Memory | 3 sets of voltage and current settings |
| Output ON/OFF Delay | Off or 0.1 s to 10.0 s, 0.1 s resolution |
| Standard Digital Interface | RS232C |
| Factory-Option Interfaces | LAN / LXI, USB, GPIB |
| External Voltage Control | 0% to 100% of rated output using 0 V to 10 V input |
| External Resistance Control | 0% to 100% or 100% to 0% using 0 Ω to 10 kΩ |
| Monitor Outputs | Voltage and current monitor outputs |
| Remote Sensing | Supported |
| Protection Functions | OVP, OCP, overheat, input open-phase, fan error, sensing misconnection, bleeder overheat, and shutdown protection |
| Operating Temperature | 0°C to 50°C |
| Maximum Dimensions | 440 W × 155 H × 620 D mm |
