AC Source · Voltage/Frequency · Disturbance · Multi-Phase · Regenerative
Reproduce controlled AC input conditions for R&D and validation by selecting the appropriate source capacity, voltage/frequency control, disturbance behavior, phase configuration, and regenerative capability.
Start with the DUT input configuration, required VA/kVA, voltage and frequency range, phase count, disturbance profile, and whether regeneration is required.
FIND YOUR SOLUTION
Choose the AC source or grid-simulation workflow that best matches the DUT and test standard.
Controlled AC input source
Provide repeatable AC input voltage and frequency conditions for electronic, industrial, and power-electronics DUTs.
Recommended for this solution

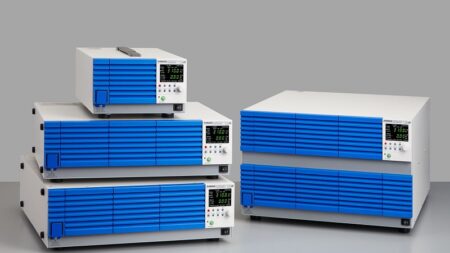

Compact programmable AC power source for controlled voltage, frequency, and AC-input conditions in bench and automated testing.
View PCR-MA Series

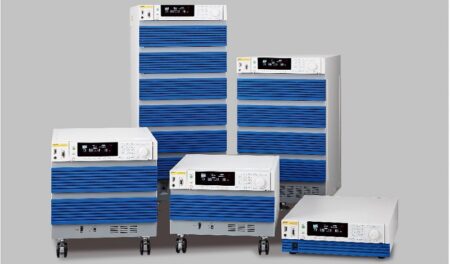

Programmable AC/DC power platform for higher-capacity, multi-phase, power-line, and selected regenerative AC test configurations.
View PCR-WEA / WEA2AC operating-range evaluation
Evaluate DUT behavior across controlled AC voltage and frequency conditions rather than relying on fixed utility mains.
Recommended for this solution
Compact programmable AC power source for controlled voltage, frequency, and AC-input conditions in bench and automated testing.
View PCR-MA Series
Programmable AC/DC power platform for higher-capacity, multi-phase, power-line, and selected regenerative AC test configurations.
View PCR-WEA / WEA2Repeatable mains-event simulation
Reproduce programmed power-line events such as voltage dips, increases, interruptions, and related input disturbances for repeatable DUT evaluation.
Recommended for this solution
Programmable AC/DC power platform for higher-capacity, multi-phase, power-line, and selected regenerative AC test configurations.
View PCR-WEA / WEA2Higher-capacity AC source systems
Create larger-capacity single- or multi-phase AC test environments for power electronics, industrial equipment, and other higher-power DUTs.
Recommended for this solution
Programmable AC/DC power platform for higher-capacity, multi-phase, power-line, and selected regenerative AC test configurations.
View PCR-WEA / WEA2AC regeneration where supported
Use compatible regenerative AC source configurations when the application requires controlled AC power while also managing energy returned by the test system.
Recommended for this solution
Programmable AC/DC power platform for higher-capacity, multi-phase, power-line, and selected regenerative AC test configurations.
View PCR-WEA / WEA2AC Power Selection
AC power-source selection depends on more than nominal voltage. Define phase configuration, source capacity, frequency, waveform or disturbance needs, crest/inrush behavior, and automation requirements.
AC Power Test Architectures
Programmable AC sources can reproduce controlled voltage and frequency conditions, power-line disturbances, and higher-capacity multi-phase environments. Select the architecture from the DUT input and the conditions you need to simulate.
Use a programmable AC source when the primary requirement is repeatable control of the DUT input voltage, frequency, and test sequence.
Programmed voltage and frequency variation helps define the DUT operating window and behavior outside nominal mains conditions.
Disturbance simulation makes line events repeatable so the DUT response can be compared across development and validation cycles.
Higher-power AC systems require phase configuration, kVA, current, facility input, and cooling to be considered together.
Regenerative AC capability is configuration-specific. Confirm that the exact source model and facility interface support the required return-power behavior.
AC Source Selection
The same AC source family may cover several workflows, but phase configuration, capacity, frequency range, disturbance functions, and regenerative options vary by model and configuration.
| AC test requirement | Key selection factor | Typical use |
|---|---|---|
| General programmable AC | Voltage, frequency, capacity | Bench and automated AC-input testing |
| Voltage / frequency variation | Programmable range and transition behavior | Input-tolerance and operating-range evaluation |
| Power-line disturbance simulation | Event/sequencing capability | Dips, increases, interruptions, and mains-condition testing |
| Multi-phase / high-power AC | Phase configuration and kVA | Larger industrial and power-electronics DUTs |
| Regenerative AC | Supported regenerative configuration and facility interface | Energy-returning AC test systems where applicable |
Frequently Asked Questions
A programmable AC source provides controlled and repeatable voltage and frequency conditions. Depending on the model, it can also reproduce line disturbances or programmed sequences that utility power alone cannot provide repeatably.
Define the DUT input voltage, frequency, phase configuration, apparent-power requirement, current and inrush behavior, power factor, disturbance profile, duty cycle, and required automation interfaces.
It is the controlled reproduction of events such as voltage dips, increases, interruptions, or programmed line variations so the DUT response can be evaluated under repeatable conditions.
Use a multi-phase or higher-capacity source when the DUT input configuration or power demand cannot be served by a single-phase lower-capacity source. Confirm phase-to-phase/phase-to-neutral voltage, kVA, current, and facility input requirements.
Regenerative operation is relevant when the test system needs to absorb returned energy and the selected AC source configuration supports that behavior. Regenerative capability is configuration-specific and should be confirmed for the exact model.
Application Support
Share the DUT input voltage, frequency, phase configuration, VA/kVA, current and inrush behavior, disturbance profile, duty cycle, regenerative requirement, and automation needs. Denkei Americas can help narrow the appropriate KIKUSUI AC power architecture.
