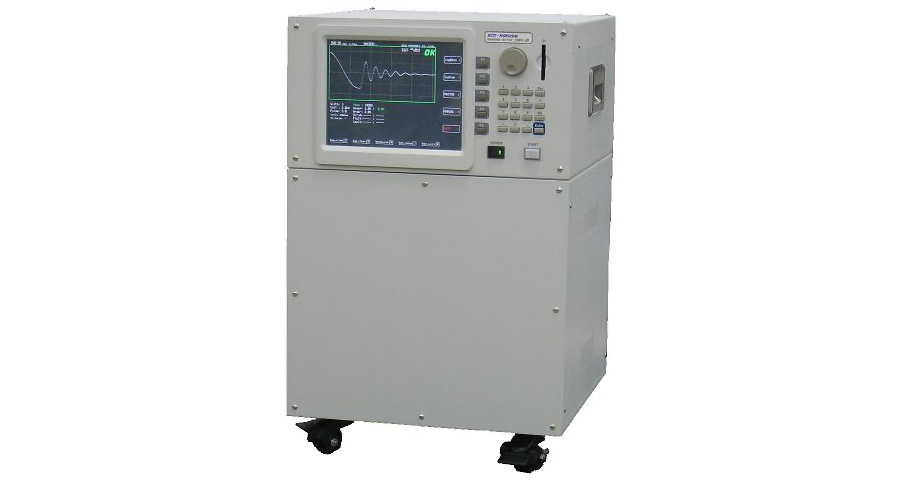

15 kV Impulse Winding Testing for High-Voltage Coil Evaluation
The ECG KOKUSAI DWX-15 and DWX-15PD extend the DWX impulse winding tester platform to applications requiring test voltages up to 15 kV.
Both models compare the transient response of a test winding with a stored master waveform to evaluate winding condition and insulation-related differences. The DWX-15PD adds microwave-based partial discharge detection for applications requiring additional discharge evaluation.
1 to 15 kV
Applied-voltage range
100 MHz
High-speed waveform sampling
8,192-byte
Sampling memory
50 µH or Higher
Test inductance range
Judgment functions include comparison of waveform area, waveform differential area, and discharge quantity together with a winding-insulation dielectric-breakdown-voltage test function.
Parallel I/O and RS-232C support external control and test-data communication, while an Ethernet adapter is listed by the manufacturer as an option.
For broader winding-test selection,
see the Impulse Winding & Coil Testing Solutions →
Up to 15 kV Impulse Testing
Provides an applied-voltage range from 1,000 V to 15,000 V in 200 V steps for high-voltage winding evaluation.
100 MHz Waveform Sampling
8-bit sampling at 10 ns intervals provides a 100 MHz sampling rate for capturing impulse-response waveforms.
8,192-Byte Sampling Memory
High-density waveform acquisition supports detailed comparison between stored master and test waveforms.
50 µH or Higher Inductance Range
Designed for winding and coil testing at inductances of 50 µH or higher.
Multiple Judgment Methods
Supports waveform-area, waveform-difference-area, and discharge-quantity comparison together with winding insulation breakdown-voltage testing.
Master Waveform Storage
Stores 196 master types internally and supports expansion to 700 types using Compact Flash Memory.
Production Control Interfaces
Parallel I/O and RS-232C support external test control and data communication. Ethernet is available as a manufacturer-listed option.
DWX-15PD Partial Discharge Detection
The DWX-15PD adds a narrow-band microwave antenna for detecting electromagnetic activity associated with partial discharge.
Need partial-discharge evaluation at lower impulse voltage? See the ECG KOKUSAI DWX-05PD .
High-voltage winding impulse testing
Coil insulation evaluation
Master-to-test waveform comparison
Winding dielectric breakdown evaluation
High-voltage production inspection
Partial discharge evaluation with DWX-15PD
DWX-15 / DWX-15PD Model Comparison
| Specification | DWX-15 | DWX-15PD |
|---|---|---|
| Applied Voltage | 1,000 V to 15,000 V | 1,000 V to 15,000 V |
| Voltage Step | 200 V | 200 V |
| Test Inductance Range | 50 µH or higher | 50 µH or higher |
| Sampling Speed / Memory | 8-bit / 10 ns (100 MHz) / 8,192-byte | |
| Sampling Range | 10 ranges: -4, -3, -2, -1, 0, 1, 2, 3, 4, 5 | |
| Input Circuit | Resistive voltage divider, 5 MΩ | |
| Display | 8.4-inch TFT color LCD | |
| Waveform Display Range | 512 × 256 | |
| Judgment | Master waveform comparison using waveform area, waveform differential area, and discharge quantity; winding insulation dielectric breakdown voltage test | |
| Master Waveform Memory | 196 types internally; up to 700 types using Compact Flash Memory | |
| Microwave Sensor Antenna | Not equipped | Narrow-band microwave patch antenna |
| Recommended PD Detection Distance | — | Within approximately 30 cm of the test object |
| Antenna / Cable | — | 80 × 80 × 10 mm / 2 m cable |
| External Interfaces | Parallel I/O, RS-232C, printer port; Ethernet adapter optional | |
| Operating Temperature | 0°C to 40°C | |
| Power Supply | AC 100 / 115 / 220 / 240 V ±5%, 50/60 Hz, 2 A | |
| Dimensions | 364 (W) × 517 (H) × 360 (D) mm, excluding carrying handle | |
Applied-voltage and voltage-step specifications are stated by the manufacturer for a 1 kΩ resistive load.
