Repetitive Impulse Surge Testing for Motor Insulation Evaluation

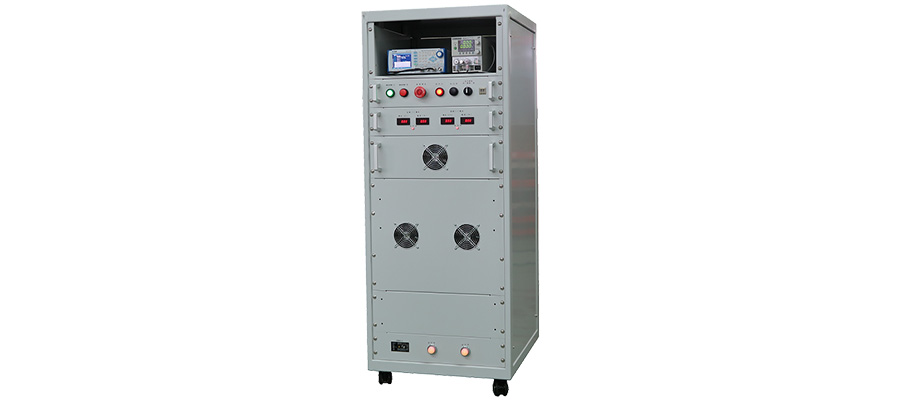

The ECG KOKUSAI IPX-05BP-PDIV is a repetitive impulse surge power supply designed for evaluating surge-resistant wires, nanocomposite wires, motor insulation materials, and other samples exposed to inverter-like surge conditions.
The system continuously applies repetitive impulse voltage to the test sample, enabling long-duration evaluation under simulated inverter-surge conditions. It supports both capacitive and inductive loads for insulation and material reliability testing.
Up to 5,000 V
Unipolar 0-to-peak output
Up to 10,000 Vp-p
Two-pole peak-to-peak output
1 Hz to 20 kHz
Repetitive output frequency
≤100 ns
No-load pulse rise time

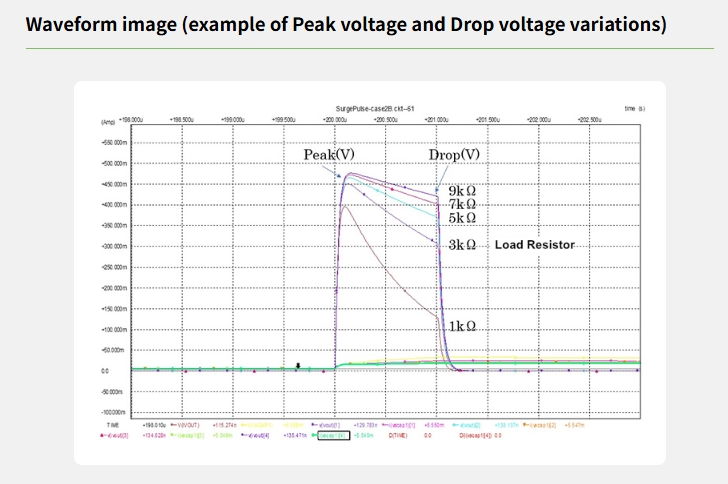

Available waveform modes include surge, square, pseudo-inverter, and rectangular waveforms. The rectangular waveform is identified by the manufacturer as compliant with IEC TS 63263.
A built-in overcurrent protection circuit supports continuous breakdown testing. Partial-discharge testing during continuous operation can also be performed with the MW-95 partial-discharge sensor, with a separate monitor such as an oscilloscope required.
For broader partial-discharge and motor-insulation test selection,
see the Partial Discharge Testing Solutions →
Repetitive Inverter-Surge Simulation
Continuously applies repetitive impulse voltage to simulate inverter-surge conditions for long-duration insulation and material evaluation.
Up to 5,000 V Unipolar Output
Provides unipolar impulse output from 0 to a maximum peak voltage of 5,000 V.
Up to 10,000 V Peak-to-Peak
Two-pole operation supports a maximum peak-to-peak output of 10,000 V.
1 Hz to 20 kHz Repetitive Output
Supports repetitive impulse output across a wide frequency range from 1 Hz to 20 kHz.

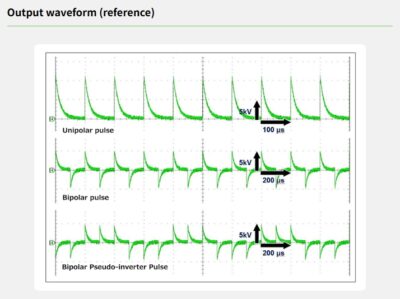

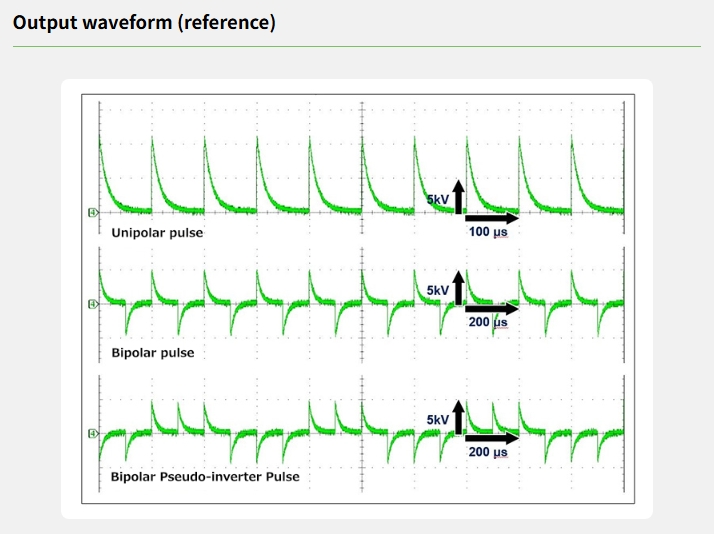

Multiple Output Waveforms
Supports surge, square, pseudo-inverter, and rectangular waveforms for different insulation and material evaluation requirements.
Fast Pulse Rise Time
Provides a no-load pulse rise time of 100 ns or less for high-speed impulse evaluation.
Continuous Breakdown Testing
A built-in overcurrent protection circuit enables continuous-operation breakdown testing.
Partial Discharge Test Support
Continuous partial-discharge testing can be performed using the MW-95 partial-discharge sensor. A separate monitoring instrument such as an oscilloscope is required.
EV drive motor surge tolerance testing
Motor coil magnet-wire development evaluation
Surge-resistant wire evaluation
Nanocomposite wire evaluation
Insulation coating withstand-voltage testing
Insulation film material reliability testing
IPX-05BP-PDIV Specifications
| Unipolar Output Voltage | 0-to-peak maximum 5,000 V |
|---|---|
| Two-Pole Output Voltage | Peak-to-peak maximum 10,000 V |
| Output Frequency | Repeated output: 1 Hz to 20 kHz |
| Pulse Rise Time | 100 ns or less without load |
| Load Capacity | Approx. 500 pF; manufacturer states customization is available according to requirements |
| Waveforms | Surge, Square, Pseudo-Inverter, Rectangular |
| Rectangular Waveform Standard | Compliant with IEC TS 63263 |
| Test Modes | PDIV Test (Single) / VT Test (Continuous) |
| Protection | Built-in overcurrent protection circuit |
| Partial Discharge Testing | Continuous PD testing supported with MW-95 partial-discharge sensor; separate monitor such as an oscilloscope required |
