The NetVision SVP-01-VND is a USB 3.0 parallel image recorder for displaying, recording, and analyzing camera and image-sensor video, with real-time analysis, I2C control, and firmware-update capabilities.
The NetVision SVP-01-VND is a parallel image recorder designed to display, record, and analyze camera-module and image-sensor video through a dedicated USB 3.0 Vendor-class interface.
In Vendor mode, the SVP-01-VND works with NetVision software and a dedicated driver to capture parallel video and perform real-time analysis such as histogram and vectorscope display. I2C communication also enables control of connected cameras and SerDes devices from the same evaluation environment.
The board supports 8-, 16-, 24-, and 32-bit parallel video input, pixel clocks up to approximately 150 MHz, configurable image clipping, I2C, GPIO, and variable interface voltages for camera and sensor development.
Compatible NetVision deserializer boards can also be connected for automotive camera and SerDes evaluation, including FPD-Link III and GMSL environments.

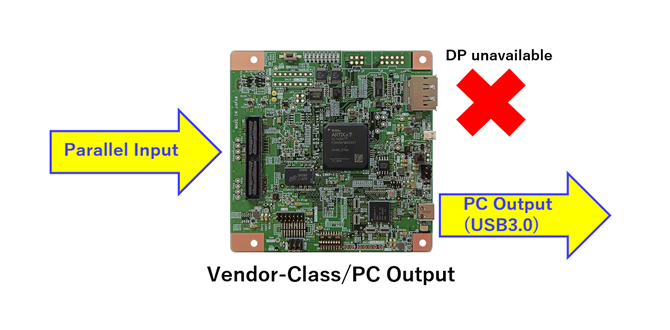

Displays and records parallel-interface video using a dedicated USB 3.0 Vendor-class driver and NetVision software.
Vendor mode supports real-time histogram and vectorscope display for image evaluation, debugging, and camera-system analysis.
Supports input resolutions up to 8190 × 4095 pixels together with clipping of selected image areas.
Supports parallel camera signals with pixel-clock frequencies up to approximately 150 MHz.
Supports configurable 8-, 16-, 24-, and 32-bit parallel video input for different camera modules and image sensors.
Supports YUV422 8-bit, RGB24, and RAW pixel formats for camera, sensor, and image-processing evaluation.
Provides I2C communication at 100, 200, or 400 kHz for controlling connected cameras, sensors, and SerDes devices.
Provides up to 16-bit GPIO with configurable input and output direction for integration with target devices and peripherals.
Updater mode enables firmware updates for connected microcontrollers, FPGAs, and other onboard devices through USB.
Supports compatible NetVision deserializer boards for FPD-Link III, GMSL, and other automotive camera evaluation environments.
Need automotive camera connectivity? Pair the SVP-01-VND with a compatible NetVision deserializer board for camera and SerDes recording and analysis. View NetVision SerDes Interface Boards →
| Video Input Interface | Parallel video signal; I/O voltage 1.8 to 3.3 V |
|---|---|
| Video Output Interface | USB 3.0 Vendor Class; Windows only |
| Maximum Input Resolution | 8190 × 4095 pixels; maximum width in 8-bit mode is 4094 pixels |
| Maximum Output Bit Rate | Within 3.0 Gbps |
| Synchronization Signals | VSYNC, HSYNC, Pixel Clock |
| Pixel Clock | Up to approximately 150 MHz |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW |
| Input Bit Width | 8 / 16 / 24 / 32 bit |
| I2C | 1 channel; 100 / 200 / 400 kHz |
| GPIO | Up to 16-bit; input / output direction configurable every 8 bits |
| GPIO + Video Input | Maximum combined width: 32 bits |
| Input Power | USB bus power; +5 V (4.75–5.5 V) |
| Typical Operating Current | 0.72 A |
| I/O Voltage | VDDL = 1.8 to 3.3 V |
| Connection Board Power | VDDH = 1.2 to 3.6 V; 3.3 V output available |
| Other Functions | Image clipping; optional synchronization-wiring connector |
| Interface Connector | 50 + 10 pin, 2.54 mm pitch pin header |
| FPGA | AMD Xilinx Artix-7 XC7A35T |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Infineon EZ-USB FX3 |
| Dimensions | 101.6 × 101.6 × 25.7 mm, including 10 mm spacer height |
| Windows Video Software | SVIMon / SVIView |
| I2C Control Software | SVICtl |
