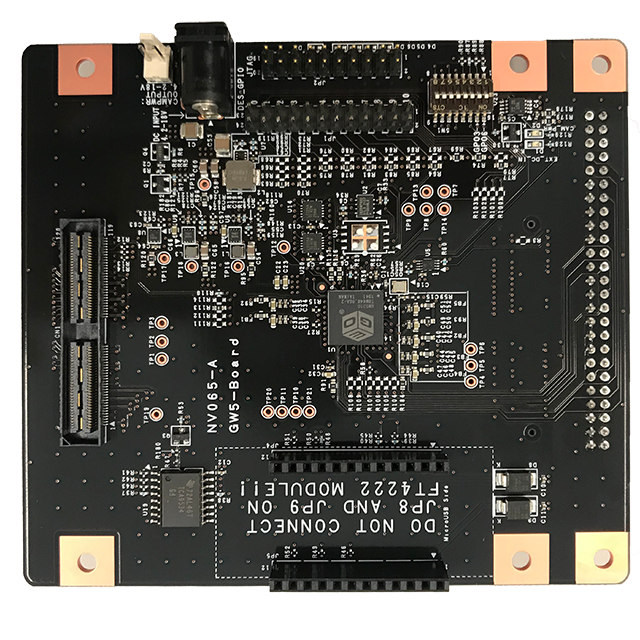

The NetVision GW5 Board is an indie Semiconductor GW5-series ISP development board for automotive camera prototyping, with MIPI CSI-2 input/output, RAW-to-YUV processing, HDR, lens-distortion correction, and SerDes camera integration.
The NetVision GW5 Board is an automotive camera ISP development platform based on the indie Semiconductor GW5 series Camera Video Processor, designed for rapid prototyping and evaluation of advanced camera-processing systems.
The board supports image-processing functions including High Dynamic Range (HDR), lens-distortion correction, and RAW-to-YUV conversion. It can also capture MIPI embedded data together with video for camera-system development and validation.
The GW5 Board provides an ISP-control interface compatible with indie evaluation-board workflows, allowing ISP configuration and firmware updates using indie tools through an onboard FTDI FT4222 interface.
By combining the board with NetVision deserializer and monitoring boards, engineers can evaluate automotive cameras using FPD-Link III, GMSL, and GVIF interfaces and route processed video to USB, HDMI, or DisplayPort monitoring environments.
Supports GW5-series Camera Video Processor configurations for automotive camera image processing and ISP development.
Supports High Dynamic Range image-processing workflows for automotive cameras operating across challenging lighting conditions.

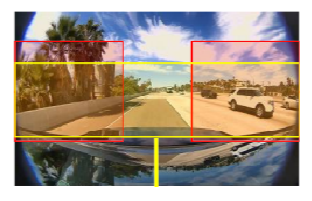

Uses GW5 image-processing capabilities for correcting lens distortion in wide-angle and automotive camera applications.
Processes RAW camera input through the GW5 ISP and outputs converted YUV video for downstream monitoring and evaluation.
Provides two MIPI CSI-2 camera inputs, each supporting four data lanes at up to 1.5 Gbps per lane.

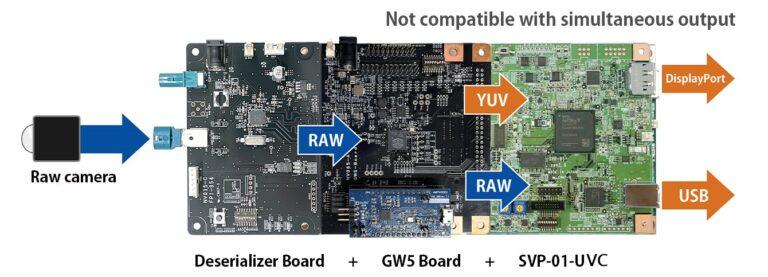

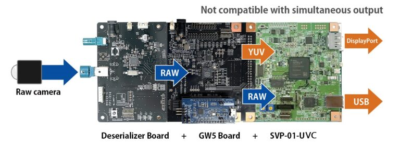

Supports dual MIPI CSI-2 output as well as one 16-bit parallel output for integration with different monitoring-board configurations.

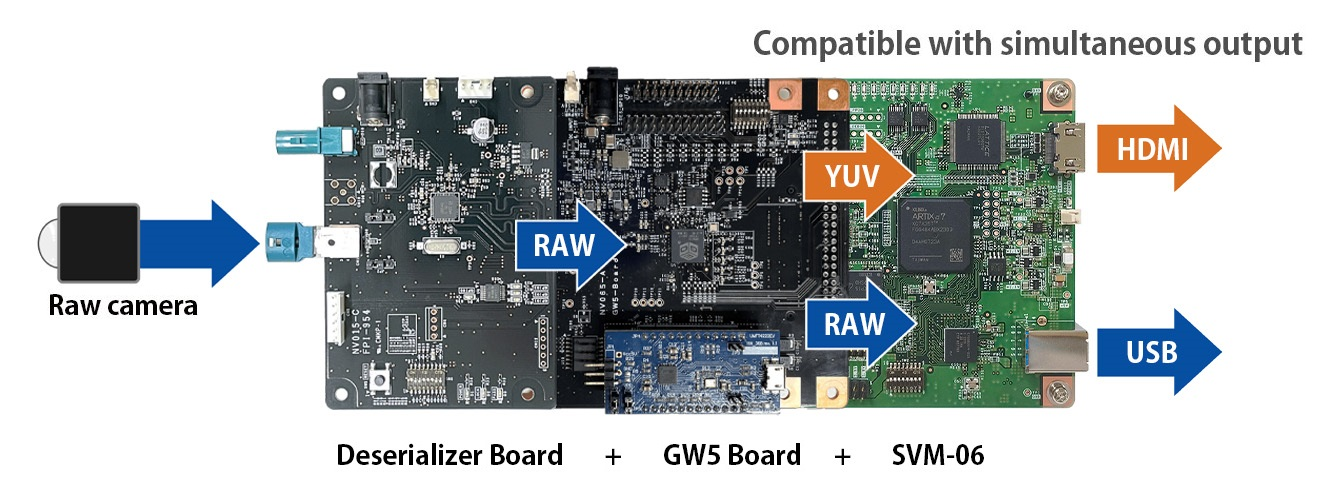

Two internal video-stream slots allow configurations that output original RAW video and ISP-processed YUV video in parallel workflows.
RAW and processed YUV streams can be assigned to different MIPI Virtual Channels for simultaneous downstream monitoring.
The ISP-control interface is compatible with indie evaluation-board workflows for ISP settings, image-quality adjustment, and firmware updates.
Combines with NetVision deserializer boards to support automotive camera interfaces including FPD-Link III, GMSL, and GVIF.
Availability: The GW5 Board is listed by NetVision as a made-to-order automotive ISP product. Configuration and availability may depend on the required GW5 ISP and camera interface. Discuss your application with Denkei Americas →
| Product Type | Automotive Camera ISP Development Board |
|---|---|
| ISP Platform | indie Semiconductor GW5 series |
| Supported GW5 Options | GW5410, GW5310, GW5210 |
| Image Input | 2 × MIPI CSI-2 |
| MIPI Input Configuration | 4 lanes per input; up to 1.5 Gbps per lane |
| MIPI Video Output | 2 × MIPI CSI-2 |
| MIPI Output Configuration | 4 lanes per output; up to 1.5 Gbps per lane |
| Parallel Video Output | 1 × 16-bit parallel |
| Parallel Interface Clock | 150 MHz |
| Image Processing | HDR processing, lens-distortion correction, RAW-to-YUV conversion |
| Video Stream Functions | Dual-stream output; MIPI Virtual Channel configurations supported |
| SerDes Integration | Supports compatible NetVision deserializer boards for FPD-Link III, GMSL, and GVIF camera interfaces |
| ISP Control | Compatible with indie evaluation-board control workflows |
| USB / I2C Interface | FTDI FT4222 module |
| Serial Communication | I2C, SPI |
| I/O Voltage | DC 1.8 V |
| Power Supply | DC 4.2 to 18 V, center-positive 2.1 / 5.5 mm plug |
| Camera Power | Input power can also be supplied to the connected camera through the board |
| Dimensions | 101.6 × 111.6 mm |
| Availability | Made-to-order |
