The NetVision SVL-03-UVC is a high-speed MIPI CSI-2 monitoring and capture board for camera and image-sensor evaluation. It supports USB 3.2 Gen 2, DisplayPort output, up to 1.5 Gbps per lane, and automotive camera development with compatible SerDes interfaces.

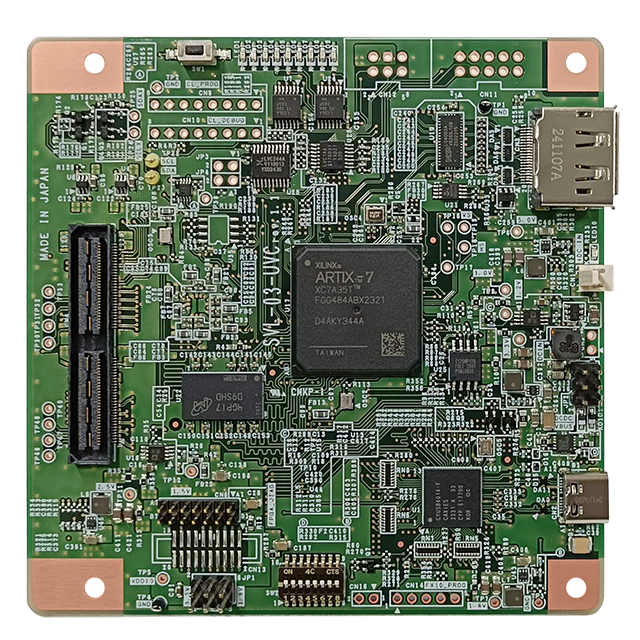

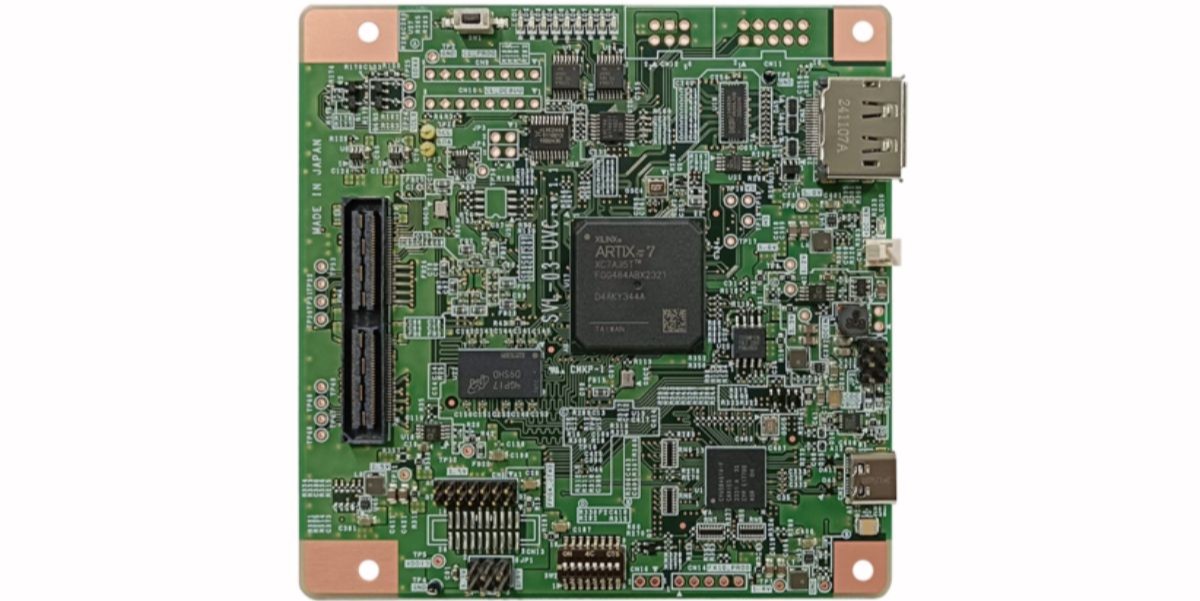

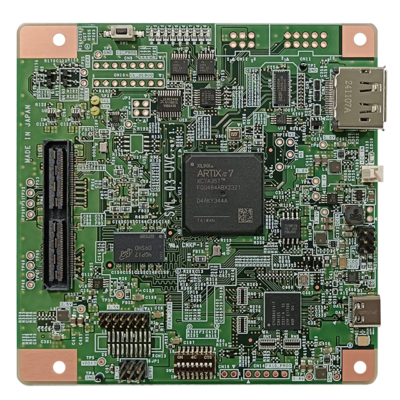

The NetVision SVL-03-UVC is a high-bandwidth MIPI CSI-2 monitoring and capture board for recording, displaying, and evaluating camera and image-sensor video signals.

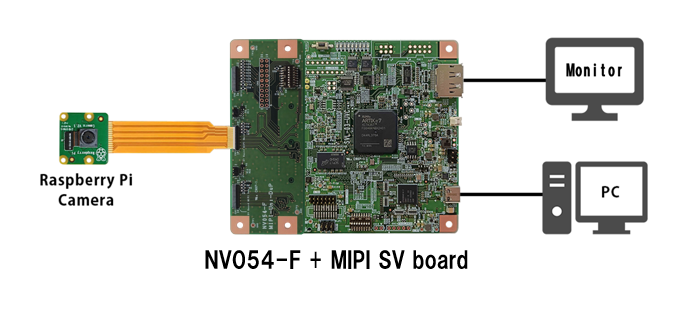

MIPI CSI-2 video can be captured through USB 3.2 Gen 2 / Gen 1 or displayed directly through DisplayPort 1.1a. The standard configuration supports four MIPI data lanes with a transfer rate of up to 1.5 Gbps per lane.
The SVL-03-UVC combines Artix-7 and CrossLink FPGAs to support functions including embedded data, multiple virtual channels, image clipping, test-pattern output, I2C control, GPIO, and synchronization.

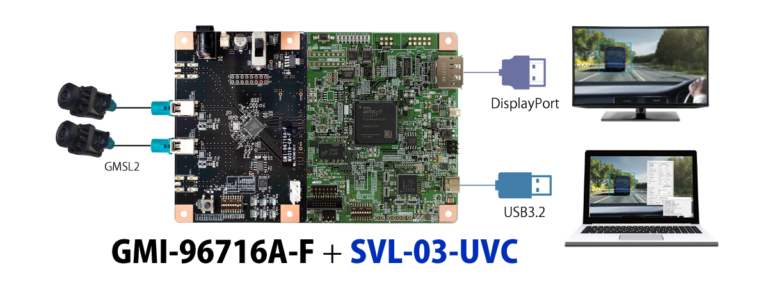

It can also be combined with compatible NetVision SerDes interface boards for automotive camera evaluation, including systems using high-bandwidth in-vehicle deserializers.
Supports MIPI D-PHY CSI-2 input with one to four standard data lanes and data rates from 20 to 1500 Mbps per lane. The interface supports both continuous and non-continuous clock operation.

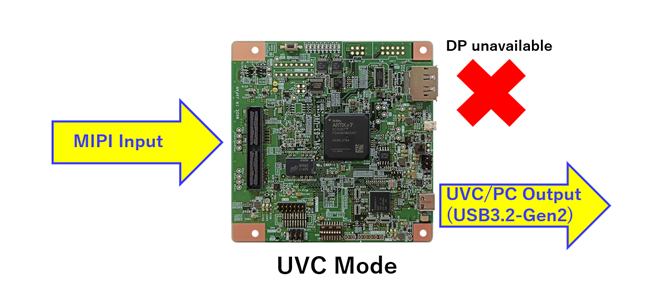

Captures MIPI video through USB 3.2 Gen 2 or Gen 1 using a UVC-compatible workflow, with bandwidth up to 6.0 Gbps in Gen 2 mode and up to 3.0 Gbps in Gen 1 mode.

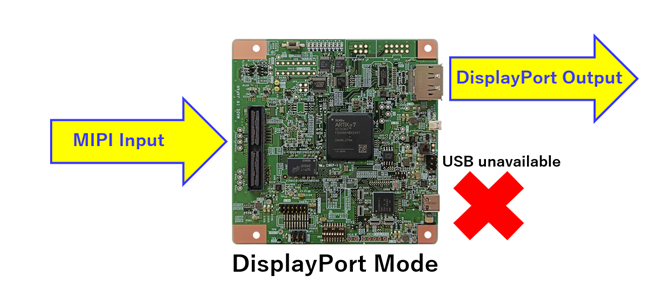

Provides DisplayPort 1.1a video output with standard resolutions up to 3840 × 2160 at 30 fps for direct monitoring of camera and image-sensor signals.
Supports YUV422 8-bit, RGB24, and RAW8, RAW10, RAW12, RAW16, and RAW20 pixel formats for a range of camera and CMOS image-sensor evaluation workflows.
Artix-7 and CrossLink FPGAs provide support for multiple virtual channels and embedded-line data together with test-pattern output and image-clipping functions.
Supports simultaneous capture from two sensors and synchronized capture using multiple SVL-03-UVC boards for multi-camera development and evaluation.
Includes one I2C channel with selectable communication frequencies and 16-bit GPIO with configurable input and output direction for camera and peripheral control.
Supports use with compatible NetVision deserializer boards for high-bandwidth automotive camera and in-vehicle video-interface evaluation.
Need to connect an automotive SerDes interface? NetVision offers interface boards for GMSL, FPD-Link III, GVIF2, and related camera-development configurations. View NetVision SerDes Interface Boards →
| Video Input Interface | MIPI D-PHY CSI-2 video signal; continuous and non-continuous clock supported |
|---|---|
| Standard MIPI Configuration | 4 data lanes + 1 clock lane |
| Custom MIPI Configuration | Up to 8 data lanes + 2 clock lanes; supports either 2 inputs or 1 input + 1 output |
| MIPI Data Lanes | 1 to 4 lanes in standard configuration |
| Data Rate per Lane | 20 to 1500 Mbps |
| Video Output Interface | USB 3.2 Gen 2 / Gen 1 (Windows UVC driver); DisplayPort 1.1a |
| Maximum Input Resolution | 8190 × 4095 pixels |
| Maximum UVC Output | 8190 × 4095 pixels; within 6.0 Gbps in Gen 2 mode and within 3.0 Gbps in Gen 1 mode |
| DisplayPort Output | Up to 3840 × 2160 at 30 fps |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, RAW20 |
| Synchronization | Frame Start / Frame End; synchronous signal input and output |
| I2C | 1 channel; 100 / 200 / 400 kHz / 1 MHz |
| GPIO | 16-bit; input / output direction configurable for each bit |
| Other Functions | Test-pattern output, image clipping, automatic I2C transmission at startup, Virtual Channel, Embedded Line |
| FPGA | AMD Xilinx Artix-7 XC7A35T; Lattice CrossLink LIF-MD6000 |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Infineon EZ-USB FX10 |
| USB Connector | USB 3.2 Gen 2 Type-C |
| Power Input | USB bus power or dedicated 2-pin connector |
| Dimensions | 101.6 × 101.6 × 24.0 mm, including 10 mm spacer height |
| Windows Software | NVCap, SVLCtl, SVLUpdater |
