The NetVision SVI-09-MIPI is a MIPI CSI-2 image recorder and video analyzer for recording, displaying, and analyzing camera signals through USB 3.0 Vendor Class, with Virtual Channel, Embedded Data, I2C, and FPGA plug-in support.
The NetVision SVI-09-MIPI is a MIPI CSI-2 image recorder and video-analysis platform designed for recording, displaying, and analyzing camera and CMOS image-sensor signals.
MIPI CSI-2 video is captured through a dedicated USB 3.0 Vendor-class interface for Windows. In addition to image recording and display, the SVI-09-MIPI provides MIPI Video Analyzer functionality for detailed evaluation of MIPI frames and camera-interface behavior.

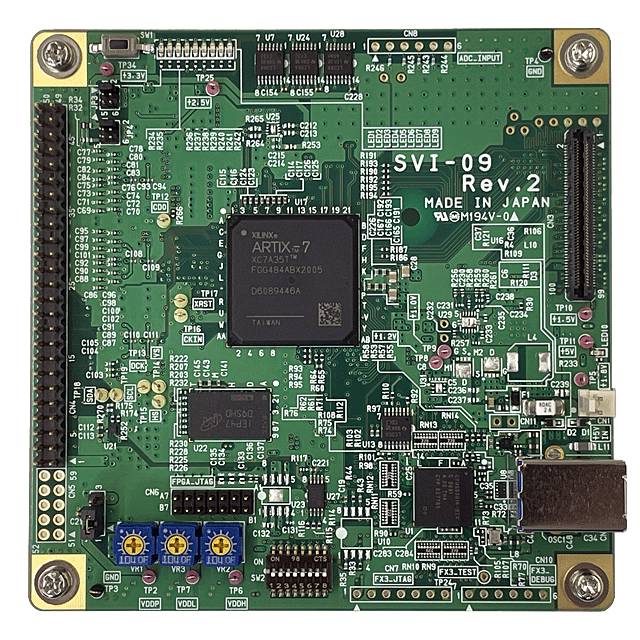

The board combines AMD Artix-7 and Lattice CrossLink FPGAs and supports Embedded Data, multiple Virtual Channels, image clipping, lane detection, resolution and frame-rate detection, and synchronized multi-camera acquisition.
I2C and GPIO interfaces enable camera and SerDes control, while FPGA plug-in functionality provides additional flexibility for customized image-processing and validation applications.
Records and displays MIPI CSI-2 camera and image-sensor signals through a dedicated USB 3.0 Vendor-class interface.
Provides dedicated MIPI frame-analysis functionality for evaluating camera-interface behavior and investigating signal and image issues beyond basic video monitoring.
Supports one to four standard MIPI data lanes at up to 1.5 Gbps per lane with Continuous and Non-Continuous Clock operation.
Supports input resolutions up to 8190 × 4095 pixels, with approximately 140 fps input at 1920 × 1080 under specified conditions.
Supports multiple MIPI CSI-2 Virtual Channels and allows selection of the video channel used for display and analysis.
Captures Embedded Data together with MIPI video for camera development, debugging, and validation applications.
NetVision plug-in software provides histogram, vectorscope, waveform, GPIO, and other image-verification functions.
Supports dual-sensor acquisition and synchronized capture using multiple boards for multi-camera development environments.
Provides I2C at 100, 200, or 400 kHz together with 16-bit GPIO for camera, SerDes, and peripheral-device control.
Additional FPGA resources and frame memory support customized development and application-specific processing through NetVision's FPGA plug-in architecture.
Supports compatible NetVision 6 Gbps-class automotive deserializer boards for in-vehicle camera and SerDes evaluation.
Need an automotive camera interface? Combine the SVI-09-MIPI with a compatible NetVision deserializer board for GMSL, FPD-Link, GVIF, and related camera-development environments. View NetVision SerDes Interface Boards →
| Video Input Interface | MIPI D-PHY CSI-2; Continuous and Non-Continuous Clock supported |
|---|---|
| Standard MIPI Configuration | 4 data lanes + 1 clock lane |
| Custom MIPI Configuration | Up to 8 data lanes + 2 clock lanes; 2 inputs or 1 input + 1 output available by customization |
| Video Output Interface | USB 3.0 Vendor Class; Windows |
| Maximum Input Resolution | 8190 × 4095 pixels |
| Monitoring Bandwidth | Up to 6.0 Gbps |
| Recording Bandwidth | Up to 3.0 Gbps |
| Maximum Output Resolution | 8190 × 4095 pixels; within 3.0 Gbps |
| Synchronization Signals | Frame Start / Frame End; Line Start / Line End |
| MIPI Data Lanes | 1 to 4 lanes in standard configuration |
| Maximum Data Rate per Lane | 1500 Mbps |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, RAW20 |
| I2C | 1 channel; 100 / 200 / 400 kHz |
| GPIO | 16-bit; input / output direction configurable for each bit |
| Analysis / Detection Functions | Lane detection, input-resolution detection, frame-rate detection, display Virtual Channel selection, video and analysis-signal capture |
| Interface Connector | 120-pin QSH-060-01-L-D-A; connection to NetVision 60-pin MIPI interfaces supported |
| FPGA | AMD Xilinx Artix-7 XC7A35T + Lattice CrossLink LIF-MD6000 |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Infineon EZ-USB FX3 |
| Power Input | USB bus power or dedicated 2-pin 5 V connector |
| Dimensions | 101.6 × 101.6 × 25.7 mm, including 10 mm spacer height |
| Windows Software | SVICtl, SVIMon, SVIView |
