The NetVision SVP-01-UVC is a parallel video monitoring and capture board with USB 3.0 UVC or DisplayPort output for camera modules, CMOS image sensors, and automotive SerDes evaluation.

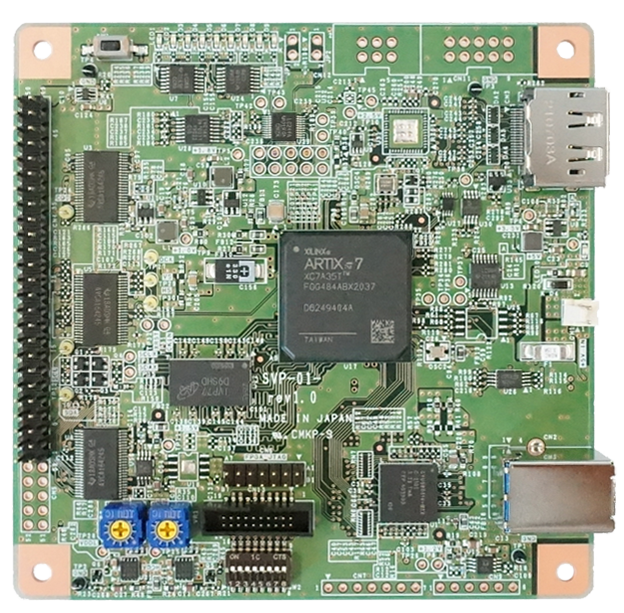

The NetVision SVP-01-UVC is a parallel video monitoring and capture board for displaying, recording, and evaluating camera-module and image-sensor signals.

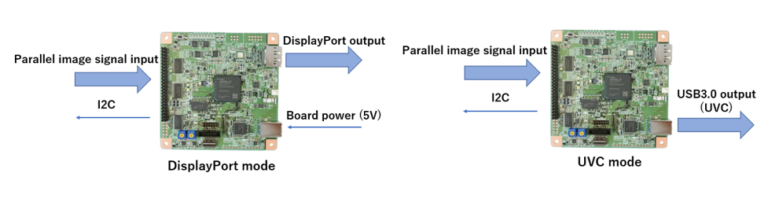

Parallel video signals can be captured to a Windows or Linux PC through USB 3.0 UVC or displayed directly through DisplayPort 1.1a. The output mode is selectable between USB and DisplayPort depending on the development and evaluation environment.
The SVP-01-UVC supports 8-, 16-, 24-, and 32-bit parallel video input together with YUV422, RGB24, and RAW pixel formats. I2C, GPIO, variable target-side voltage outputs, test-pattern generation, and image clipping provide additional flexibility for camera and sensor development.

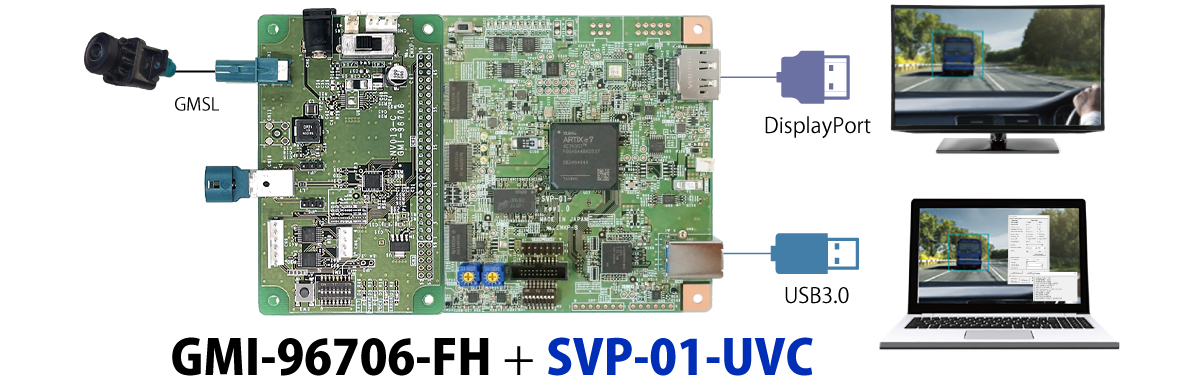

Compatible NetVision deserializer boards can be connected directly to the SVP-01-UVC, enabling evaluation of automotive cameras using interfaces such as FPD-Link III, GMSL, and GVIF2.
Captures parallel camera and image-sensor signals with configurable 8-, 16-, 24-, or 32-bit input for development, debugging, and validation.
Operates as a UVC-compatible capture device on Windows and Linux, allowing use with NetVision NVCap or compatible third-party UVC software.
Provides DisplayPort 1.1a output for direct video monitoring, including standard 720p/60 fps and 1080p/60 or 30 fps configurations.
Supports parallel pixel clocks up to approximately 150 MHz for high-speed camera-module and CMOS image-sensor evaluation.
Supports VSYNC, HSYNC, and Pixel Clock together with Embedded Sync (BT.656) and Data Enable configurations.
Supports YUV422 8-bit, RGB24, and RAW video formats for a range of camera, image-sensor, and image-processing applications.
Provides configurable VDDL from 1.8 to 3.3 V and VDDH from 1.2 to 3.6 V for interfacing with different sensors and connection boards.
Includes I2C operation at 100, 200, or 400 kHz and up to 16-bit GPIO for sensor, SerDes, and peripheral control.
Supports compatible NetVision deserializer boards for FPD-Link III, GMSL, GVIF2, and other automotive camera-interface environments.
Includes test-pattern output and configurable image clipping, together with automatic I2C initialization from onboard ROM.
Upgrading from an SVM-03? The SVP-01-UVC is the successor to the SVM-03 and replaces HDMI output with DisplayPort while adding updated synchronization and power-interface capabilities.
| Video Input Interface | Parallel video signal; I/O voltage 1.8 to 3.3 V |
|---|---|
| Video Output Interface | USB 3.0 UVC (Windows / Linux) or DisplayPort 1.1a |
| Output Mode | USB and DisplayPort are selectable modes; simultaneous output is not supported |
| DisplayPort Output | 720p at 60 fps; 1080p at 60 or 30 fps |
| Maximum Input Resolution | 8190 × 4095 pixels |
| Typical Input Performance | Approximately 60 fps at 1920 × 1080; approximately 120 fps at 1280 × 720 |
| Maximum Output Bit Rate | UVC mode: within 3.0 Gbps; DisplayPort mode: within 4.3 Gbps |
| Synchronization Signals | VSYNC, HSYNC, Pixel Clock; Embedded Sync (BT.656) and Data Enable supported |
| Pixel Clock | Up to approximately 150 MHz |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW |
| Input Bit Width | 8 / 16 / 24 / 32 bit |
| I2C | 1 channel; 100 / 200 / 400 kHz |
| GPIO | Up to 16-bit; input / output direction configurable every 8 bits |
| Target I/O Voltage | VDDL = 1.8 to 3.3 V |
| Connection Board Power | VDDH = 1.2 to 3.6 V; 3.3 V output available |
| Other Functions | Test-pattern output, image clipping, automatic I2C configuration transmission at startup |
| Interface Connector | 50 + 10 pin, 2.54 mm pitch pin header |
| FPGA | AMD Xilinx Artix-7 XC7A35T |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Cypress EZ-USB FX3 |
| Power Input | USB bus power or dedicated 2-pin 5 V connector |
| Dimensions | 101.6 × 101.6 × 25.7 mm, including 10 mm spacer height |
| Windows Video Software | NVCap |
| I2C Control Software | SVMCtl |
