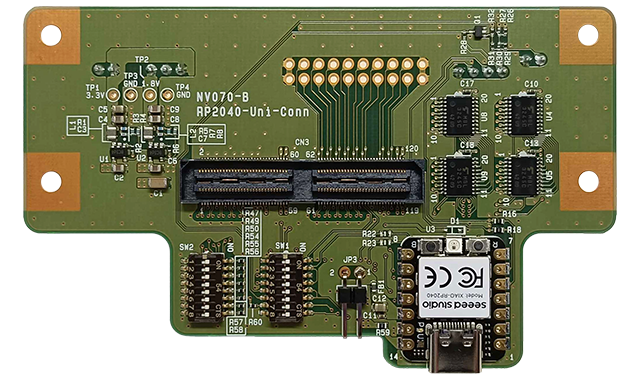

The NetVision NV070-B is an RP2040-based MIPI connection expansion board for customizable I2C, GPIO, and standalone control. Used with NetVision SV and SerDes boards, it can simulate sensor responses, initialize cameras and SerDes devices, and support evaluation environments where PC connections are limited.
- XIAO RP2040 for customer-configurable control firmware
- I2C master control and I2C slave-response emulation
- GPIO control and I/O expansion
- Standalone operation without an SV board
- MicroPython I2C master and Pico SDK I2C slave sample firmware
- Camera-power detection circuit for 5 to 16 V environments
- Camera ECU startup verification
- Sensor-detection and I2C-response emulation
- Camera and SerDes initialization control
- Standalone evaluation during EMC testing
- GPIO, interrupt, reset, and status-signal simulation
| Model | NV070-B / MIPI-Uni-Conn |
|---|---|
| MCU | XIAO RP2040 |
| Main functions | I2C control, I2C slave response, GPIO control, standalone operation |
| Supported I/O voltage | DC 1.8 to 3.3 V |
| Board dimensions | 101.6 × 62.0 mm |
| SV board connection | CN4 |
| Target / SerDes connection | CN3 |
| USB connection | XIAO RP2040 USB Type-C |
| Other | 5 to 16 V camera-power detection circuit and connector |
