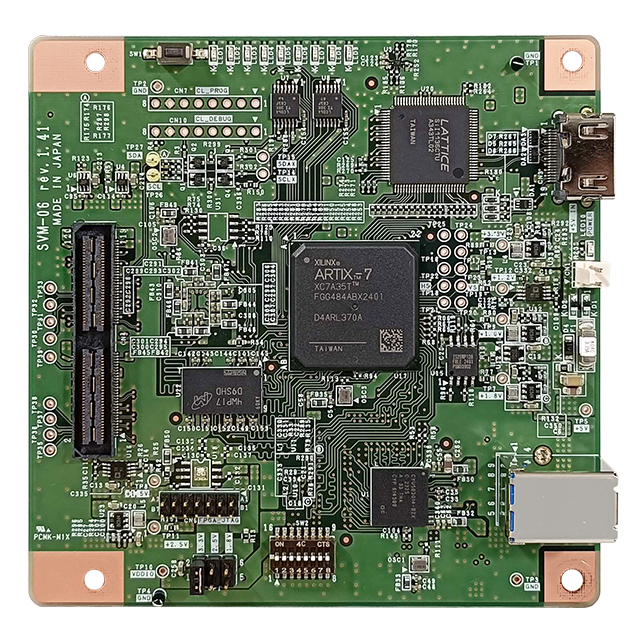

The NetVision SVM-06 is a MIPI CSI-2 monitoring and capture board with simultaneous HDMI and USB 3.0 UVC output for camera, CMOS image-sensor, and automotive video evaluation.
The NetVision SVM-06 is a MIPI CSI-2 monitoring and capture board for real-time evaluation of camera modules, CMOS image sensors, and automotive video systems.
MIPI CSI-2 video can be displayed directly through HDMI while simultaneously being captured to a PC through USB 3.0 UVC. This allows engineers to visually monitor camera output and record the same video stream for development, debugging, and validation.
The SVM-06 supports multiple MIPI CSI-2 Virtual Channels, Embedded Line data, image clipping, test-pattern output, I2C control, GPIO, and synchronization functions for advanced camera-development environments.
It can also support simultaneous acquisition from two image sensors and synchronized capture using multiple SVM-06 boards for multi-camera and around-view development.
Supports MIPI D-PHY CSI-2 input using one to four standard data lanes with configurable data rates from 20 to 1500 Mbps per lane.

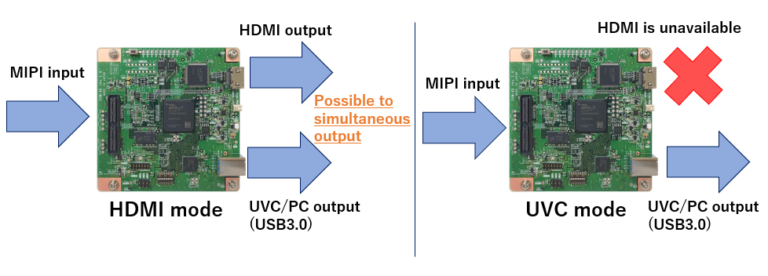

Displays incoming MIPI camera video on an HDMI monitor while simultaneously capturing the same signal to a PC through USB 3.0 UVC.
Supports HDMI 1.4 output at standard resolutions up to 3840 × 2160 at 30 fps for direct real-time camera and sensor monitoring.
Operates as a UVC device for USB 3.0 video capture, with effective in-frame video data rates up to 3.0 Gbps.
Supports YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, and RAW20 for camera-module and CMOS image-sensor evaluation.
Supports multiple MIPI CSI-2 Virtual Channels and Embedded Line data for advanced camera and multi-stream development.
Supports simultaneous acquisition from multiple sensors and synchronized capture configurations using multiple SVM-06 boards.
Provides one I2C channel and 16-bit GPIO with individually configurable input and output direction for sensor and peripheral control.
Supports both Continuous Clock and Non-Continuous Clock MIPI CSI-2 operation for compatibility with different camera and sensor designs.

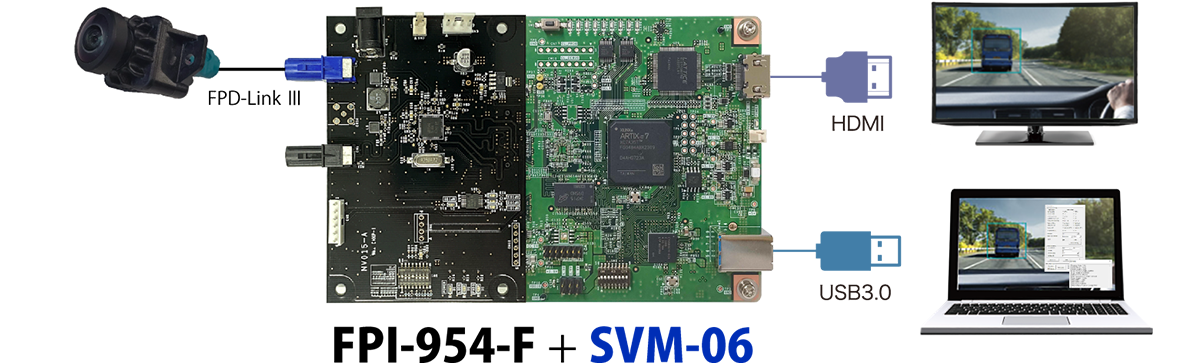

Can be combined with compatible NetVision automotive deserializer boards for high-bandwidth in-vehicle camera and SerDes evaluation.
Evaluating a GMSL or FPD-Link camera interface? Combine the SVM-06 with a compatible NetVision SerDes interface board. View NetVision SerDes Interface Boards →
| Video Input Interface | MIPI D-PHY CSI-2 video signal; Continuous and Non-Continuous Clock supported |
|---|---|
| Standard MIPI Configuration | 4 data lanes + 1 clock lane |
| Custom MIPI Configuration | Up to 8 data lanes + 2 clock lanes; supports 2 inputs or 1 input + 1 output |
| Video Output Interface | UVC (USB Video Class); HDMI 1.4 |
| Maximum Input Resolution | 8190 × 4095 pixels; supported width depends on the number of MIPI lanes |
| Maximum UVC Output | 8190 × 4095 pixels; effective in-frame data rate within 3.0 Gbps |
| HDMI Output | Up to 3840 × 2160 at 30 fps |
| MIPI Data Lanes | 1 to 4 lanes in standard configuration |
| Data Rate per Lane | 20 to 1500 Mbps |
| Clock Rate | 10 to 750 MHz |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, RAW20 |
| Synchronization | Frame Start / Frame End |
| I2C | 1 channel; 100 / 200 / 400 kHz |
| GPIO | 16-bit; input / output direction configurable for each bit |
| Other Functions | Test-pattern output, image clipping, automatic I2C transmission at startup, Virtual Channel, Embedded Line |
| Interface Connector | 120-pin QSH-060-01-L-D-A |
| FPGA | AMD Xilinx Artix-7 XC7A35T; Lattice CrossLink LIF-MD6000 |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Infineon EZ-USB FX3 |
| USB Connector | USB 3.0 Type-B |
| HDMI Chip | Sil1136 |
| Power Input | USB bus power or dedicated 2-pin 5 V connector |
| Dimensions | 101.6 × 101.6 × 25.7 mm, including 10 mm spacer height |
| Windows Software | NVCap, SVMCtl, SVMUpdater |
