MIPI Recording & Analysis

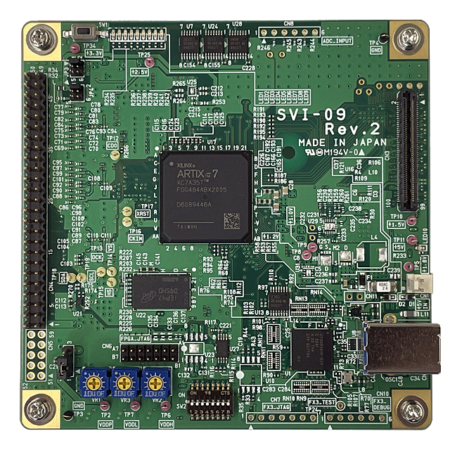

NetVision SVI-09-MIPI MIPI Image Recorder
MIPI CSI-2 recording and analysis platform for capturing, displaying, recording, and inspecting camera or image-sensor data.
View SVI-09-MIPICamera · Image · Protocol · Optical · Automotive
Camera Inspection & Image Analysis Solutions
Explore NetVision and ASTRODESIGN technologies for camera capture, image analysis, protocol validation, optical MTF measurement, and automotive camera evaluation.
Start with what you need to inspect or validate, then review the technologies that fit that stage of the camera-development workflow.
FIND YOUR SOLUTION
What do you need to evaluate in the camera system?
Select the inspection or validation task that best matches your development requirement.
Selected solution
MIPI Camera Inspection
MIPI CSI-2 camera evaluation
MIPI Camera Recording & Inspection
Record, inspect, and analyze MIPI CSI-2 camera and image-sensor signals for development, debugging, image evaluation, and data analysis.
Typical applications
- MIPI CSI-2 camera development
- CMOS image-sensor evaluation
- Camera image recording and analysis
- Camera and ECU debugging
Recommended for this solution
Recommended Products
Selected solution
Parallel Camera Inspection
Parallel camera and sensor evaluation
Parallel Camera Monitoring & Inspection
Monitor, record, and analyze parallel-interface camera signals for camera-module development, image evaluation, debugging, and inspection.
Typical applications
- Parallel camera-module evaluation
- CMOS image-sensor inspection
- Live camera monitoring
- Parallel image recording and analysis
Recommended for this solution
Recommended Products
Recording & Analysis
NetVision SVP-01-VND Parallel Image Recorder
Parallel-video recording and analysis platform for inspecting captured image data and camera-interface behavior.
View SVP-01-VND
Live Monitoring

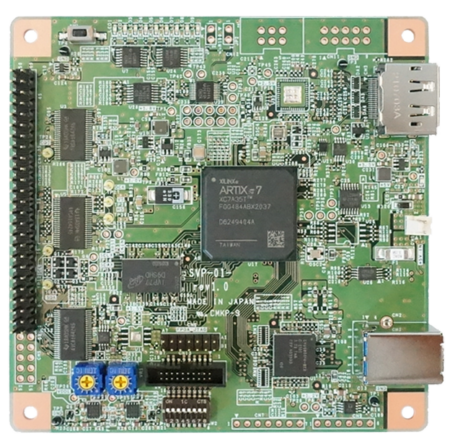

NetVision SVP-01-UVC Parallel Monitoring Board
Parallel-camera monitoring solution with selectable USB 3.0 UVC or DisplayPort output for live camera and sensor evaluation.
View SVP-01-UVC
Selected solution
Protocol & Error Analysis
System-level interface validation
Protocol, Error & Abnormal-Condition Analysis
Evaluate camera and video-interface behavior beyond image capture through protocol analysis, abnormal-condition testing, and long-duration validation.
Typical applications
- Camera-interface protocol analysis
- Error and abnormal-condition testing
- Long-duration validation
- ECU and ADAS interface development
Recommended for this solution
Recommended Products
Protocol & System Validation
ASTRODESIGN LS-8500 Universal Video Generator / Analyzer
Configurable generator and analyzer platform for protocol analysis, abnormal-condition evaluation, long-duration logging, and camera or ECU interface validation.
View LS-8500
Selected solution
Camera Optical & MTF Evaluation
Quantitative optical camera evaluation
Camera & Lens MTF Measurement
Quantitatively evaluate camera and lens spatial-resolution performance using real-time MTF measurement, multidirectional analysis, and camera image-quality measurement.
Typical applications
- Camera spatial-resolution evaluation
- Lens performance measurement
- Focus, iris, and zoom adjustment
- Machine vision and broadcast camera evaluation
Recommended for this solution
Recommended Products
Optical & MTF Evaluation

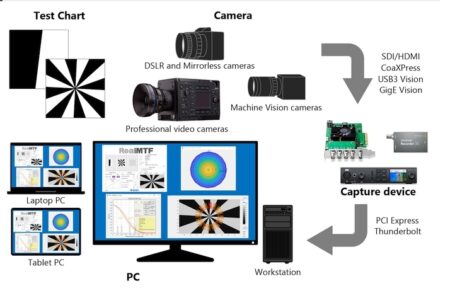

ASTRODESIGN IP-8030 / IP-8030-MV 8K Real-Time MTF Measuring Device
Real-time camera and lens MTF measurement system supporting multidirectional analysis, ISO 12233 s-SFR workflows, and camera noise measurement.
View IP-8030 / IP-8030-MV
Selected solution
Automotive Camera Evaluation
Automotive camera-system development
Automotive Camera & ECU Evaluation
Build automotive camera evaluation workflows from SerDes interface conversion through camera-interface analysis and system-level validation.
Typical applications
- Automotive camera development
- ADAS camera and ECU evaluation
- SerDes camera-interface workflows
- Camera-to-ECU system validation
Recommended for this solution
Recommended Products
SerDes Connection Layer

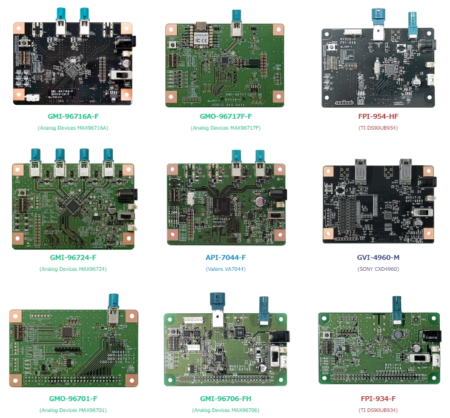

NetVision SerDes Interface Board
SerDes interface-board family for connecting automotive camera video interfaces with MIPI or parallel-based development and evaluation hardware.
View SerDes Interface Boards
System-Level Validation
ASTRODESIGN LS-8500 Universal Video Generator / Analyzer
Configurable platform for automotive camera, ECU, ADAS, protocol, abnormal-condition, and system-level interface validation workflows.
View LS-8500Camera Evaluation Workflow
From Camera Signal to System Performance
Camera-system evaluation can involve several layers. Select technologies according to whether you need image capture and analysis, protocol validation, optical measurement, or automotive system evaluation.
- 1. Capture & Analyze Record or monitor MIPI and parallel camera signals and inspect the resulting image data.
- 2. Protocol & Error Validation Evaluate communication behavior, abnormal conditions, protocol operation, and long-duration system performance.
- 3. Optical & MTF Evaluation Measure camera and lens spatial-resolution performance quantitatively using MTF-based evaluation.
- 4. Automotive System Evaluation Combine SerDes connectivity with camera-interface and system-level validation for automotive camera and ECU workflows.
Application Support
Not sure which camera evaluation path fits your application?
Share your camera interface, resolution, signal format, SerDes environment, recording requirement, protocol-validation need, or optical measurement objective. Denkei Americas can help narrow the appropriate evaluation workflow.
