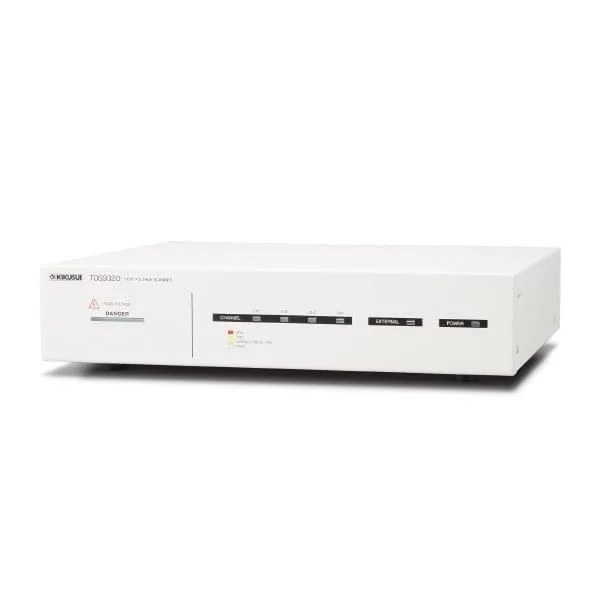

KIKUSUI TOS9320 High-Voltage Scanner
The KIKUSUI TOS9320 expands electrical safety test systems by routing high-voltage test output from the main tester to multiple test points without requiring manual reconnection between points.
One TOS9320 provides four switching channels. Each channel can be independently configured as High, Low, or Open, allowing test voltage and return connections to be routed according to the required test point configuration. A contact-check function helps verify connection to the test point before testing.
4 Channels
Independent High, Low, or Open setting for each channel
Up to 16 Channels
Connect up to four TOS9320 scanners to a compatible TOS93-series tester
5 kVac / 7.2 kVdc
Maximum scanner operating voltage
Contact Check
Monitor connection between scanner channels and test points
When connected directly to a compatible TOS9300 Series tester, scanner settings can be controlled by the tester. The rear-panel CONTROLLER INTERFACE also enables external control, allowing the TOS9320 to serve as the switching element in automated systems using other compatible KIKUSUI withstand-voltage and insulation- resistance testers.
Four High-Voltage Switching Channels
One TOS9320 provides four independently configurable channels for routing high-voltage safety-test connections to multiple test points.
High / Low / Open Selection
Each channel can be assigned High, Low, or Open, providing flexible routing of the high-voltage and return sides of the connected safety tester.
Expandable to 16 Channels
Up to four TOS9320 units can be connected to a compatible TOS93-series tester, creating a 16-channel multi-point test system.
Contact Check Function
The scanner can check contact with connected test points, helping detect connection problems before or during automated multi-point testing.
Color-Coded Channel Indication
Front-panel indicators show each channel state: red for High, green for Low, orange during contact checking, and off when the channel is Open.
TOS9300 Series Integration
A dedicated MINI DIN interface connects the scanner to the TOS9300 Series for coordinated scanner control and multi-point electrical safety testing.
External Controller Interface
A rear-panel D-sub 25-pin CONTROLLER INTERFACE allows an external controller to assign channel states independently of direct TOS9300 Series control.
Legacy Tester System Integration
External control enables the TOS9320 to be incorporated with other compatible KIKUSUI withstand-voltage and insulation- resistance testers, including TOS5300 Series configurations.
Rack-Mount Support
KIKUSUI rack-mount brackets are available for integration of the TOS9320 into production and automated safety-test systems.
Multi-point AC withstand-voltage testing
Multi-point DC withstand-voltage testing with a compatible tester
Multi-point insulation-resistance testing
Automated electrical safety inspection systems
Production-line testing of electronic devices with multiple test points
Automated switching between high-voltage test connections
TOS9320 Specifications
| Product Type | High-Voltage Scanner |
|---|---|
| Number of Channels | 4 |
| Channel States | High / Low / Open |
| Maximum Operating Voltage — AC | 5 kV |
| Maximum Operating Voltage — DC | 7.2 kV |
| Contact Check | Available |
| Maximum Scanner Connections | 4 units / 16 channels |
| Channel Assignment |
Scanner 1: CH1–CH4 Scanner 2: CH5–CH8 Scanner 3: CH9–CH12 Scanner 4: CH13–CH16 |
| TOS93-Series Interface | MINI DIN 8-pin |
| External Controller Interface | D-sub 25-pin |
| External Control Input | Low-active; minimum input pulse width 5 ms |
| External Control Output | Open collector, 4.5 Vdc to 30 Vdc |
| External Control Output Current | 400 mA maximum total |
| AC Input | 100 Vac to 240 Vac nominal (90 Vac to 250 Vac allowable) |
| Power Consumption | 50 VA maximum |
| Dimensions | 430 × 88 × 370 mm (16.93 × 3.46 × 14.57 in) |
| Weight | Approx. 8 kg (17.6 lb) |
How the TOS9320 Fits into a Safety Test System
The TOS9320 is a high-voltage switching device. It does not generate the hipot or insulation-resistance test voltage and does not replace the electrical safety tester.
Safety Tester
Generates the test voltage and performs the measurement
TOS9320
Routes the tester connection among multiple test points
1 Scanner
Provides four switchable High / Low / Open channels
4 Scanners
Expand a compatible system to 16 scanner channels
With a TOS9300 Series tester, scanner control can be coordinated through the dedicated scanner interface. For other compatible KIKUSUI withstand-voltage or insulation-resistance testers, the TOS9320 can function as an externally controlled high-voltage switching unit.
