750 W Wide-Range DC Power for Low-Voltage, High-Current Testing

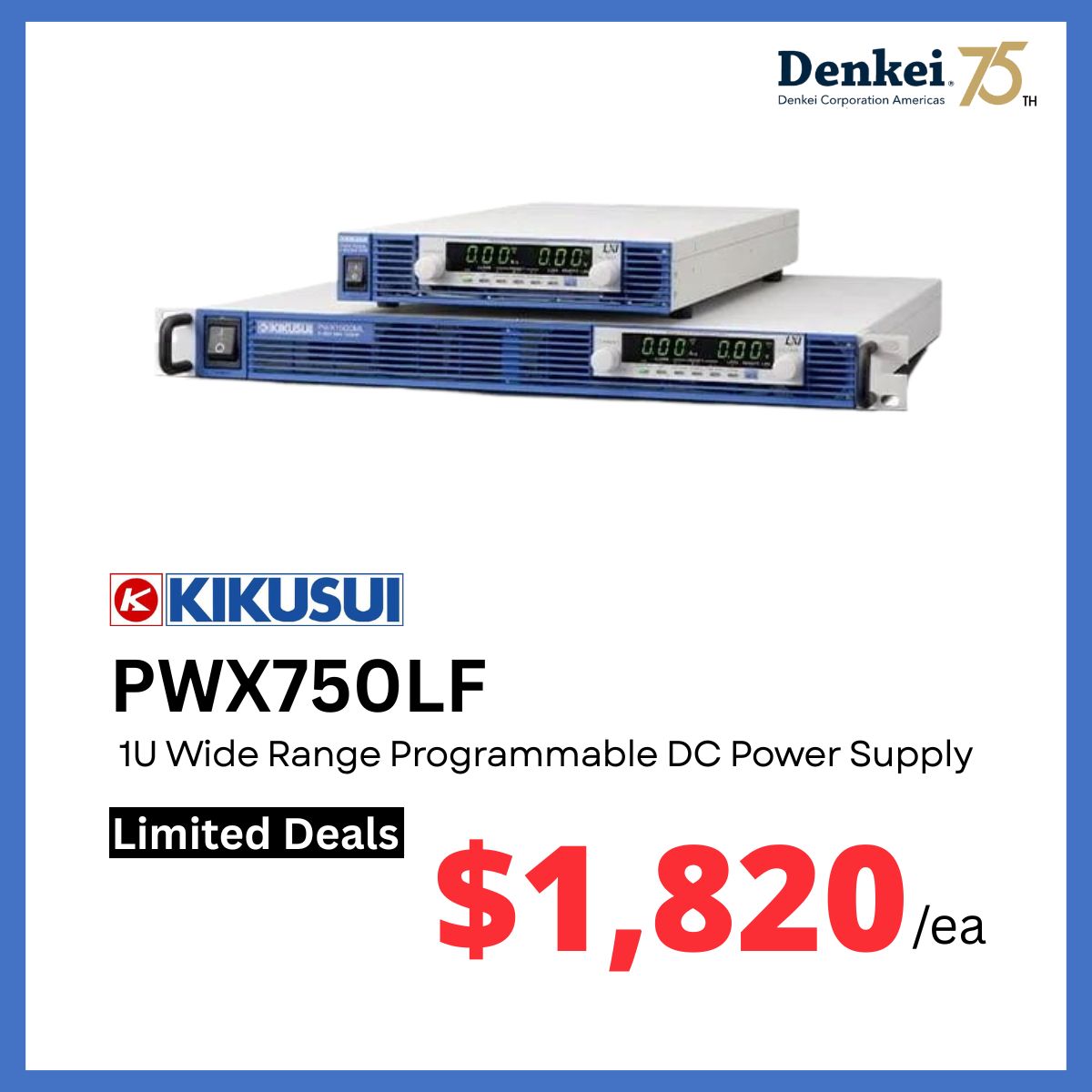

The KIKUSUI PWX750LF is a programmable CV/CC DC power supply rated for 750 W, 30 V, and 75 A, designed for applications that require substantial current at relatively low DC voltages.
Unlike a conventional single-range supply, the PWX750LF allows voltage and current combinations to be selected across a wide operating area while remaining within its 750 W output-power limit. This enables one supply to cover multiple low-voltage and high-current operating points for component evaluation, automotive electronics, battery-connected systems, and automated production testing.
750 W
Rated output power
30 V / 75 A
Low-voltage, high-current output capability
Wide-Range CV / CC
Flexible voltage and current combinations within the rated power envelope
LAN / USB / RS232C
Standard interfaces for remote and automated control
Its 1U rack-mount architecture, standard LXI-compatible LAN interface, VMCB multi-channel control capability, analog control connections, and master-slave parallel operation make the PWX750LF suitable for both standalone engineering work and integrated test systems.
30 V / 75 A / 750 W Output
The PWX750LF provides a rated output of 30 V, 75 A, and 750 W for low-voltage applications requiring substantial DC current.
Wide-Range CV/CC Operation
Voltage and current can be combined across a wide operating range within the 750 W power limit, reducing the need for multiple fixed-range power supplies.
1U Rack-Mount Design
A 43 mm-high chassis and front-to-rear cooling architecture support high-density integration into automated and multi-channel test racks.
LAN/LXI, USB, and RS232C
Standard digital interfaces support remote programming and monitoring. The LAN interface is compliant with LXI 1.3 Class C and includes an embedded web server.
Analog Programming and Monitoring
Rear-panel analog connections support external voltage and current programming, output on/off control, shutdown control, alarm clearing, and voltage/current monitor outputs.
Expandable Output Capacity
Up to four PWX750LF units of the same model can operate in master-slave parallel configuration. Up to two same-model units can also be connected in series.
Low-voltage, high-current electronic component evaluation
Automotive ECU and electronic-system power testing
Battery-connected DC source and power-system evaluation
LED and other DC-powered device testing
Automated production and inspection systems
Multi-channel rack-mounted R&D and validation systems
PWX750LF Specifications
| Output Type | Programmable DC, CV / CC automatic crossover |
|---|---|
| Rated Output Power | 750 W |
| Rated Output Voltage | 30 V |
| Rated Output Current | 75 A |
| Voltage Setting Range | 0 V to 31.5 V |
| Current Setting Range | 0 A to 78.75 A |
| Voltage Setting Accuracy | ±(0.05% of setting + 0.05% of rating) |
| Current Setting Accuracy | ±(0.5% of setting + 0.1% of rating) |
| Voltage Line Regulation | ±5 mV |
| Voltage Load Regulation | ±5 mV |
| Transient Response | 1 ms or less |
| Voltage Ripple Noise | 60 mV p-p / 8 mV rms |
| Remote Sensing Compensation | 1.5 V maximum per line |
| Nominal AC Input | 100 Vac to 240 Vac, 50 Hz to 60 Hz, single phase |
| AC Input Voltage Range | 85 Vac to 265 Vac |
| Interfaces | LAN, USB, RS232C |
| LAN Standard | LXI 1.3 Class C |
| Dimensions | 422.8 W × 43 H × 500 D mm |
| Maximum Dimensions | 485 W × 44 H × 580 D mm |
| Weight | Approx. 8 kg |
Wide-Range Output Operating Points
| 10 V | Up to 75 A |
|---|---|
| 12.5 V | Up to 60 A |
| 15 V | Up to 50 A |
| 20 V | Up to 37.5 A |
| 30 V | Up to 25 A |
Voltage and current combinations are limited by the PWX750LF's 750 W maximum output power.
Control, Expansion & Protection
| Operating Modes | Constant Voltage (CV) / Constant Current (CC) automatic crossover |
|---|---|
| Parallel Operation | Master-slave operation with up to four PWX750LF units including the master |
| Series Operation | Up to two same-model units; master-slave configuration is not used in series operation |
| LAN | 10Base-T / 100Base-TX Ethernet, LXI 1.3 Class C |
| LAN Protocols | VXI-11, HiSLIP, SCPI-RAW |
| USB | USB 2.0 Full Speed, USBTMC-USB488 |
| RS232C | Standard interface; optional RD-8P/9P adapter cable used for D-sub 9-pin connection |
| Command Standard | SCPI Specification 1999.0 / IEEE Std 488.2-1992 |
| External Voltage Programming | 0% to 100% of rated output; selectable 0 V to 5 V or 0 V to 10 V control range |
| External Current Programming | 0% to 100% of rated output; selectable 0 V to 5 V or 0 V to 10 V control range |
| Analog Monitor Outputs | Voltage monitor and current monitor; selectable 0 V to 5 V or 0 V to 10 V |
| Sequence Control | Sequence creation and control available using optional Wavy for PWX application software |
| Protection Functions | OVP, OVP2, OCP, UVL, OHP, OHP2, fan failure protection, sensing connection protection, low AC input protection, shutdown, power limit, and communication watchdog |
| Preset Memory | Up to three sets of voltage, current, OVP, OCP, and UVL settings |
