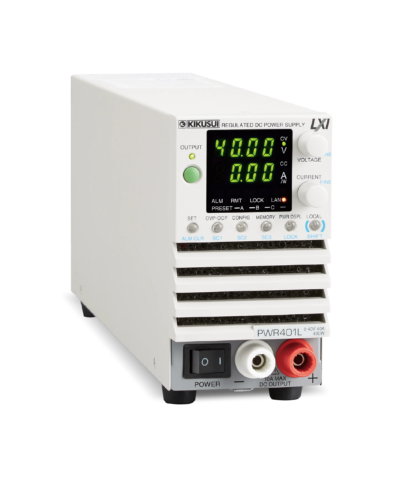

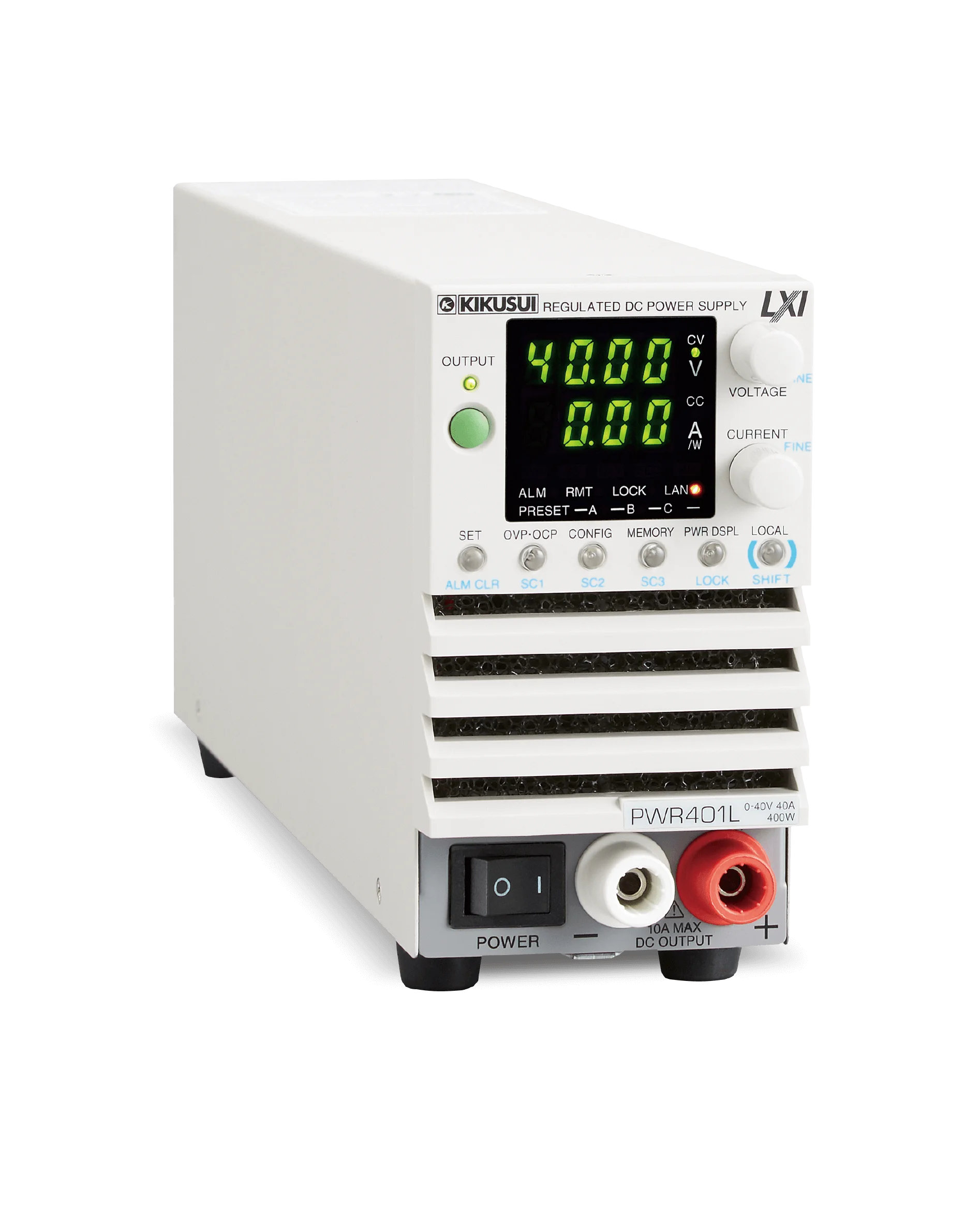

KIKUSUI PWR-01 Series Compact Wide-Range DC Power Supply
The KIKUSUI PWR-01 Series combines compact construction with wide-range CV/CC output for laboratory, production, and automated DC power applications.

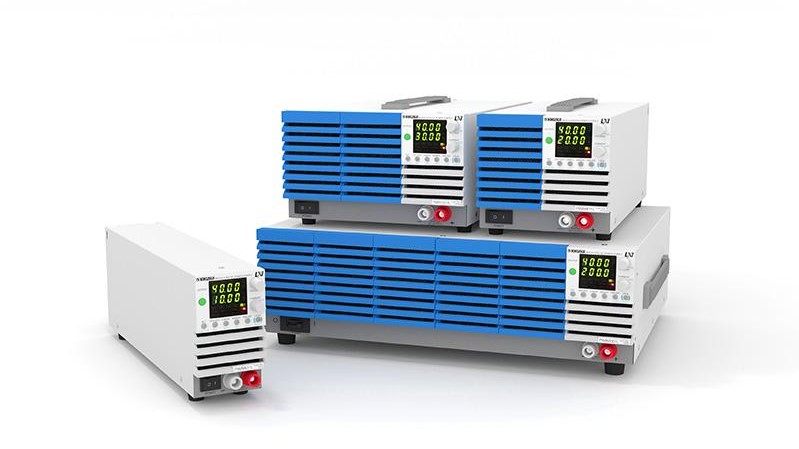

Four output power classes—400 W, 800 W, 1200 W, and 2000 W—are available across 40 V, 80 V, 240 V, and 650 V model families. Within each model's rated output power, a broad range of voltage and current combinations can be used, allowing one PWR-01 unit to cover operating conditions that may otherwise require multiple conventional fixed-range power supplies.
400 W to 2000 W
Four power classes for bench and system applications
40 V to 650 V
Four voltage classes with output current up to 200 A
Wide-Range Output
Broad voltage/current combinations within rated output power
LAN / LXI Standard
LAN, USB, and RS232C interfaces for automated system integration
Built-in sequence operation, synchronized triggering, the Virtual Multi-Channel Bus (VMCB), variable internal resistance, external analog control, universal AC input, and master-slave parallel operation extend the PWR-01 Series from general bench use into programmable multi-channel test and simulation systems.
Compact Wide-Range Output
A broad range of voltage and current settings can be combined within the rated output power, providing approximately three to four times the voltage/current operating range of a conventional fixed-range supply.
16-Model Selection
Four power classes from 400 W to 2000 W combine with 40 V, 80 V, 240 V, and 650 V output classes, with maximum rated current ranging up to 200 A.
CV / CC Regulation
Constant-voltage and constant-current operation provides controlled DC output across the PWR-01 wide-range operating area.
Built-In 64-Step Sequence
One sequence program with up to 64 steps can be stored in the power supply. After programming through remote commands, the stored sequence can be executed without a connected PC.
Variable Internal Resistance
In CV operation, the output voltage can be reduced according to output current and a programmed resistance value, enabling simple simulation of the internal resistance of rechargeable batteries, solar cells, and fuel cells.

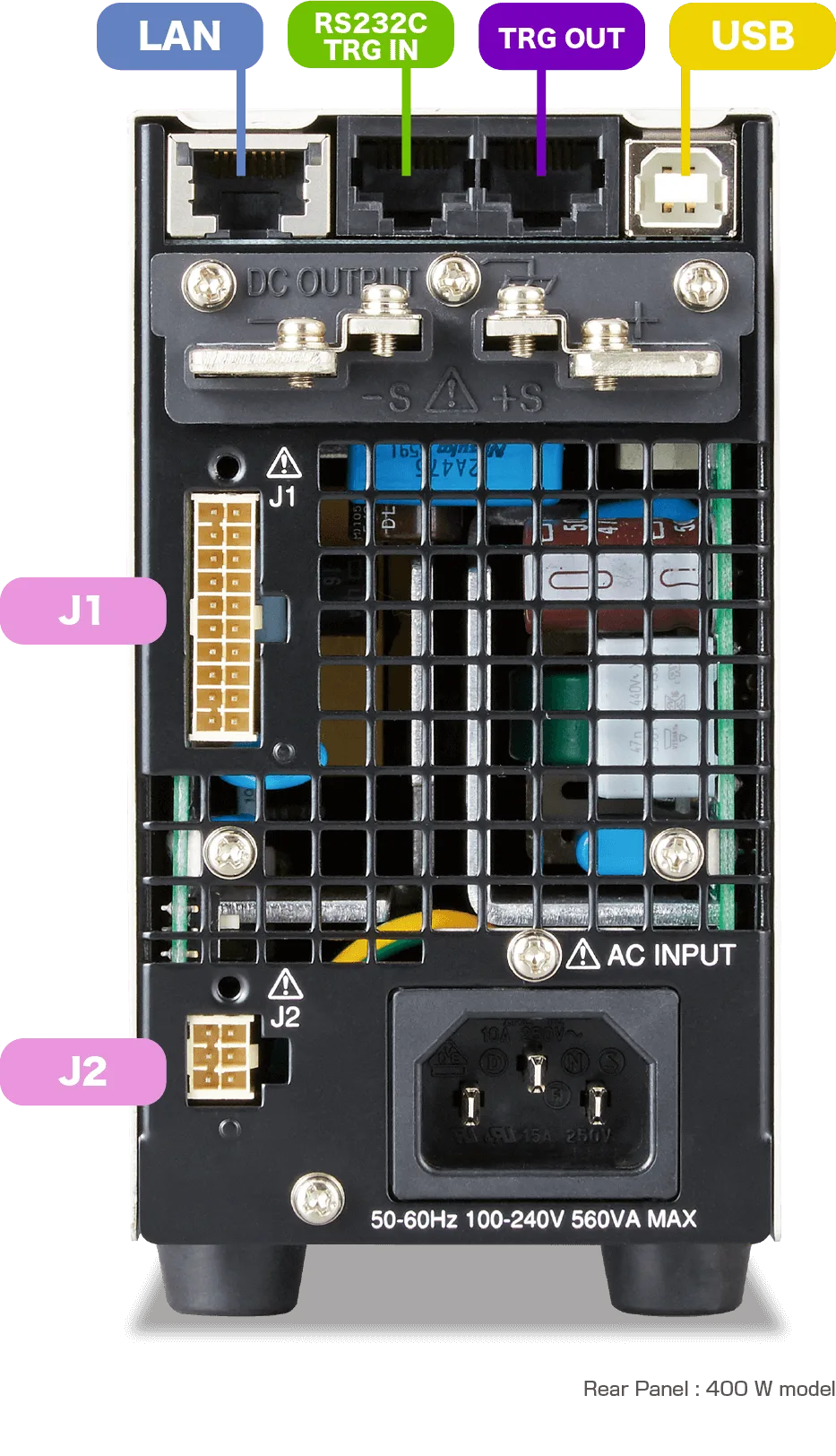

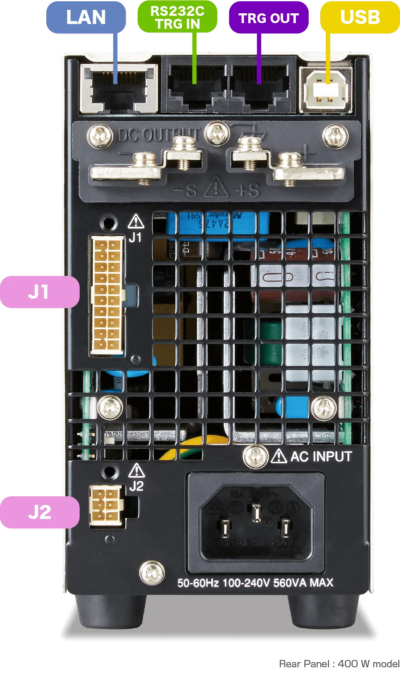

LAN / LXI, USB, and RS232C
LAN with LXI support, USB, and RS232C are standard interfaces, supporting SCPI-based integration into automated test and production systems.
Virtual Multi-Channel Bus
The VMCB function enables efficient centralized control of multiple PWR-01 units through a master connection to the host system and LAN connections between units.

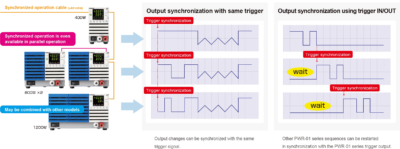

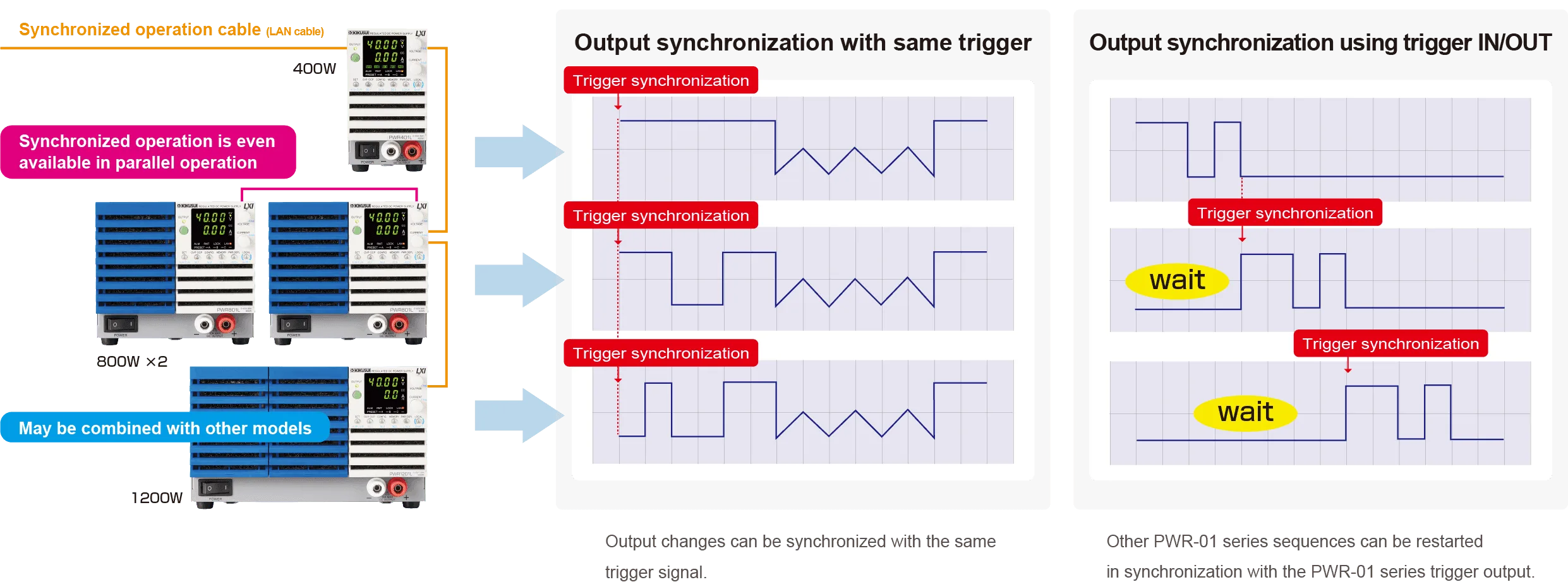

Synchronized Operation
Trigger input and output can synchronize voltage/current setting changes and sequence execution across multiple PWR-01 models, including mixed power classes.
Master-Slave Parallel Expansion
Identical 400 W and 800 W models support up to three units including the master, while 1200 W and 2000 W models support up to two units.
Series Operation
Two identical PWR-01 units can be connected in series where supported. Series operation is not available for H-type 650 V models.
Universal AC Input
An 85 Vac to 265 Vac input range supports operation without manual AC-input voltage switching.
External Analog Control
Output voltage and current can be programmed using external analog voltage, with additional output ON/OFF, shutdown, alarm-clear, monitoring, and status functions.
Laboratory DC device and component evaluation
Automated production and inspection test systems
Multi-channel programmable DC power systems
Programmable voltage and current profile testing
Rechargeable battery internal-resistance simulation
Solar-cell and fuel-cell internal-resistance simulation
Battery-connected power supply and charging evaluation
DC motor power-source and battery-substitute testing
PWR-01 Series Model Comparison
| Power Class | 40 V Type | 80 V Type | 240 V Type | 650 V Type |
|---|---|---|---|---|
| 400 W |
PWR401L 40 V / 40 A |
PWR401ML 80 V / 20 A |
PWR401MH 240 V / 5 A |
PWR401H 650 V / 1.85 A |
| 800 W |
PWR801L 40 V / 80 A |
PWR801ML 80 V / 40 A |
PWR801MH 240 V / 10 A |
PWR801H 650 V / 3.70 A |
| 1200 W |
PWR1201L 40 V / 120 A |
PWR1201ML 80 V / 60 A |
PWR1201MH 240 V / 15 A |
PWR1201H 650 V / 5.55 A |
| 2000 W |
PWR2001L 40 V / 200 A |
PWR2001ML 80 V / 100 A |
PWR2001MH 240 V / 25 A |
PWR2001H 650 V / 9.25 A |
The maximum rated voltage and maximum rated current are not available simultaneously when their product exceeds the model's rated output power. Select a model based on the required operating point within its wide-range power envelope.
Selecting a PWR-01 Model
Select the PWR-01 model by combining the required output-power class with the voltage and current range needed at the DUT operating point.
L — 40 V
Highest-current models, up to 200 A
ML — 80 V
Mid-voltage models with up to 100 A output
MH — 240 V
Higher-voltage models with up to 25 A output
H — 650 V
Highest-voltage models with up to 9.25 A output
After choosing the required voltage class, select the 400 W, 800 W, 1200 W, or 2000 W model according to the required operating point within the rated power envelope. Maximum voltage and maximum current values should not be multiplied to determine usable output power.
Control and System Integration
| Regulation Modes | Constant Voltage (CV) / Constant Current (CC) |
|---|---|
| Sequence Programs | 1 program |
| Sequence Steps | Up to 64 steps |
| Sequence Step Time | 0.1 s to 100 h |
| Sequence Repetition | 1 to 99,998 repetitions or infinite |
| Variable Internal Resistance | Standard function in CV mode for simplified internal-resistance simulation of rechargeable batteries, solar cells, and fuel cells |
| Standard Interfaces | LAN (LXI) / USB / RS232C |
| Command Language | SCPI / IEEE 488.2 |
| LAN Protocols | VXI-11 / SCPI-RAW / HiSLIP |
| VMCB | Virtual Multi-Channel Bus using LAN between PWR-01 units |
| Parallel Operation — 400 W / 800 W | Up to 3 identical units including master |
| Parallel Operation — 1200 W / 2000 W | Up to 2 identical units including master |
| Maximum Parallel Output Power | Up to 4 kW with applicable 2000 W models |
| Series Operation | Two identical units; H-type 650 V models excluded |
| External Analog Programming | 0–5 V or 0–10 V selectable programming for output voltage and current |
| AC Input Range | 85 Vac to 265 Vac, 47 Hz to 63 Hz |
| Protection | OVP, OCP, front-output-terminal OCP, overheat, incorrect sensing connection, low AC input, communication watchdog, shutdown, and master-slave parallel protection |
