Compact Low-Noise DC Power for Bench and System Testing
The KIKUSUI PMX-E Series combines linear series-dropper regulation with programmable constant-voltage and constant-current operation for laboratory, benchtop, and remotely controlled DC power applications.
Nine models cover rated outputs from 18 V to 500 V, 0.1 A to 5 A, and 35 W to 105 W. The series is designed around low-noise DC output while integrating LAN, USB, and RS232C communications, analog external control, output monitoring, and protection functions.
18 V to 500 V
Nine voltage and current configurations
35 W to 105 W
Compact linear CV/CC output
Memory Sequence
Combine up to three waveforms without a PC
LAN / USB / RS232C
Standard interfaces for remote control and integration
All PMX-E models provide front-facing output terminals for benchtop wiring. The 18 V and 35 V models additionally include remote sensing to compensate for voltage drop in load wiring.
Linear CV / CC Regulation
The PMX-E Series uses a series-dropper architecture to provide constant-voltage and constant-current operation with low ripple and noise.
Built-In Memory Sequencing
Combine up to three stored waveforms for continuous output sequencing without requiring a connected PC.
Output Off Timer
Output can be turned off according to upper or lower voltage limits, upper or lower current limits, or a configured time condition.
Output ON / OFF Delay
Programmable delays can be applied between an OUTPUT command and the actual output-on or output-off operation for load timing control.
Soft Start and Soft Stop
Configurable soft-start and soft-stop functionality supports controlled output transitions for connected loads.

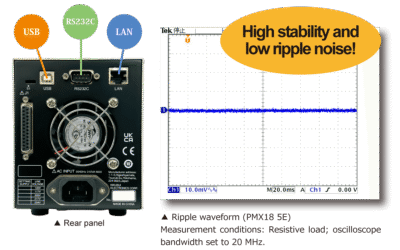

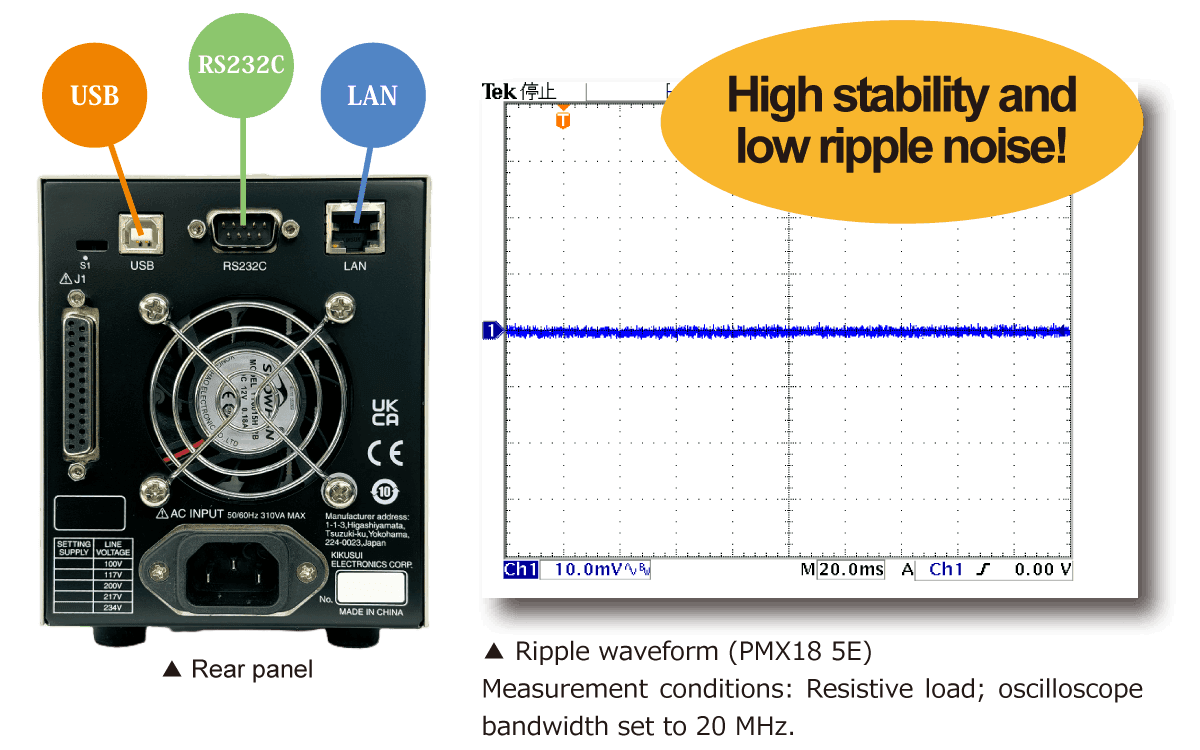

LAN, USB, and RS232C
Standard communication interfaces simplify remote control and automated system integration. LAN communication also supports browser-based control and monitoring.
Analog External Control and Monitoring
Analog external-control and output-monitor functions provide additional integration options beyond the standard digital interfaces.
Protection and Communication Monitoring
Multiple protection functions are combined with watchdog and external-control monitoring features to support controlled system operation.
Laboratory and engineering benchtop DC power
Low-noise CV / CC power for electronic device and circuit evaluation
Automated test systems using LAN, USB, or RS232C control
Network-controlled laboratory and R&D setups
Test setups requiring programmable output timing and memory sequences
DC test fixtures requiring analog external control or output monitoring
PMX-E Series Model Comparison
| Specification | PMX18-2E | PMX18-5E | PMX35-1E | PMX35-3E | PMX70-1E | PMX110-0.6E | PMX250-0.25E | PMX350-0.2E | PMX500-0.1E |
|---|---|---|---|---|---|---|---|---|---|
| Rated Output Voltage | 18 V | 18 V | 35 V | 35 V | 70 V | 110 V | 250 V | 350 V | 500 V |
| Rated Output Current | 2 A | 5 A | 1 A | 3 A | 1 A | 0.6 A | 0.25 A | 0.2 A | 0.1 A |
| Rated Output Power | 36 W | 90 W | 35 W | 105 W | 70 W | 66 W | 62.5 W | 70 W | 50 W |
| Voltage Setting Range | 0–18.90 V | 0–18.90 V | 0–36.75 V | 0–36.75 V | 0–73.50 V | 0–115.5 V | 0–262.5 V | 0–367.5 V | 0–525.0 V |
| Current Setting Range | 0–2.10 A | 0–5.25 A | 0–1.05 A | 0–3.15 A | 0–1.050 A | 0–0.630 A | 0–0.262 A | 0–0.210 A | 0–0.105 A |
| Voltage Ripple Noise, RMS | 0.5 mV | 0.5 mV | 0.5 mV | 0.5 mV | 1 mV | 2 mV | 3 mV | 5 mV | 10 mV |
| Remote Sensing | Yes | Yes | Yes | Yes | No | No | No | No | No |
Voltage ripple values apply at rated load under the measurement conditions specified by KIKUSUI. Optional high-speed rise/fall specifications apply only to supported models equipped with the factory option.
Common Functional Specifications
| Regulation Method | Linear series-dropper |
|---|---|
| Operating Modes | Constant Voltage (CV) / Constant Current (CC) |
| Voltage Setting Accuracy | ±(0.2% of setting + 0.1% of rating) |
| Current Setting Resolution | 0.1 mA |
| Current Setting Accuracy | ±(0.3% of setting + 0.1% of rating) |
| Memory Sequence | Built-in; up to three waveforms can be combined without a PC |
| Output Timing Functions | Output off timer, output-on/off delay, soft start, soft stop |
| Standard Digital Interfaces | LAN (LXI), USB, RS232C |
| Remote Monitoring | LAN browser-based control and monitoring; analog output monitoring |
| Analog Control | Analog external control supported |
| Communication Monitoring | Watchdog |
| Output Terminals | Front-facing on all models |
| AC Input | 100 Vac, 50/60 Hz, single phase; 117/200/217/234 Vac factory options |
| Input Frequency Range | 47 Hz to 63 Hz |
Built-In Sequence and System Control
PMX-E adds stand-alone timing and memory functions while retaining the low-noise behavior of a linear laboratory DC supply.
Built-in memory sequencing allows up to three stored waveforms to be combined and executed without a PC. Output off timer, output-on/off delay, soft-start, and soft-stop functions provide additional control over how power is applied to and removed from a connected load.
3 Waveforms
Built-in memory sequence operation
Output Timer
Voltage, current, or time-based output off conditions
Watchdog
Communication monitoring for system operation
Browser Control
LAN-based monitoring from compatible web browsers
For automated systems, LAN, USB, and RS232C are standard. Analog external control and output-monitor signals provide additional integration flexibility, while front-facing output terminals support convenient benchtop connection.
