Battery Charge / Discharge Control for Battery Evaluation
The KIKUSUI PFX2500 Series combines charge/discharge control, precision measurement, programmable test execution, and data acquisition for rechargeable battery evaluation.
The PFX2512 and PFX2532 operate with compatible KIKUSUI DC power supplies for charging and electronic loads for discharging. This architecture allows the charging source and discharge load to be selected according to the voltage, current, and power requirements of the battery test.60 V / 50 A
PFX2512 controller rating
60 V / 200 A
PFX2532 controller rating
1 ms
Minimum high-speed sampling interval
10,000 Steps
Maximum pattern charge/discharge steps
Flexible Charge / Discharge System Architecture
Combine the PFX2500 controller with compatible KIKUSUI DC power supplies for charging and electronic loads for discharging, allowing the system configuration to be matched to the required battery test conditions.Seamless Charge / Discharge Control

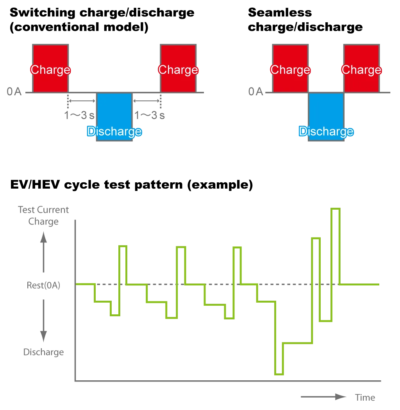

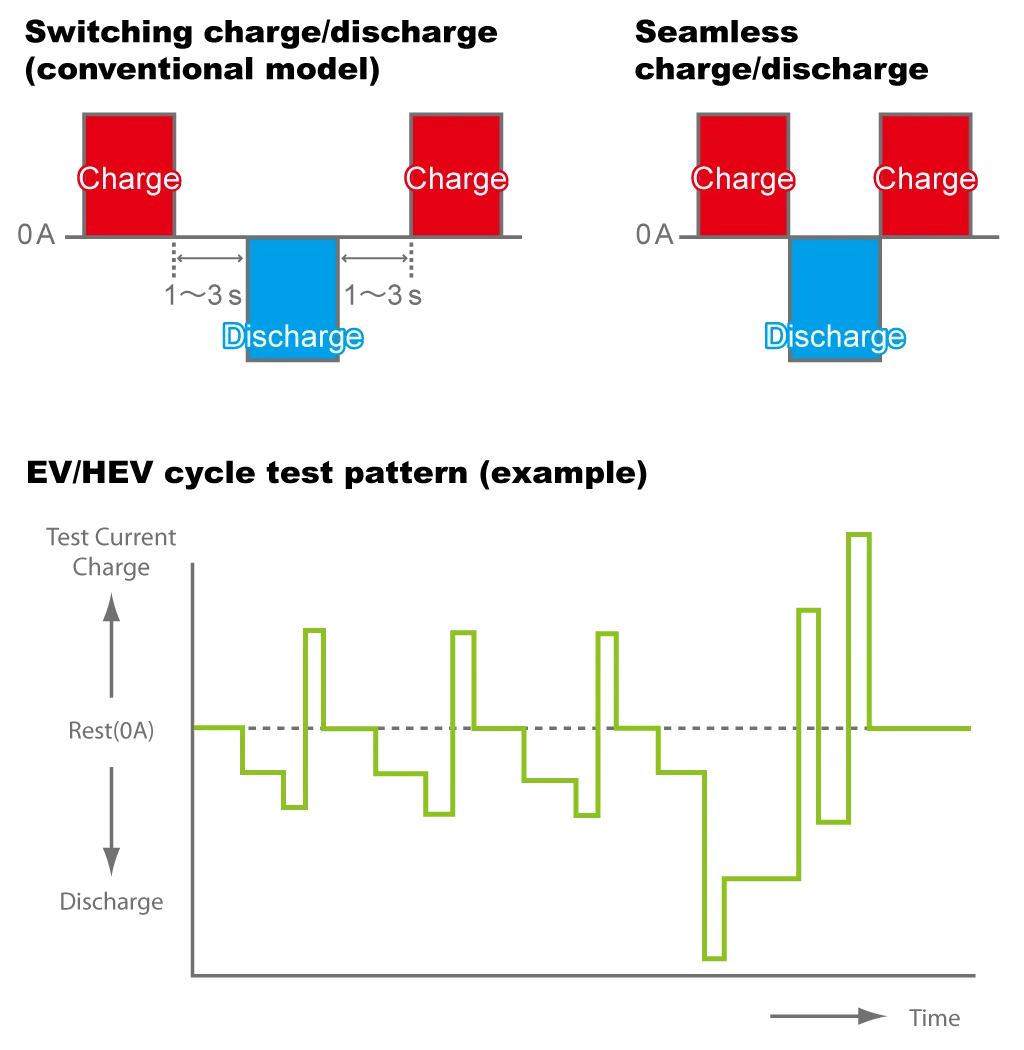

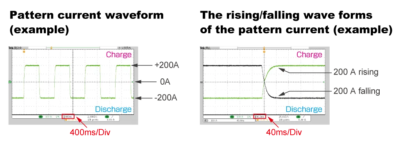

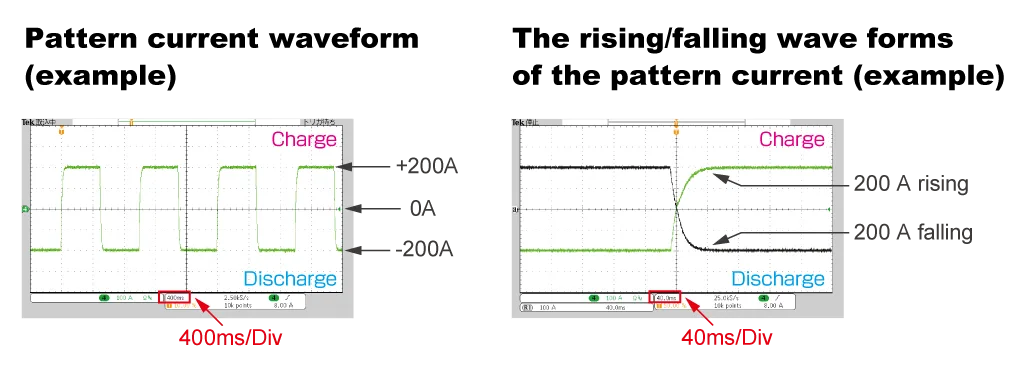

Simultaneous control of the charging power supply and discharge load enables seamless transition between charging and discharging, with a typical response within 50 ms under the specified test conditions.Multiple Battery Test Modes
Supports nine charge/discharge modes including CC and CC-CV charging; CC, CP, CC-CV and CP-CV discharging; plus Pattern, I-V and Pause operation.Up to 10,000 Pattern Steps
Programmable CC and CP patterns can contain up to 10,000 step values, with step durations as short as 100 ms for complex battery test and simulation profiles.High-Speed Voltage and Current Sampling

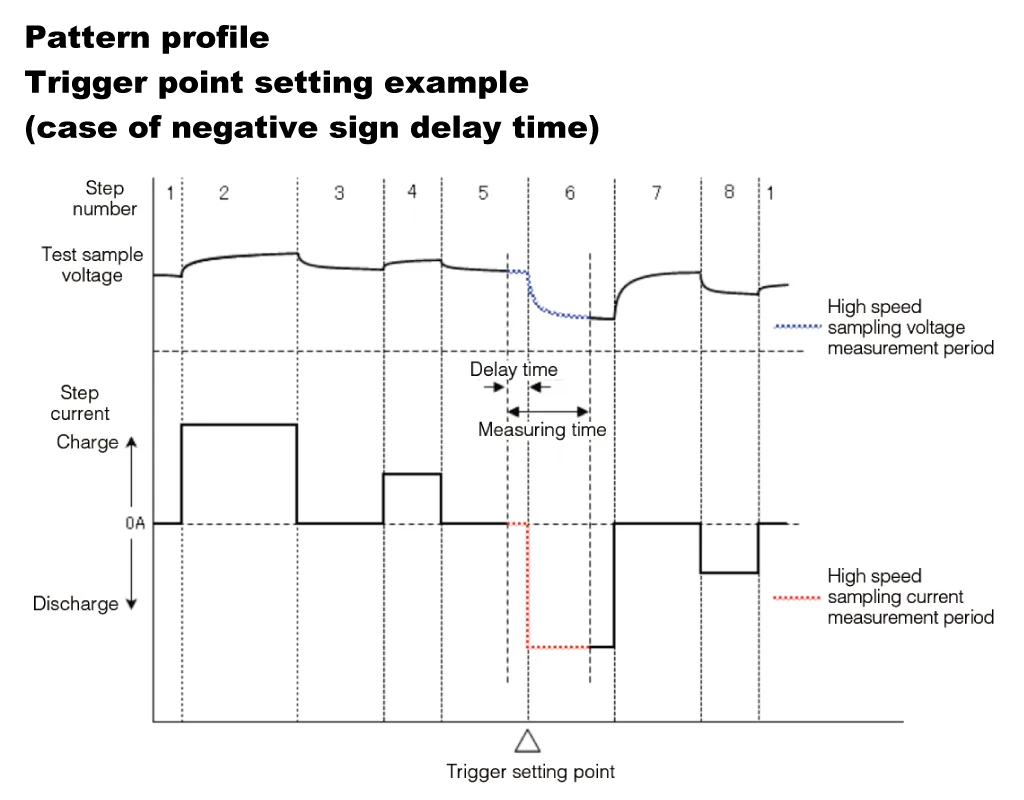

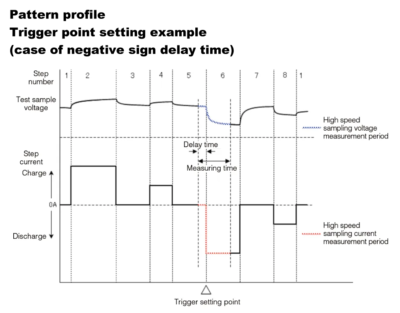

Select 1 ms, 10 ms or 100 ms sampling for the main voltage and current measurements, with up to 6,000 sampled points stored for each profile.Battery Measurement Expansion
Optional OP02-PFX voltage/temperature units can expand voltage and temperature measurement, while OP03-PFX voltmeter units with the SL01-PFX expansion unit support additional cell-voltage measurement points.Hardware and Software Protection
Protection functions address conditions such as overcharge and overdischarge. The controller also incorporates a route switch, abnormal-condition interruption, and vibration detection for additional protection during battery testing.BPChecker3000 Test Management
Required BPChecker3000 software provides test-condition creation, test execution, monitoring, result management, and analysis for PFX2512 and PFX2532 systems.Battery cycle-life and durability testing
Charge / discharge rate testing
Battery capacity measurement
Charge / discharge efficiency testing
Battery temperature characteristic testing
Storage characteristic testing
I-V characteristic testing
Battery management system (BMS) validation
Actual-load and operating-profile simulation
EV and electric mobility battery evaluation
Power-tool and robotic battery evaluation
Stationary energy-storage battery evaluation
PFX2500 Series Model Comparison
| Specification | PFX2512 | PFX2532 |
|---|---|---|
| Number of Outputs | 1 ch | 1 ch |
| Controller Rating | 60 V / 50 A | 60 V / 200 A |
| Charging Current Range | 0.000 A to 50.000 A | 0.000 A to 200.000 A |
| Charging Voltage Range — 60 V Range | 0.000 V to 60.000 V | 0.000 V to 60.000 V |
| Charging Voltage Range — 6 V Range | 0.000 V to 6.000 V | 0.000 V to 6.000 V |
| Discharge Current Range | 0.000 A to 50.000 A | 0.000 A to 200.000 A |
| Discharge Voltage Range — 60 V Range | 0.000 V to 60.000 V | 0.000 V to 60.000 V |
| Discharge Voltage Range — 6 V Range | 0.000 V to 6.000 V | 0.000 V to 6.000 V |
| Current Measurement Range | 0.0000 A to 50.0000 A | 0.000 A to 200.000 A |
| Current Measurement Accuracy | ±(0.15% of reading + 0.02% of rating) | ±(0.2% of reading + 0.1% of rating) |
| Current Measurement Resolution | 0.1 mA | 1 mA |
| Voltage Measurement Range — 60 V Range | -6.0000 V to 60.0000 V | -6.0000 V to 60.0000 V |
| Voltage Measurement Range — 6 V Range | -1.0000 V to 6.0000 V | -1.0000 V to 6.0000 V |
| Voltage Measurement Accuracy — 60 V Range | ±(0.05% of reading + 0.02% of rating) | ±(0.05% of reading + 0.02% of rating) |
| Voltage Measurement Accuracy — 6 V Range | ±(0.05% of reading + 0.04% of rating) | ±(0.05% of reading + 0.04% of rating) |
| Voltage Measurement Resolution | 0.1 mV | 0.1 mV |
| Power Measurement Range | 0.000 W to 3000.000 W | 0.0 W to 12000.0 W |
| Power Measurement Resolution | 1 mW | 100 mW |
| Capacity Calculation Range | 0.000 Ah to 2000.000 Ah | 0.000 Ah to 2000.000 Ah |
| Capacity Resolution | 1 mAh | 1 mAh |
| Time Accuracy | ±10 ppm typical | ±10 ppm typical |
| Communication Interface | LAN | LAN |
| Monitoring Data Minimum Interval | 0.1 s | 0.1 s |
| High-Speed Sampling | 1 ms / 10 ms / 100 ms, up to 6,000 points per profile | 1 ms / 10 ms / 100 ms, up to 6,000 points per profile |
| Charge / Discharge Modes | 9 modes | 9 modes |
| Seamless Charge / Discharge | Supported — response within 50 ms typical | Supported — response within 50 ms typical |
| Required Application Software | BPChecker3000 SD007-PFX | BPChecker3000 SD007-PFX |

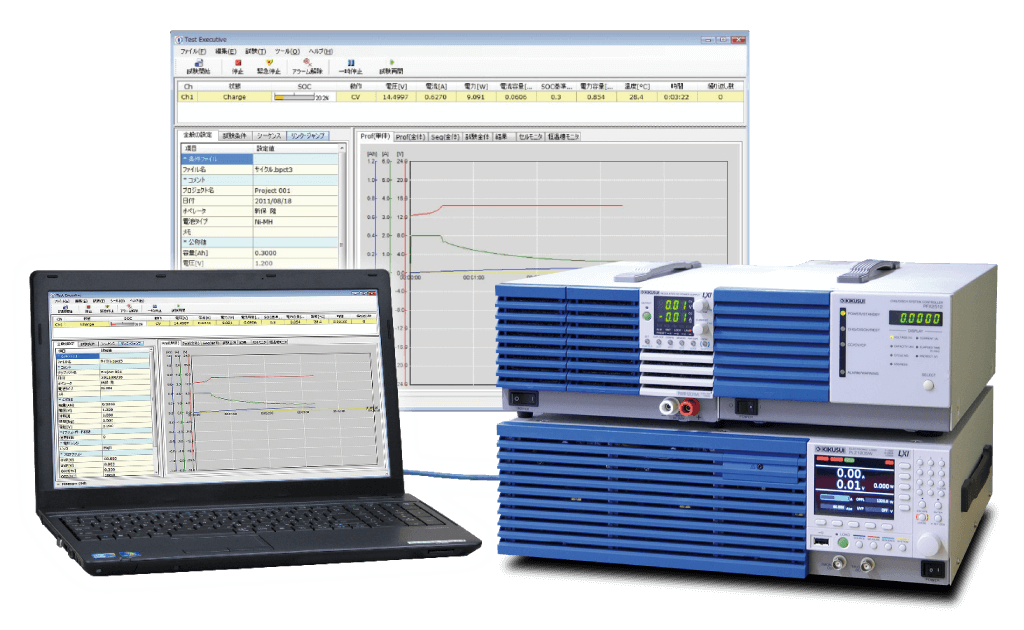

System Architecture and Software

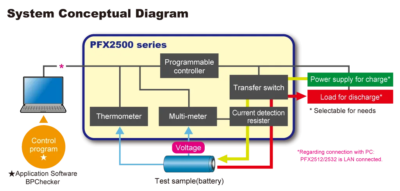

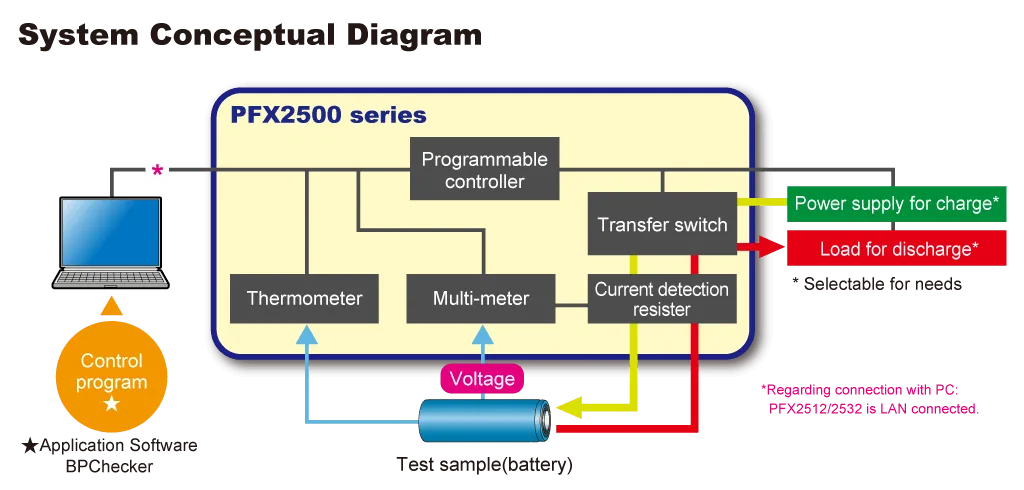

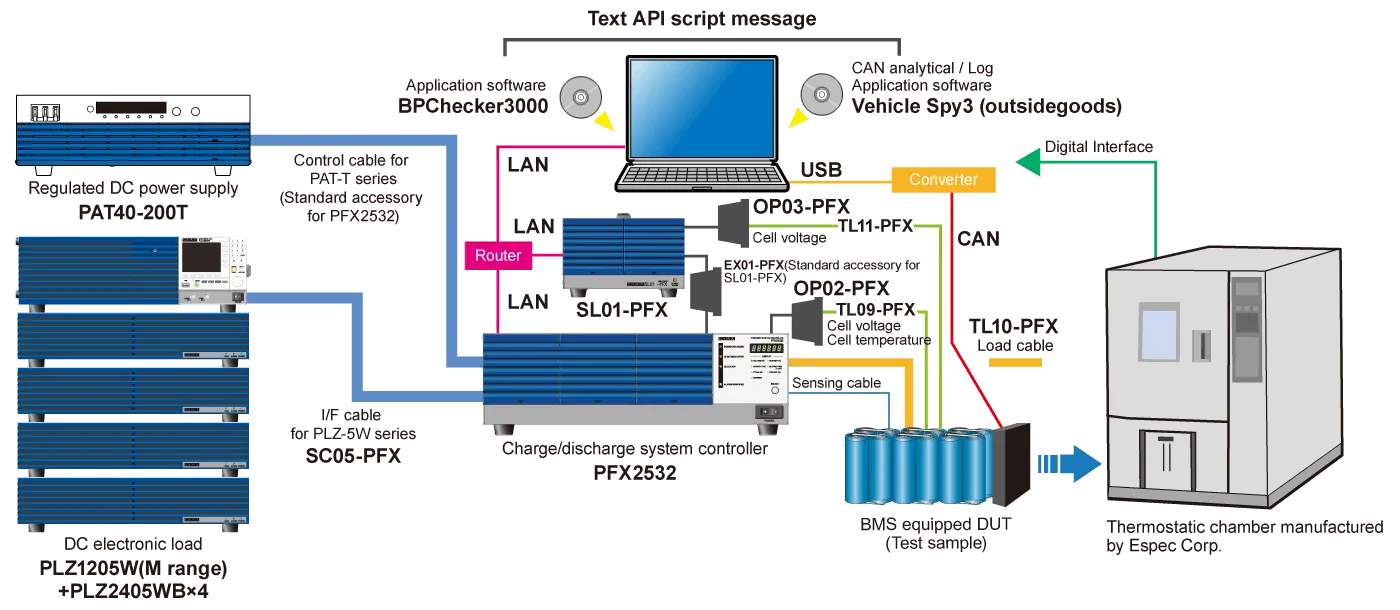

The PFX2500 Series is the control and measurement core of a configurable KIKUSUI battery charge/discharge system.

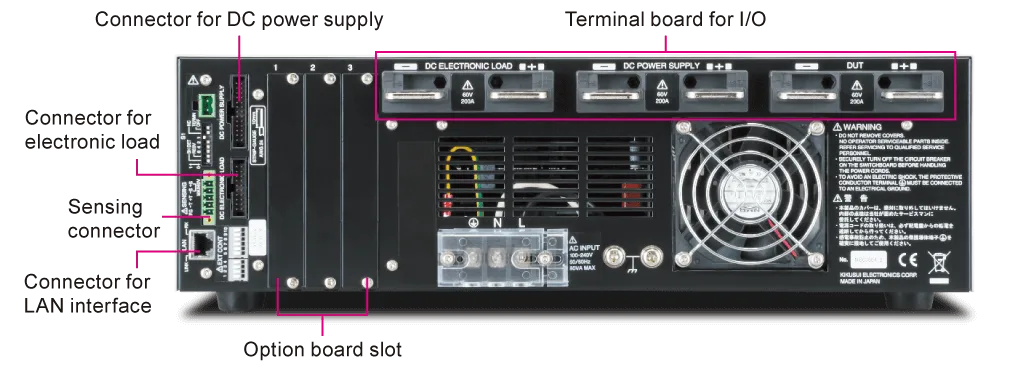

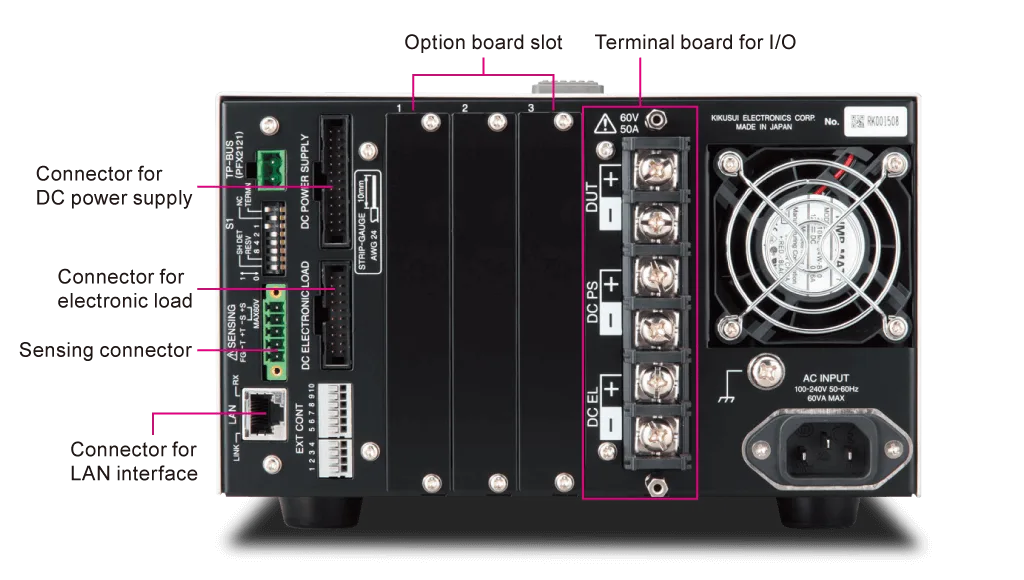

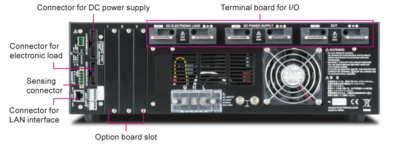

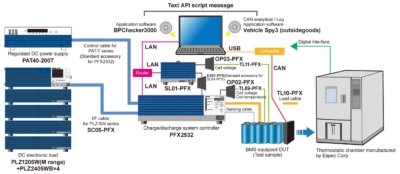

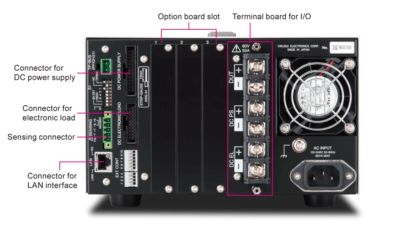

Each PFX2512 or PFX2532 provides one charge/discharge control channel. Charging power is supplied by a compatible external KIKUSUI DC power supply, while discharge energy is handled by a compatible KIKUSUI electronic load. The selected source, load, cabling, and test conditions determine the usable system power and operating range.BPChecker3000
Required software for PFX2512 and PFX2532 operation
LAN
Standard controller communication interface
12 + 12 Points
Up to 12 voltage and 12 temperature points using OP02-PFX units
64 Points
Cell-voltage expansion using OP03-PFX units with SL01-PFX
