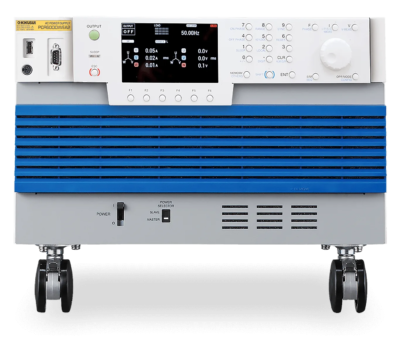

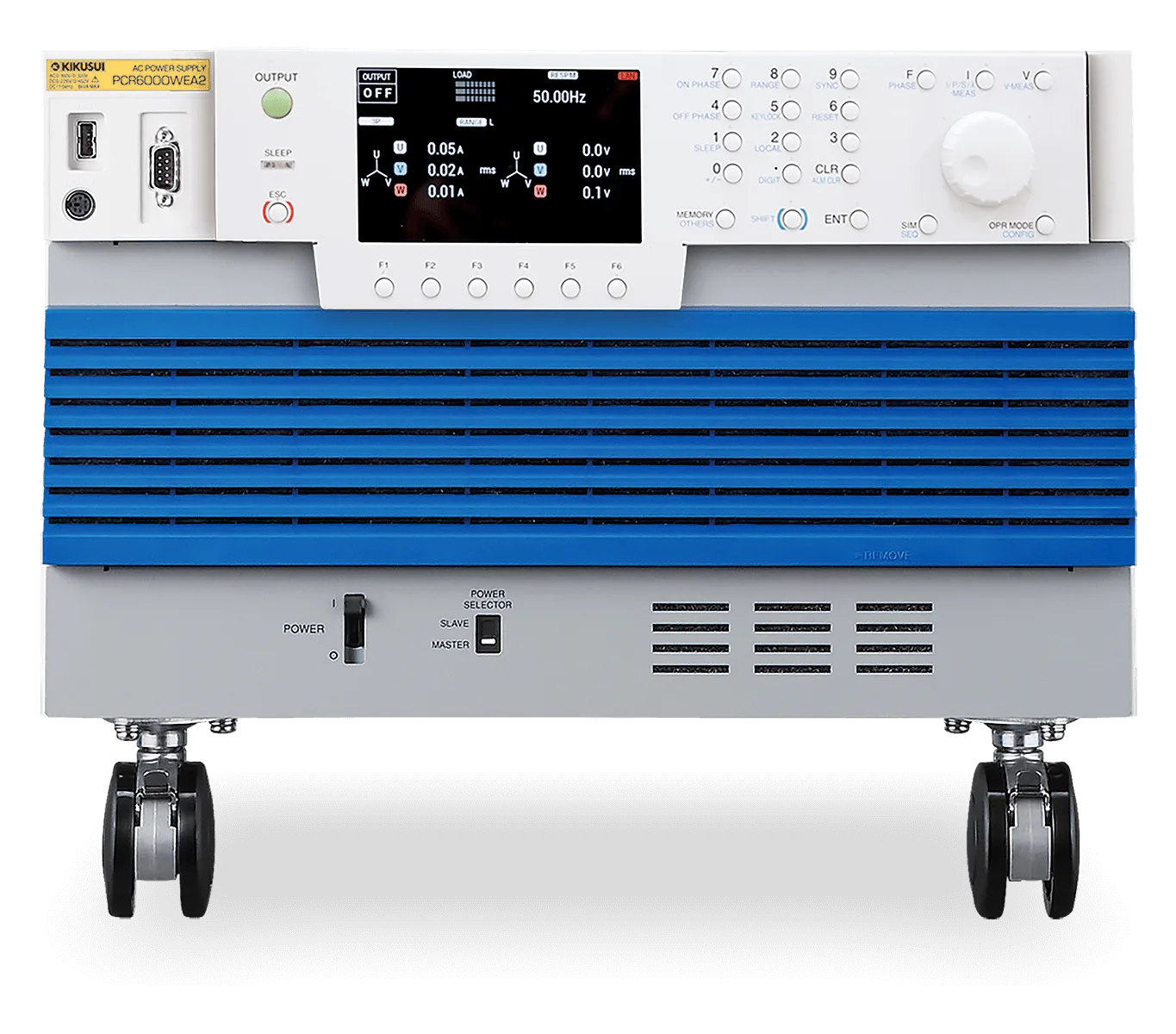

KIKUSUI PCR-WEA/WEA2 Series Ultra-Compact AC/DC Programmable Power Supplies

KIKUSUI
Type: AC/DC Power Supply
Supplier / Manufacturer: KIKUSUI
Model: PCR-WEA/WEA2 Series

The KIKUSUI PCR-WEA / WEA2 Series is an ultra-compact programmable AC/DC power supply family covering 1 kVA to 36 kVA per unit. It supports AC output up to 320 Vrms, DC output up to ±452 V, frequencies up to 5 kHz, single- and three-phase test configurations by model, sequence operation, power-line disturbance simulation, and automated system integration.
Regenerative operation is available only on PCR-WEA2R models.

Industries & Applications:
Consumer ElectronicsAerospace & DefenseR&DProduction TestingQuality Control
Contact Us
Download Catalog

High-Power Programmable AC/DC Testing in an Ultra-Compact Platform

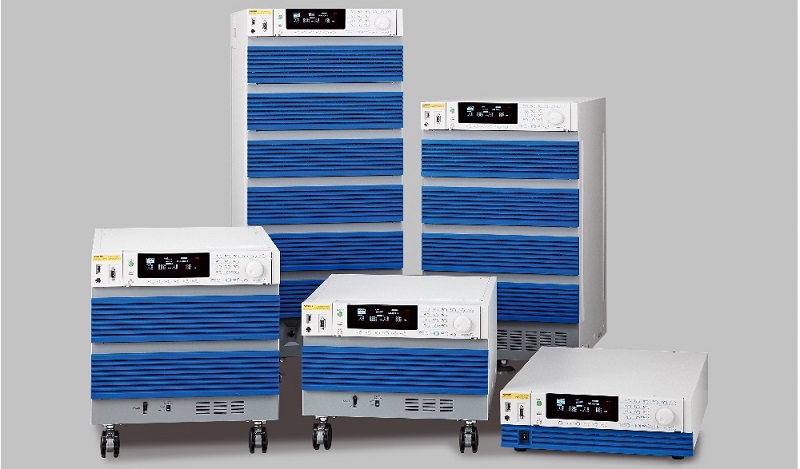

The KIKUSUI PCR-WEA / WEA2 Series provides programmable AC and DC power from 1 kVA to 36 kVA per unit, combining high power density, wide-frequency operation, measurement, sequencing, and automated test-system control.

The series spans compact single-phase PCR-WEA models and higher-power PCR-WEA2 models capable of single-phase, single-phase three-wire, and three-phase operation depending on model. AC output supports frequencies from 1 Hz to 5 kHz, while DC output is available up to the full rated power of the unit.

1 kVA to 36 kVA Fifteen models cover single-unit AC/DC power requirements from development systems to high-power test installations.
Up to 5 kHz Wide-frequency AC output supports commercial-power and avionics-related power testing.
AC + DC Capability AC output reaches 320 Vrms and DC output reaches ±452 V with 100% rated DC power.
Regeneration on WEA2R PCR-WEA2R models provide regenerative operation for applications involving reverse power flow.

Standard LAN, USB, and RS-232C interfaces, optional GPIB, built-in sequence functions, power-line disturbance simulation, and parallel operation on supported models make the series suitable for both standalone evaluation and large automated power-test systems.

1 kVA to 36 kVA AC/DC Output

The current series covers nine non-regenerative models from 1 kVA to 36 kVA and six regenerative WEA2R models from 6 kVA to 36 kVA.

Output Frequency to 5 kHz

Programmable frequency from 1 Hz to 5 kHz supports commercial-line, defense, and avionics-related AC power testing. Output derating conditions apply at low and high frequencies.

AC and Full-Power DC Output

AC output supports 160 V and 320 V ranges. DC operation supports bipolar voltage up to ±452 V with DC power capacity equal to the rated power of the corresponding model.

Single- and Three-Phase Configurations

PCR1000WEA and PCR2000WEA are single-phase models. PCR-WEA2 models beginning with PCR3000WEA2 support switchable single-phase, single-phase three-wire, and three-phase output configurations.

Power-Line Disturbance Simulation

Built-in functions can simulate power interruptions, voltage dips, and voltage increases for power-input and electronic-device evaluation.

Programmable Sequence Operation

Sequence functions support automated changes in output conditions for repeatable development, qualification, and production test procedures.

Integrated Power Measurement

Built-in measurement includes RMS voltage and current, peak current, active power, apparent power, power factor, phase information, and harmonic analysis functions.

Flexible Digital Interfaces

LAN with LXI support, USB, and RS-232C are standard. GPIB is available as an option for integration with existing automated test systems.

Parallel System Expansion

Models rated 6 kVA and higher support parallel-system configurations. KIKUSUI publishes scalable configurations extending to high-power three-phase systems.

Regenerative WEA2R Models

PCR-WEA2R models return reverse load power within the installation site, with regenerative power capability up to the rated capacity of the applicable model.

Avionics and airborne equipment power-input testing
MIL-STD-704 and RTCA/DO-160 power test systems with applicable software and accessories
Commercial AC power and frequency variation testing
Power-line disturbance and immunity evaluation
Home appliance and consumer electronics evaluation
Data center and IT power-supply evaluation
AC motor and inverter evaluation
On-board charger and power-electronics evaluation
High-power single-phase and three-phase automated test systems
Regenerative load testing with PCR-WEA2R models

PCR-WEA / WEA2 Series Architecture

Specification PCR-WEA PCR-WEA2 PCR-WEA2R
Current Models PCR1000WEA
PCR2000WEA		 PCR3000WEA2
PCR6000WEA2
PCR12000WEA2
PCR18000WEA2
PCR24000WEA2
PCR30000WEA2
PCR36000WEA2		 PCR6000WEA2R
PCR12000WEA2R
PCR18000WEA2R
PCR24000WEA2R
PCR30000WEA2R
PCR36000WEA2R
AC Power Range 1–2 kVA 3–36 kVA 6–36 kVA
DC Power 100% rated power 100% rated power 100% rated power
Single-Phase Output Yes Yes Yes
Single-Phase Three-Wire — Yes Yes
Three-Phase Output — Yes Yes
Maximum Frequency 5 kHz 5 kHz 5 kHz
Sequence Function Yes Yes Yes
Power-Line Disturbance Simulation Yes Yes Yes
Regenerative Operation — — Yes
Standard Interfaces LAN / USB / RS-232C LAN / USB / RS-232C LAN / USB / RS-232C
GPIB Option Option Option


PCR-WEA / WEA2 Model Comparison

Specification PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
Single-Phase AC Capacity 1 kVA 2 kVA 3 kVA 6 kVA 12 kVA 18 kVA 24 kVA 30 kVA 36 kVA
Three-Phase AC Capacity — — 3 kVA 6 kVA 12 kVA 18 kVA 24 kVA 30 kVA 36 kVA
1-Phase 3-Wire Capacity — — 2 kVA 4 kVA 8 kVA 12 kVA 16 kVA 20 kVA 24 kVA
AC Max. Current L/H Range — 1P 10 / 5 A 20 / 10 A 30 / 15 A 60 / 30 A 120 / 60 A 180 / 90 A 240 / 120 A 300 / 150 A 360 / 180 A
DC Power Capacity 1 kW 2 kW 3 kW 6 kW 12 kW 18 kW 24 kW 30 kW 36 kW
Regeneration — — — — — — — — —


PCR-WEA2R Regenerative Model Comparison

Specification PCR6000WEA2R PCR12000WEA2R PCR18000WEA2R PCR24000WEA2R PCR30000WEA2R PCR36000WEA2R
Rated AC Capacity 6 kVA 12 kVA 18 kVA 24 kVA 30 kVA 36 kVA
Rated DC Capacity 6 kW 12 kW 18 kW 24 kW 30 kW 36 kW
Maximum Regenerated Power 6 kVA 12 kVA 18 kVA 24 kVA 30 kVA 36 kVA
Regenerative Capability 100% 100% 100% 100% 100% 100%
Regeneration Efficiency 85% typ. 85% typ. 85% typ. 85% typ. 85% typ. 85% typ.
Regeneration Limitation Installation site only Installation site only Installation site only Installation site only Installation site only Installation site only


Common AC/DC Output Specifications

AC Voltage Ranges 160 V / 320 V
AC Voltage Setting Range 0 to 161.0 V / 0 to 322.0 V
AC Voltage Resolution 0.1 V
Frequency Setting Range 1 Hz to 5 kHz
Frequency Resolution 0.01 Hz to 100 Hz; 0.1 Hz to 1 kHz; 1 Hz above 1 kHz
DC Voltage Ranges -226 V to +226 V / -452 V to +452 V
DC Voltage Setting Range -227.5 V to +227.5 V / -455.0 V to +455.0 V
DC Voltage Resolution 0.1 V
Maximum Peak Current Up to 4× maximum output current under specified conditions
Ripple Noise 0.25 Vrms or less
Standard Digital Interfaces LAN (LXI), USB, RS-232C
Optional Interface GPIB

PCR-WEA2R Regenerative Operation

Regenerative capability is available only on PCR-WEA2R models from 6 kVA to 36 kVA.

PCR-WEA2R models can return reverse load power through the input side at up to 100% of the unit's rated power, helping reduce energy consumption and heat dissipation in applications where power flows back from the equipment under test.

100% Rated Regeneration Maximum regenerative power matches the rated capacity of each WEA2R model.
No Reverse-Flow Time Limit KIKUSUI specifies continuous regenerative capability within the applicable operating conditions.
6 kVA to 36 kVA Six WEA2R models provide regenerative configurations across the high-power range.
Installation-Site Regeneration Regeneration is limited to use within the installation site.

Regenerative capability must not be interpreted as permission to export energy to the public utility grid. Installation and power-distribution requirements should be confirmed for the intended facility before system design.
