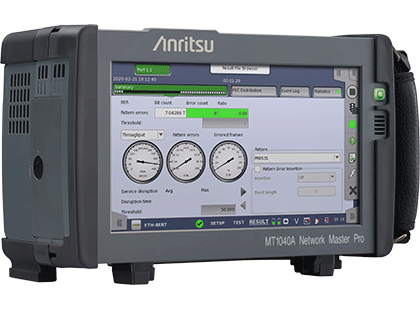

Anritsu MT1040A Network Master Pro 400G Network Tester
Anritsu MT1040A Network Master Pro is a portable field tester supporting Ethernet from 10M to 400G plus OTN, SDH/SONET, mobile fronthaul, Fibre Channel, and optional OTDR.
Contact Us
Portable 400G Network Testing for Installation and Maintenance
The Anritsu Network Master Pro MT1040A combines 400G Ethernet testing with multi-protocol transport and optical-fiber test capabilities in a portable, modular field platform.
Designed for network installation, commissioning, maintenance, and troubleshooting, the MT1040A supports Ethernet rates from 10M through 400G while extending field test coverage to OTN, SDH/SONET, eCPRI/RoE, CPRI/OBSAI, and Fibre Channel. Its modular architecture allows the instrument to be configured around the interfaces and protocols required for each network environment.
10M to 400G Ethernet
Support for legacy, 10G, 25G, 40G, 100G, 200G, and 400G Ethernet test applications.
400G FEC Analysis
Built-in Forward Error Correction analysis supports evaluation of high-speed 400G Ethernet links and optical transceivers.
Multi-Protocol Transport Testing
Configure the platform for OTN, SDH/SONET, Fibre Channel, CPRI/OBSAI, and Ethernet-based eCPRI/RoE testing.
Integrated Optical Testing
Add an OTDR module to combine transport-network testing with optical-fiber continuity and fault-location workflows.
QSFP-DD and OSFP 400G transport modules are available for different interface requirements. For higher-density applications, an optional dual-module configuration supports dual-port 400G Ethernet testing using two QSFP-DD transport modules.
Ethernet Testing from 10M to 400G
Supports field testing across multiple Ethernet generations, including 10M/100M/1000M, 10G, 25G, 40G, 100G, 200G, and 400G depending on the installed transport module and protocol options.
400G FEC Analysis
Built-in FEC analysis supports quantitative evaluation of 400G Ethernet links, optical transceivers, and network equipment where Forward Error Correction performance is critical.
OTN and Legacy Transport Testing
Configurable OTN test functions support rates through 100G, while additional options provide SDH/SONET testing for mixed modern and legacy transport-network environments.
Mobile Fronthaul and Backhaul
Supports Ethernet-based eCPRI/RoE as well as CPRI/OBSAI test applications, allowing one field platform to address multiple generations of mobile transport infrastructure.
SyncE and IEEE 1588 v2
Applicable Ethernet and eCPRI/RoE configurations support SyncE and IEEE 1588 v2 timing functions for synchronization-sensitive network testing.
Optional OTDR Integration
Compatible OTDR modules add optical-fiber continuity, event analysis, and fault-location capabilities without requiring a separate field test platform.
Flexible QSFP-DD and OSFP Architecture
Select the MU104014B QSFP-DD or MU104015A OSFP 400G transport module to match the optical interface and port requirements of the network under test.
Field-Oriented Operation
A 9-inch touchscreen, automated SEEK test workflows, remote operation capabilities, and a portable modular design help streamline installation and maintenance procedures.
400G Ethernet network installation and commissioning
Data center and data center interconnect testing
Ethernet and optical transport network maintenance
OTN and SDH/SONET troubleshooting
5G mobile fronthaul and backhaul testing
eCPRI, RoE, CPRI, and OBSAI network verification
Fibre Channel installation and performance testing
Optical-fiber continuity and fault localization with an optional OTDR module
MT1040A Specifications
| Product Type | Portable modular network and transport tester |
|---|---|
| Ethernet | 10M/100M/1000M, 10G, 25G, 40G, 100G, 200G, and 400G depending on installed module and options |
| 400G Interfaces | QSFP-DD with MU104014B; OSFP with MU104015A |
| OTN | OTU1, OTU2, OTU3, and OTU4; measurement options available through 100G depending on module and configuration |
| SDH / SONET | Supported through applicable protocol options; up to 10G physical testing, with STM-256 / OC-768 available as an OTN client-signal option on applicable 400G modules |
| Mobile Transport | eCPRI / RoE (IEEE 1914.3), CPRI, and OBSAI depending on installed protocol options |
| Fibre Channel | 1GFC through 16GFC depending on module and option |
| Synchronization | SyncE and IEEE 1588 v2 supported with applicable Ethernet and eCPRI/RoE configurations |
| 400G Dual-Port Testing | Optional; requires MT1040A-020 and two MU104014B 400G QSFP-DD Multirate Modules |
| Optical Fiber Testing | Optional OTDR modules MU100020A, MU100021A, MU100022A, and MU100023A |
| Display | 9-inch active TFT touchscreen, 800 × 480 pixels |
| Service Ethernet | 10M/100M/1000M RJ45, 1 port |
| USB | USB 2.0 Type-A × 2; USB 2.0 Mini-B × 1 |
| External Clock Input | SETS (E1), BITS (DS1), 2.048 MHz TTL, or 10 MHz via BNC |
| Battery | Two rechargeable, replaceable 11.25 V Li-ion batteries; approximately 1 hour typical operating time in a 400 GbE configuration |
| Mainframe Dimensions | 262 (W) × 167 (H) × 68 (D) mm, excluding projections |
| Typical 400G Configuration Size | 262 (W) × 167 (H) × 134 (D) mm with one MU104014B |
| Typical 400G Configuration Mass | ≤4.7 kg including MT1040A, one MU104014B, and batteries |
MT1040A Measurement Module Architecture
| Module | Primary Interface | Maximum Ethernet Rate | Port Architecture | Primary Use |
|---|---|---|---|---|
| MU104014B | QSFP-DD | 400G | 10M–100G dual-channel configurations available; 200G/400G single-channel | Primary QSFP-DD 400G Ethernet and multi-protocol transport module |
| MU104015A | OSFP | 400G | 10M–25G dual-channel; 40G/100G/400G single-channel | OSFP-based 400G Ethernet and multi-protocol transport testing |
| MU104011A | QSFP28 / SFP28 class interfaces | 100G | 10M–100G dual-channel configurations available depending on options | High-density testing through 100G and multi-protocol transport applications |
| MU100020A | OTDR | — | 1310 / 1550 nm SMF | Optical-fiber testing |
| MU100021A | OTDR | — | 1310 / 1550 / 850 / 1300 nm SMF / MMF | Single-mode and multimode optical-fiber testing |
| MU100022A | OTDR | — | 1310 / 1550 / 1625 nm SMF | Single-mode optical-fiber testing |
| MU100023A | OTDR | — | 1310 / 1550 / 1650 nm SMF | Single-mode optical-fiber testing |
Measurement capability depends on the installed transport module and software protocol options. Select the required Ethernet rate, optical interface, transport protocol, port count, and OTDR capability when configuring the MT1040A.
