Anritsu Site Master for RF Cable, Antenna, and Field Measurements
The Anritsu Site Master MS2085A and MS2089A combine field-ready cable and antenna analysis with fast sweep performance, high-resolution measurements, and optional vector network analysis for RF installation, maintenance, and troubleshooting.
Both models provide cable and antenna analyzer coverage from 5 kHz to either 4 GHz or 6 GHz. Core measurements include Return Loss, VSWR, Cable Loss, Distance-to-Fault (DTF), 1-Port Phase, and Smith Chart. The MS2089A extends the platform with an integrated spectrum analyzer covering 9 kHz to 4 GHz or 6 GHz.
5 kHz to 4 / 6 GHz
Cable and antenna analyzer frequency configurations
9 kHz to 4 / 6 GHz
Integrated spectrum analyzer on MS2089A
< 350 µs / Data Point
Typical fast CAA sweep for Return Loss and DTF
Optional 2-Port VNA
2-port, 1-path VNA configurations to 4 GHz or 6 GHz
Choose the MS2085A when the primary requirement is cable and antenna analysis. Choose the MS2089A when field work also requires spectrum analysis. Optional 2-port transmission and VNA capabilities can be added to either model for more detailed RF component, cable, and transmission measurements.
4 GHz or 6 GHz Cable and Antenna Analysis
Configure the Site Master for cable and antenna measurements from 5 kHz to 4 GHz or from 5 kHz to 6 GHz, supporting a broad range of RF installation and maintenance requirements.
Essential RF Line Measurements
Measure Return Loss, VSWR, Cable Loss, Distance-to-Fault, 1-Port Phase, and Smith Chart parameters for cable, connector, antenna, and transmission-line evaluation.
Fast, High-Resolution Sweeps
Fast CAA sweep mode provides typical Return Loss and DTF sweep speeds below 350 µs per data point, with up to 10,049 user-defined CAA data points for detailed measurements.

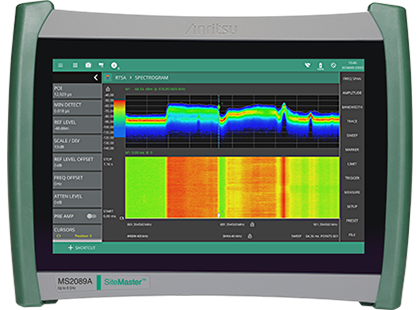

Integrated Spectrum Analyzer — MS2089A
The MS2089A adds spectrum analysis from 9 kHz to 4 GHz or 6 GHz for spectrum monitoring, RF signal measurements, and field interference analysis. The MS2085A does not include a spectrum analyzer.
Optional 2-Port Vector Network Analyzer
VNA Options 904 and 906 provide 2-port, 1-path vector network analysis from 5 kHz to 4 GHz or 6 GHz. VNA operation requires the 2-port Transmission Measurement Option 21.
Designed for Field Operation
A 10.1-inch capacitive touchscreen, IK08 screen protection, Ethernet, WLAN, USB connectivity, remote control capabilities, and built-in PDF/HTML reporting support efficient field measurement and documentation workflows.
RF cable and antenna installation and maintenance
Return Loss and VSWR verification
Cable loss measurements
Distance-to-Fault troubleshooting
Cellular and wireless infrastructure field testing
Distributed antenna system (DAS) installation and maintenance
Broadcast and RF communications maintenance
Spectrum monitoring and interference analysis with MS2089A
RF component and transmission measurements with optional VNA
Satellite and other field RF system measurements
MS2085A / MS2089A Model Comparison
| Specification | MS2085A | MS2089A |
|---|---|---|
| Primary Configuration | Cable and Antenna Analyzer | Cable and Antenna Analyzer + Spectrum Analyzer |
| Cable & Antenna Analyzer Frequency |
5 kHz to 4 GHz — Option 804 5 kHz to 6 GHz — Option 806 |
5 kHz to 4 GHz — Option 804 5 kHz to 6 GHz — Option 806 |
| Spectrum Analyzer Frequency | Not available |
9 kHz to 4 GHz — Option 704 9 kHz to 6 GHz — Option 706 |
| CAA Measurements | Return Loss, VSWR, Cable Loss, DTF Return Loss, DTF VSWR, 1-Port Phase, Smith Chart | Return Loss, VSWR, Cable Loss, DTF Return Loss, DTF VSWR, 1-Port Phase, Smith Chart |
| Return Loss Range | 0 dB to 60 dB | 0 dB to 60 dB |
| VSWR Range | 1:1 to 65:1 | 1:1 to 65:1 |
| Cable Loss Range | 0 dB to 30 dB | 0 dB to 30 dB |
| Maximum DTF Distance | 5000 m (16404 ft) | 5000 m (16404 ft) |
| CAA Fast Sweep Speed | < 350 µs/data point, typical | < 350 µs/data point, typical |
| CAA Data Points | Up to 10,049 user-defined points | Up to 10,049 user-defined points |
| TDR | Option 3 | Option 3 |
| 2-Port Transmission | Option 21 | Option 21 |
| Vector Network Analyzer |
Option 904: 5 kHz to 4 GHz Option 906: 5 kHz to 6 GHz Requires Option 21 |
Option 904: 5 kHz to 4 GHz Option 906: 5 kHz to 6 GHz Requires Option 21 |
| VNA Architecture | 2-port, 1-path | 2-port, 1-path |
| VNA Fast Sweep Speed | 380 µs/point, typical | 380 µs/point, typical |
| Spectrum Analysis Bandwidth | — |
20 MHz standard 40 MHz with Option 102 |
| Spectrum Sweep Rate | — |
32 GHz/s standard 45 GHz/s with Option 102 |
| Spectrum Analyzer RF Input | — | Type N female, 50 Ω |
| Display | 10.1-inch capacitive touchscreen, 1280 × 800 | 10.1-inch capacitive touchscreen, 1280 × 800 |
| Screen Protection | IK08 | IK08 |
| Interfaces | 10/100/1000 Ethernet, WLAN, two USB 3 Type-A, one USB 3 Type-C / USBTMC | 10/100/1000 Ethernet, WLAN, two USB 3 Type-A, one USB 3 Type-C / USBTMC |
| CAA Battery Operation |
5 hours typical with internal battery 9 hours typical with accessory battery |
5 hours typical with internal battery 9 hours typical with accessory battery |
| Spectrum Analyzer Battery Operation | — |
3 hours typical with internal battery 6 hours typical with accessory battery |
| Operating Temperature | −10 °C to 55 °C | −10 °C to 55 °C |
| Environmental Classification | MIL-PRF-28800F Class 2 | MIL-PRF-28800F Class 2 |
| Ingress Protection | IP52 when installed in the soft carrying case | IP52 when installed in the soft carrying case |
| Dimensions | 290 × 212 × 96 mm | 290 × 212 × 96 mm |
| Weight |
3.1 kg without Option 21 3.8 kg with Option 21 | 3.8 kg with Option 21 |
Configuration and Option Guide
| Capability | MS2085A | MS2089A |
|---|---|---|
| 4 GHz Cable & Antenna Analyzer | Option 804 | Option 804 |
| 6 GHz Cable & Antenna Analyzer | Option 806 | Option 806 |
| 4 GHz Spectrum Analyzer | Not available | Option 704 + matching Option 804 |
| 6 GHz Spectrum Analyzer | Not available | Option 706 + matching Option 806 |
| 2-Port Transmission | Option 21 | Option 21 |
| 4 GHz VNA | Option 904 + Option 21 | Option 904 + Option 21 |
| 6 GHz VNA | Option 906 + Option 21 | Option 906 + Option 21 |
| Time Domain Reflectometry | Option 3 | Option 3 |
| Real-Time Spectrum Analysis | Not available | Option 199 |
| 40 MHz Spectrum Analysis Bandwidth | Not available | Option 102 |
