Anritsu MP2110A BERTWave Sampling Oscilloscope and BERT
Anritsu MP2110A BERTWave integrates a 4-channel sampling oscilloscope and 4-channel BERT for physical-layer testing of 10G through 1.6T optical modules and devices.
Contact Us
All-in-One BERT and Sampling Oscilloscope for Optical Module Testing
The Anritsu MP2110A BERTWave combines bit error rate testing and high-speed waveform analysis in a configurable platform developed for multichannel optical module and device evaluation.
Designed for both development and manufacturing environments, the MP2110A can integrate up to four BERT channels and up to four sampling oscilloscope channels in one instrument. This architecture supports efficient parallel evaluation of multichannel optical transceivers while reducing the complexity of systems that otherwise require separate BERT and oscilloscope platforms.Up to 4 + 4 ChannelsConfigurable sampling oscilloscope and BERT architecture for multichannel testing.
10G to 1.6T ApplicationsPhysical-layer evaluation of current and next-generation optical modules, depending on configuration.
NRZ and PAM4 AnalysisEye pattern, mask, jitter, amplitude and PAM4 optical waveform measurements.
Up to 60 GHz Optical BandwidthAvailable configurations support 200G/lane PAM4 optical signals up to 120 Gbaud.

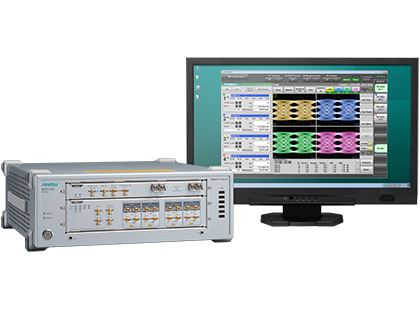

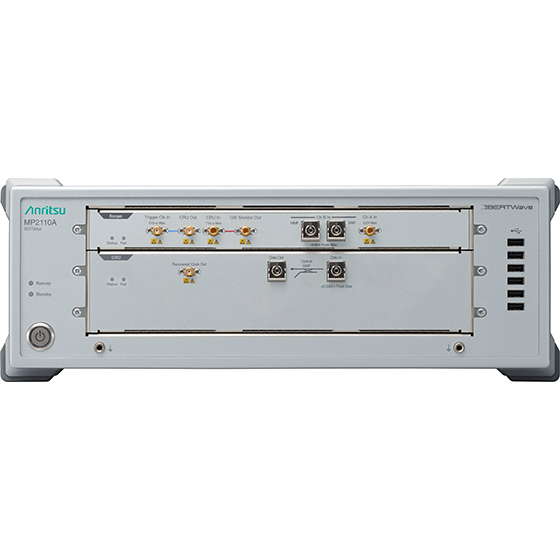

Integrated BERT and Sampling Oscilloscope
Combines BER measurement and waveform-quality analysis in one platform, simplifying optical transceiver Tx/Rx test configurations and reducing instrument switching during production testing.
Configurable 1, 2 or 4-Channel Architecture
Configure the system according to the required channel count, with support for up to four BERT channels and four sampling oscilloscope channels for multichannel and parallel testing.
NRZ and PAM4 Waveform Analysis
The sampling oscilloscope supports NRZ and PAM4 signal evaluation, including Eye pattern measurements required for current high-speed optical interfaces.
Eye, Mask and Jitter Measurements
Evaluate parameters including Eye height and width, Mask Margin, jitter, rise and fall time, extinction ratio, OMA and other waveform-quality measurements supported by the installed configuration.
PAM4 TDECQ Evaluation
PAM4 analysis configurations support TDECQ and related optical transmitter measurements. Current 60 GHz optical configurations extend PAM4 evaluation to signals up to 120 Gbaud for 200G/lane applications.
High-Speed Multichannel Production Test
Parallel and simultaneous channel measurement helps reduce test time when evaluating multichannel optical transceivers and multiple devices in manufacturing environments.

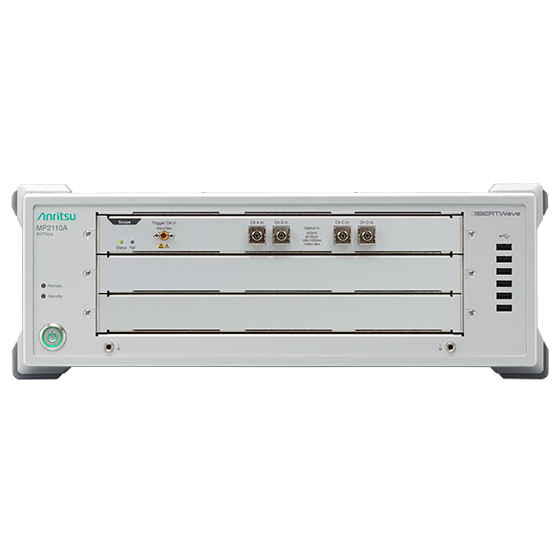

Optical and Electrical Measurement Configurations
Sampling oscilloscope configurations are available for optical SMF, SMF/MMF and electrical signal evaluation, allowing the platform to be configured for different module and interface requirements.
Remote Control and Automation

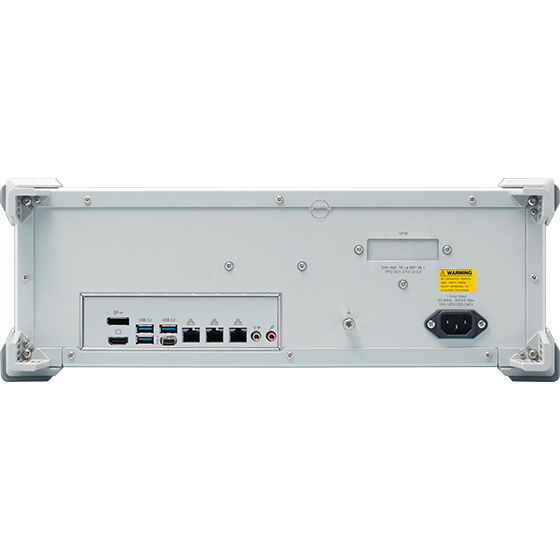

Built-in processing and Ethernet/GPIB remote-control capability support integration into automated development and production test systems.
Optical transceiver R&D and manufacturing test
10G to 1.6T optical-module physical-layer evaluation
NRZ and PAM4 Eye pattern analysis
PAM4 TDECQ evaluation
BER and receiver-sensitivity testing at supported BERT rates
Multichannel SFP, QSFP, CFP, OSFP and QSFP-DD testing
Active Optical Cable (AOC) and Direct Attach Cable (DAC) evaluation
TOSA and ROSA development and production test
High-speed optical engine and optical-device evaluation
Co-Packaged Optics and optical-engine waveform evaluation
Data-center optical interconnect development
Automated optical-module production test systems
MP2110A Specifications
| Instrument Type | Configurable BERT and Sampling Oscilloscope platform |
|---|---|
| Maximum BERT Channels | Up to 4 channels |
| Maximum Sampling Oscilloscope Channels | Up to 4 channels |
| BERT Operating Bit Rates | 24.3 Gbit/s to 28.2 Gbit/s; 9.5 Gbit/s to 14.2 Gbit/s with applicable option |
| Sampling Oscilloscope Bandwidth | Optical SMF: up to 60 GHz; optical SMF/MMF configurations: up to 35 GHz; electrical configurations: up to 40 GHz. Bandwidth depends on installed oscilloscope option. |
| Maximum PAM4 Optical Measurement Rate | Up to 120 Gbaud with applicable 60 GHz optical sampling oscilloscope configuration |
| Modulation Analysis | NRZ and PAM4 waveform analysis |
| Waveform Measurements | Eye pattern, Mask Margin, jitter, rise/fall time, extinction ratio, OMA and other amplitude/time measurements; PAM4 measurements including TDECQ with applicable configuration/software |
| Optical Module Application Range | 10G, 50G, 100G, 200G, 400G, 800G and 1.6T applications depending on installed configuration |
| Supported Device Types | SFP, QSFP, CFP, OSFP, QSFP-DD, AOC, DAC, TOSA, ROSA, high-speed optical engines and related optical devices |
| Transmission Applications | Ethernet, InfiniBand, Fibre Channel, eCPRI/RoE, CPRI, SDH/SONET and OTN |
| Remote Control | Ethernet and GPIB |
| System Architecture | Built-in PC for instrument control and measurement processing |
Understanding MP2110A 1.6T and PAM4 Test Capability
The MP2110A's application range extends to 1.6T optical modules, but the capabilities of the sampling oscilloscope and built-in BERT should be considered separately.
For next-generation optical transmitter evaluation, current MP2110A optical sampling oscilloscope configurations provide up to 60 GHz bandwidth and support PAM4 optical measurements up to 120 Gbaud. This enables waveform-quality and TDECQ evaluation for 200G/lane optical signals used in 800G and 1.6T-class optical transceivers.
The integrated MP2110A BERT operates within its specified bit-rate ranges of 24.3 to 28.2 Gbit/s and, with the applicable option, 9.5 to 14.2 Gbit/s. Therefore, the MP2110A should not be described as an integrated 120 Gbaud PAM4 BERT.
Applications requiring advanced high-speed electrical PAM4 BER generation and analysis, PCI Express, USB or other high-speed serial-bus testing should be evaluated separately using the appropriate Anritsu high-speed BERT platform.
