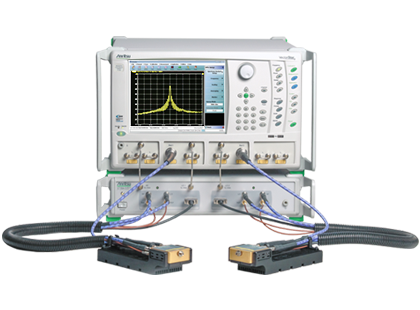

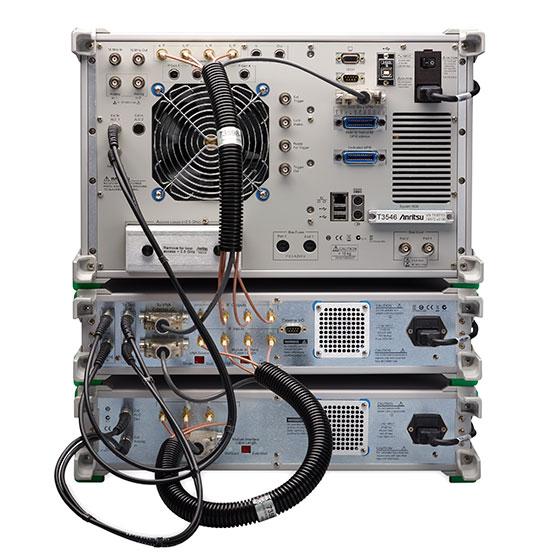

Anritsu ME7838 Series VectorStar Broadband Vector Network Analyzer
Anritsu VectorStar ME7838 Series broadband VNAs provide continuous 2-port coverage from 70 kHz to as high as 220 GHz, with banded millimeter-wave expansion up to 1.1 THz.
Contact Us
Broadband Vector Network Analysis from 70 kHz to 220 GHz
The Anritsu VectorStar ME7838 Series combines broadband RF, microwave, millimeter-wave, and sub-THz vector network analysis in a single measurement platform.
Current 2-port broadband configurations provide continuous single-sweep coverage from 70 kHz to 110 GHz with the ME7838EX, 125 GHz with the ME7838AX, 145 GHz with the ME7838D, and 220 GHz with the ME7838G. Banded millimeter-wave configurations can extend the system into waveguide bands up to 1.1 THz.
70 kHz
Broadband lower frequency limit
Up to 220 GHz
Continuous single-sweep broadband coverage
Up to 1.1 THz
Banded millimeter-wave extension
2-Port
Vector reflection and transmission measurements
Compact Anritsu millimeter-wave modules based on nonlinear transmission line technology are designed for stable high-frequency measurements and positioning on wafer probe stations. The platform is suited to demanding broadband characterization where RF, microwave, and millimeter-wave behavior must be evaluated without stitching together separate measurement systems.
Continuous Broadband Single-Sweep Measurement
Measure continuously from 70 kHz into the millimeter-wave and sub-THz region without combining measurement results from multiple independent VNA systems. Broadband configurations extend to 110 GHz, 125 GHz, 145 GHz, or 220 GHz depending on the selected ME7838 model.
High Dynamic Range at Millimeter-Wave Frequencies
The ME7838 platform is designed for high-sensitivity broadband characterization. Anritsu currently specifies 109 dB dynamic range at 110 GHz and 102 dB at 220 GHz on the ME7838 product page. Exact dynamic range varies with frequency, model, and system configuration.
Stable Broadband Calibration
Anritsu's broadband architecture and compact millimeter-wave modules are designed to improve calibration and measurement stability. Current Anritsu documentation cites 0.1 dB measurement stability over 24 hours for the broadband system architecture.
Compact Millimeter-Wave Modules
Anritsu nonlinear transmission line technology enables compact, lightweight millimeter-wave modules that can be positioned close to the device under test and integrated with major wafer probe stations.
Broad Power Control
VectorStar provides high available test-port power and millimeter-wave electronic power leveling for demanding device measurements. Anritsu lists available power of up to +14 dBm at the platform level; actual port power depends on frequency, configuration, and installed options.
Banded Millimeter-Wave Extension to 1.1 THz
When frequencies above the broadband coaxial configuration are required, the ME7838 platform can be configured with banded millimeter-wave modules providing waveguide-band measurements up to 1.1 THz.
On-wafer RF, microwave, mmWave, and sub-THz device characterization
Semiconductor device and component modeling
Broadband S-parameter characterization of components and subsystems
High-speed digital interconnect and signal integrity analysis
RF, microwave, and millimeter-wave material characterization with appropriate measurement fixtures or systems
Millimeter-wave and sub-THz research and device development
ME7838 Series Model Comparison
| Specification | ME7838EX | ME7838AX | ME7838D | ME7838G |
|---|---|---|---|---|
| Configuration | 2-Port Broadband VNA | 2-Port Broadband VNA | 2-Port Broadband VNA | 2-Port Broadband VNA |
| Continuous Single-Sweep Frequency Range | 70 kHz to 110 GHz | 70 kHz to 125 GHz | 70 kHz to 145 GHz | 70 kHz to 220 GHz |
| Broadband High-Frequency Interface | 1 mm coax output | 1 mm coax output | 0.8 mm coax output | 0.6 mm / G output |
| Vector Measurements | 2-port reflection and transmission measurements | 2-port reflection and transmission measurements | 2-port reflection and transmission measurements | 2-port reflection and transmission measurements |
| Banded Millimeter-Wave Extension | Up to 1.1 THz | Up to 1.1 THz | Up to 1.1 THz | Up to 1.1 THz |
| On-Wafer Measurement | Supported with compatible probe-station configuration | Supported with compatible probe-station configuration | Supported with compatible probe-station configuration | Optimized for broadband on-wafer measurement through 220 GHz with supported probe configuration |
| Upgrade Path | Upgradeable to higher-frequency ME7838 broadband configurations | Upgradeable to higher-frequency ME7838 broadband configurations | Configuration dependent | Highest current broadband ME7838 configuration |
Performance and Calibration Notes
| Dynamic Range | Frequency and configuration dependent. Anritsu lists platform dynamic range up to 142 dB and currently cites 109 dB at 110 GHz and 102 dB at 220 GHz for the ME7838 Series. |
|---|---|
| Available Test-Port Power | Frequency, model, and option dependent. Anritsu lists available power up to +14 dBm at the platform level. Refer to the applicable model Technical Data Sheet when a specific DUT power level is required. |
| Calibration and Measurement Stability | The broadband system architecture is designed for high calibration stability, with Anritsu citing 0.1 dB stability over 24 hours under the stated measurement conditions. |
| Calibration | Mechanical calibration, verification, probe-tip calibration, and broadband power-calibration solutions are available depending on the selected frequency range and measurement configuration. |
| Optional Measurement Capabilities | Available VectorStar options include advanced fixture extraction, time-domain analysis, pulse measurements, intermodulation measurements, and noise-figure measurement. Applicable options depend on system configuration. |
