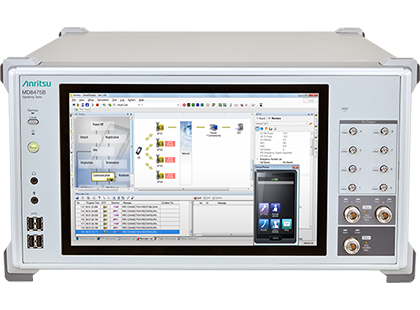

Anritsu MD8475B Signalling Tester

Type: Wireless Tester

Supplier / Manufacturer: Anritsu

Model: MD8475B

The Anritsu MD8475B is an all-in-one LTE and LTE-Advanced signalling tester and base station simulator for functional and performance testing of multimode wireless devices. It supports LTE FDD/TDD, carrier aggregation, W-CDMA/HSPA, GSM/GPRS/EGPRS, and TD-SCDMA/TD-HSPA environments, with SmartStudio software for VoLTE, CS fallback, handover, throughput, battery-consumption, and multi-cell testing. Its integrated RF architecture covers 350 MHz to 6.0 GHz, with configurations supporting up to eight TX and four RX RF paths.

Industries & Applications:

Download Catalog

All-in-One LTE signalling tester - LTE and Multimode Base Station Simulation

The Anritsu MD8475B provides a controlled cellular network environment for evaluating LTE and LTE-Advanced devices without relying on a live commercial network.

The platform combines base station simulation, RF interfaces, packet communication functions, and SmartStudio software in a single test environment. It supports LTE FDD/TDD and LTE-Advanced carrier aggregation together with W-CDMA/HSPA, GSM/GPRS/EGPRS, and TD-SCDMA/TD-HSPA, allowing multimode devices to be evaluated across cellular technologies and between cells.

350 MHz to 6.0 GHz Hardware RF frequency range

LTE 2CA to 5CA Carrier aggregation test configurations

Up to 8 TX / 4 RX Expanded RF configuration for advanced LTE testing

SmartStudio GUI-based signalling, service, mobility, and performance testing

SmartStudio simplifies test configuration by allowing network and UE conditions to be changed through a GUI rather than requiring a separate signalling scenario for every functional test. Applications include VoLTE and IMS service verification, CS fallback, handover and cell reselection, IP throughput, battery-consumption testing, WLAN offload, and automated regression testing.

LTE and LTE-Advanced Testing

Supports LTE FDD/TDD, 2×2 and 4×4 MIMO, and LTE-Advanced carrier aggregation configurations from 2CC through 5CC for functional and performance evaluation of wireless devices.

Multimode Cellular Support

In addition to LTE, configurable hardware and software support W-CDMA/HSPA/HSPA Evolution/DC-HSDPA, GSM/GPRS/EGPRS, and TD-SCDMA/TD-HSPA for multimode and inter-RAT testing.

SmartStudio GUI

SmartStudio MX847570B provides GUI-based control of base station parameters, signalling states, packet communications, and UE test conditions, reducing the need to build complex signalling scenarios for routine functional tests.

VoLTE and IMS Service Testing

A built-in CSCF server function supports VoLTE and other IMS service tests. Simple GUI-based operation is available for common tests, while optional IMS scripting supports more complex or irregular SIP sequences.

Multi-Cell and Mobility Testing

Reproduce Cell Selection and Reselection, Redirection, Cell Change, handover, and CS Fallback conditions to evaluate device behavior as network and RF conditions change.

Built-In IP Traffic Generation

The integrated traffic-generation environment supports LTE data-throughput evaluation without requiring the test throughput to depend entirely on an external PC and Ethernet traffic server configuration.

Battery-Consumption Test Environment

SmartStudio can reproduce RF, paging, packet-communication, and RRC-state conditions used for device power-consumption evaluation. SmartStudio Manager can coordinate test sequences and supported peripheral equipment for repeatable battery testing.

Automated Regression Testing

SmartStudio Manager MX847503A edits and executes test sequences automatically and continuously, supporting unattended functional regression tests and Pass/Fail reporting.

Integrated RF Front End

The MD8475B integrates the RF test environment into the base station simulator, with a 350 MHz to 6.0 GHz hardware frequency range and configurations supporting four TX/two RX as standard and up to eight TX/four RX with the applicable configuration.

LTE and LTE-Advanced UE functional testing

Carrier aggregation performance evaluation

VoLTE and IMS service testing

CS fallback testing

LTE and inter-RAT handover testing

Cell selection, reselection, and redirection testing

IP throughput evaluation

UE battery-consumption testing

Call connection reliability and stability testing

Low-RF-level communication testing

LTE / W-CDMA to WLAN offload testing

Automated UE regression testing

Multimode smartphone and wireless-device verification

Automotive telematics and cellular TCU functional testing

MD8475B Specifications

Product Type	Signalling Tester / Base Station Simulator
Primary Radio Technologies	LTE FDD/TDD, LTE-Advanced, W-CDMA/HSPA/HSPA Evolution/DC-HSDPA, GSM/GPRS/EGPRS, TD-SCDMA/TD-HSPA
LTE MIMO	2×2 MIMO, 4×4 MIMO
LTE-Advanced Carrier Aggregation	2CA, 3CA, 4CA, 5CA
Hardware RF Frequency Range	350 MHz to 6.0 GHz
Frequency Setting Resolution	100 kHz, depending on installed simulation software/configuration
RF Configuration	4 TX / 2 RX standard for the applicable CA configuration; up to 8 TX / 4 RX with applicable option/configuration
Maximum Cells	4 cells in the current Anritsu signalling-tester product classification
VoLTE / IMS	Supported through SmartStudio with built-in CSCF server; optional IMS scripting available for advanced SIP test sequences
Mobility / Multi-Cell Functions	Cell Selection / Reselection, Redirection, Cell Change, Handover, Inter-RAT testing, CS Fallback
LTE Data Throughput Environment	Up to DL 2 Gbps / UL 150 Mbps as specified by Anritsu; the 2 Gbps configuration requires two MD8475B units
W-CDMA Data Performance	DC-HSDPA up to 43.2 Mbps
Traffic Generation	Built-in IP traffic generator
WLAN Offload	LTE / W-CDMA to WLAN testing supported; separate WLAN access point required
SmartStudio	MX847570B GUI-based signalling and functional test environment
Test Automation	SmartStudio Manager MX847503A for automated and continuous test-sequence execution
Automation Test Library	More than 180 sample/test sequences documented by Anritsu
Display	12.1-inch color TFT LCD, WXGA 1280 × 800

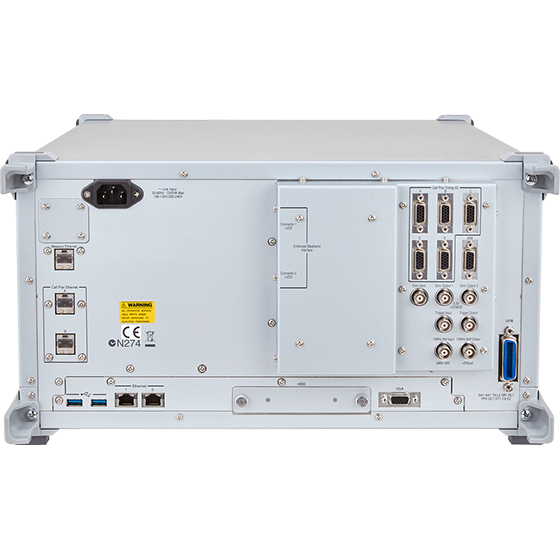

RF Main / Auxiliary Connectors	N-type female, 50 Ω
DL Output Connectors	SMA female, 50 Ω, DL Output 1 through 8
Network Interfaces	10BASE-T / 100BASE-TX / 1000BASE-T Ethernet
Other Interfaces	USB Type-A, GPIB, VGA, Trigger I/O, Sync I/O, audio interfaces
Dimensions	426 × 221.5 × 578 mm, excluding protrusions
Mass	Less than 40 kg with all options
Operating Temperature	+5 °C to +40 °C

Radio Technologies and Test Software

Technology / Function	MD8475B Support	Implementation Notes
LTE FDD / TDD	Supported	Includes 2×2 / 4×4 MIMO configurations
LTE-Advanced Carrier Aggregation	Supported	2CC / 3CC / 4CC / 5CC depending on installed hardware and software options
W-CDMA / HSPA	Supported	Includes HSPA Evolution and DC-HSDPA
GSM / GPRS / EGPRS	Supported	Requires applicable system hardware/software configuration
TD-SCDMA / TD-HSPA	Supported	Requires applicable system hardware/software configuration
VoLTE	Supported	SmartStudio built-in CSCF server provides IMS / SIP test environment
CS Fallback	Supported	Available as part of multi-system / mobility test configurations
WLAN Offload	Supported	Separate WLAN access point required
SmartStudio	MX847570B	GUI-based base station, signalling, packet, service, and mobility configuration
SmartStudio Manager	MX847503A	Automated test-sequence creation and continuous execution
IMS Script	Optional	Used for user-defined or abnormal SIP / IMS sequence testing
eCall Test Functions	Optional application solution	Requires applicable eCall software/options; not a standard MD8475B base function
