Anritsu ML2439A Multi-Channel RF Power Meter
Anritsu ML2439A is a benchtop RF power meter supporting up to four USB power-sensor channels, with peak, average/RMS, pulse, and statistical measurements depending on sensor.
Contact Us
Multi-Channel RF Power Measurement with Flexible USB Sensor Support
The Anritsu ML2439A is a benchtop RF power meter designed for simultaneous multi-channel power measurement using Anritsu USB power sensors.
The ML2439A provides two active measurement channels as standard and can be expanded to four channels with Option ML2439A-0004. Depending on the connected sensor, the platform supports CW, True RMS, peak, pulse, and statistical power measurements for RF and microwave applications.
2 to 4 Channels
Two channels standard with expansion to four active channels.
10 MHz to 50 GHz
Overall frequency coverage depends on the connected USB power sensor.
High-Speed Peak Analysis
Up to 100,000 measurements per second and 100 ps time resolution in supported configurations.

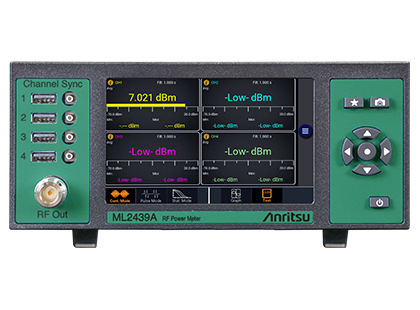

A 5-inch WVGA multi-touch display provides graphical and numeric measurement views, including continuous, pulse, and statistical display modes. LAN remote control is supported, while GPIB is available as an option for integration into automated test systems.
Expandable Multi-Channel Architecture
Provides two active measurement channels as standard and supports expansion to four channels with Option ML2439A-0004.
Flexible USB Power Sensor Support

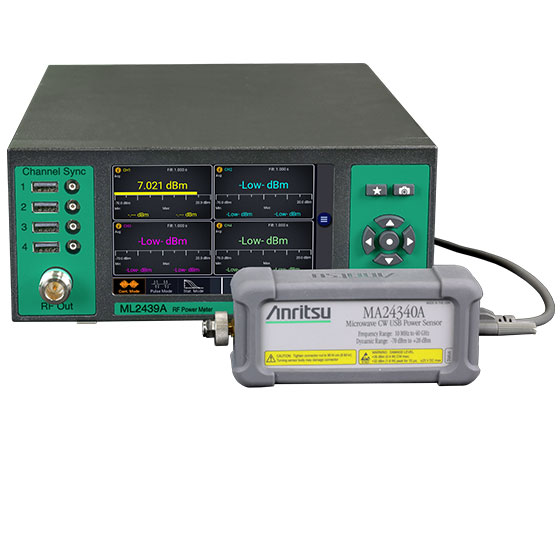

Supports compatible MA244xxA peak, MA243xxA CW, MA242xxA True RMS, and MA241xxA True RMS USB power sensors, allowing the measurement configuration to be selected for the required signal and frequency range.
Peak and Pulse Analysis
When used with compatible MA244xxA peak power sensors, the ML2439A supports peak, average/RMS and pulse measurements for narrow-pulse and wideband modulated signals.
CW and True RMS Measurement
MA243xxA CW sensors and compatible MA241xxA and MA242xxA True RMS sensors provide measurement configurations for CW, multi-tone and digitally modulated signals.
Pulse and Statistical Measurement Modes
Measurement processing includes automatic pulse measurements, marker measurements and statistical analysis with CCDF display capability.
Synchronous Multi-Channel Measurement
Compatible MA244xxA sensors support synchronized measurements across multiple channels for comparative pulse and timing analysis.
Trigger and Averaging Control
Trigger modes include Normal, Auto, Auto Peak-to-Peak and Free Run. Trace averaging can reduce displayed measurement noise during supported pulse and statistical measurement operation.
Touchscreen and Remote Operation
A 5-inch WVGA multi-touch interface supports graphical and numeric displays. LAN and SCPI remote control support automated test environments, with GPIB available as an option.
Integrated 50 MHz Test Source
A front-panel 50 MHz test source provides a convenient reference for checking supported power sensor operation.
RF and microwave power measurement in R&D laboratories
Radar design, verification, testing, and maintenance
Pulse parameter and peak power characterization
Wireless equipment production testing for Wi-Fi, Bluetooth, 4G/5G, and WiMAX systems
Digitally modulated signal power and CCDF analysis
CW and RMS power measurements
Semiconductor device nonlinearity testing
Compliance, calibration, and metrology laboratory measurements
EMC radiated immunity measurements
Automated production and ATE rack integration
ML2439A Specifications
| Model | ML2439A |
|---|---|
| Standard Measurement Channels | 2 channels |
| Maximum Measurement Channels | 4 channels with Option ML2439A-0004 |
| Compatible Sensor Families | MA244xxA Peak, MA243xxA CW, MA242xxA True RMS, and supported MA241xxA True RMS USB power sensors |
| Frequency Coverage | 10 MHz to 50 GHz overall, depending on connected power sensor |
| Measurement Types | CW, average/RMS, peak, pulse, and statistical measurements depending on connected sensor |
| Display | 5-inch WVGA multi-touch display |
| Display Modes | Continuous, Pulse, Statistical (CCDF) |
| Display Formats | Graphical power-vs-time or CCDF display and numeric text display |
| Automatic Measurements | Pulse, statistical, and marker measurements |
| Maximum Measurement / Acquisition Speed | 100,000 measurements per second |
| Maximum Time Resolution | 100 ps |
| Maximum Effective Sample Rate | 10 GS/s |
| Maximum Pulse Repetition Rate | 50 MHz |
| Trigger Modes | Normal, Auto, Auto Peak-to-Peak, Free Run |
| External Trigger Level | ±5 V or TTL |
| Remote Control | SCPI-1999.0 over LAN; GPIB available with Option ML2439A-0005 |
| Front Panel Interfaces | Four USB 2.0 Type-A ports, four SMB trigger ports for MA244xxA sensors, 50 MHz RF test source output |

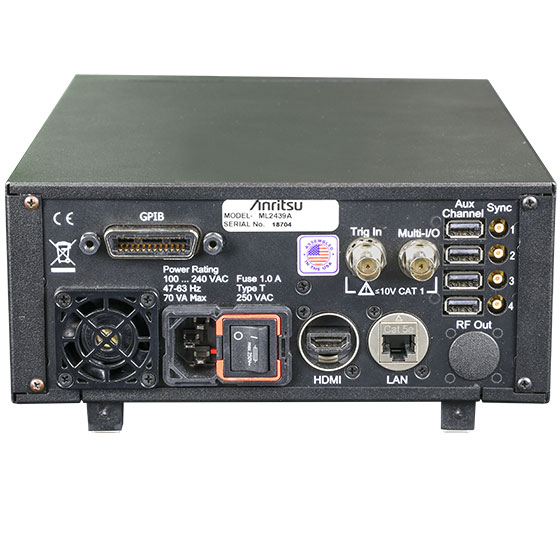

| Rear Panel Interfaces | LAN, USB 2.0, SMB trigger ports, external trigger input, Multi-I/O, HDMI, and optional GPIB |
| Test Source | 50 MHz, 0 dBm, ±0.1 dB typical |
| Dimensions (H × W × D) | 89 × 211 × 284 mm (3.5 × 8.3 × 11.2 in) |
| Weight | 2.2 kg (4.8 lb) |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Rated AC Input | 100 to 240 VAC, 50/60 Hz |
Compatible USB Power Sensor Families
ML2439A measurement frequency, power range, bandwidth, and supported measurement type depend on the connected Anritsu USB power sensor. The values below describe the compatible sensor families and are not fixed specifications of the ML2439A meter itself.
| Sensor Family | Supported Models | Measurement Type | Frequency Coverage |
|---|---|---|---|
| MA244xxA | MA24406A, MA24408A, MA24418A, MA24419A, MA24440A, MA24441A | Average/RMS, Peak, Pulse | 50 MHz to 40 GHz depending on model |
| MA243xxA | MA24330A, MA24340A, MA24350A | CW Average Power | 10 MHz to 50 GHz depending on model |
| MA242xxA | MA24208A, MA24218A | True RMS Average Power | 10 MHz to 18 GHz depending on model |
| MA241xxA | MA24108A, MA24118A, MA24126A | True RMS Average Power | 10 MHz to 26 GHz depending on model |
MA24103A, MA24105A, and MA24106A are excluded from ML2439A compatibility according to the current Anritsu Technical Data Sheet.
ML2439A Options
| ML2439A-0004 | Add two active measurement channels for a total of four channels |
|---|---|
| ML2439A-1004 | Retrofit option to add two active measurement channels |
| ML2439A-0005 | GPIB interface |
| ML2439A-1005 | Retrofit GPIB interface |
| ML2439A-0006 | External USB boot |
| ML2439A-1006 | Retrofit external USB boot |
