Portable 100G Network and Optical Transport Field Testing

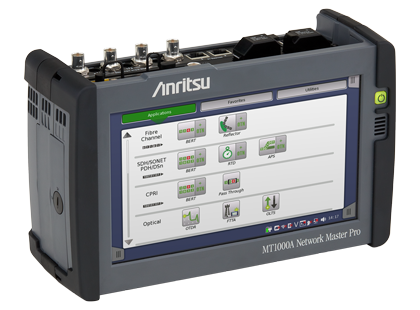

The Anritsu MT1000A Network Master Pro is a compact, battery-powered field test platform for installation, commissioning, maintenance, and troubleshooting of Ethernet and optical transport networks operating at rates up to 100 Gbps.
The modular MT1000A platform can be configured for Ethernet, OTN, eCPRI/RoE, CPRI, Fibre Channel, SDH/SONET, network synchronization, and optical-fiber measurements. Transport modules support network testing from legacy and low-rate interfaces through 100G, while optional OTDR modules add fiber fault location and optical installation verification to the same portable platform.
10 Mbps to 100 Gbps Ethernet
Field testing for access, metro, core, data-center, mobile backhaul, and transport networks
Multi-Technology Transport Testing
Supports OTN, Fibre Channel, SDH/SONET, eCPRI/RoE, CPRI, and OBSAI according to installed modules and options
Optional OTDR
Add single-mode or multimode fiber installation, fault-location, and maintenance measurements
Portable and Battery-Powered

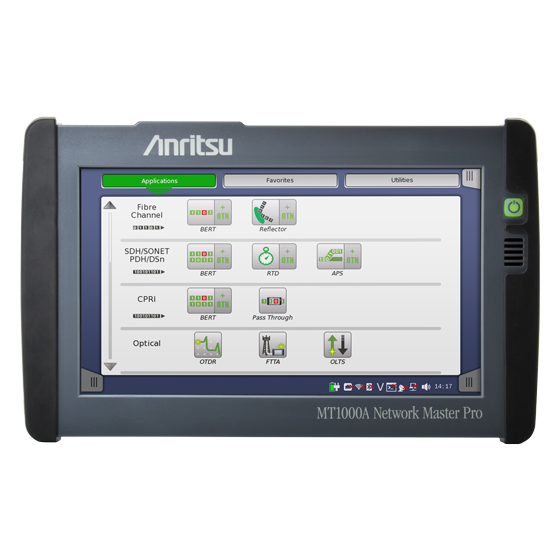

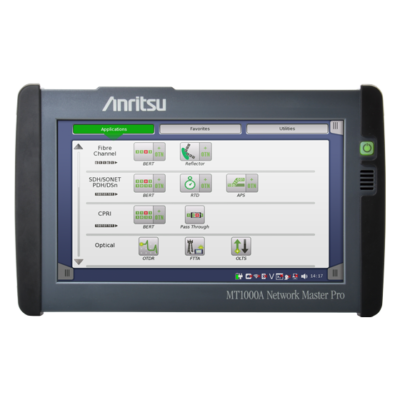

Designed for field installation and maintenance with an integrated 9-inch touch-panel interface
Built-in automated test workflows can execute predefined procedures, perform pass/fail evaluations, and generate reports without requiring an external controller. Timing options extend the platform for SyncE and PTP verification, while current software also supports 100ZR coherent-transceiver evaluation for emerging metro and optical transport deployments.
Ethernet Testing to 100 Gbps
Supports Ethernet testing at 10 Mbps, 100 Mbps, 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, and 100 Gbps for field commissioning, troubleshooting, and service verification.
Comprehensive OTN Testing
Supports OTN through OTU4, including Ethernet, CPRI, Fibre Channel, and SDH/SONET client mappings, multistage ODU mapping, FEC, ODU0, and ODUflex measurements.
Mobile Fronthaul and Backhaul
Supports eCPRI and IEEE 1914.3 RoE traffic up to 100 Gbps, CPRI up to 24.3302 Gbps, and OBSAI up to 6 Gbps for mobile transport installation and verification.
Fibre Channel and Legacy Transport
Supports Fibre Channel testing up to 16 Gbps and SDH/SONET testing through STM-64 / OC-192 for mixed-generation transport and storage network environments.
SyncE and PTP Testing
Network synchronization functions support Synchronous Ethernet through 25 GigE and PTP time/phase verification, with high-accuracy GNSS-based measurements available using the appropriate timing module and options.
Optional OTDR Fiber Testing
Multiple OTDR modules support single-mode and multimode fiber measurements at wavelengths including 850, 1300, 1310, 1550, 1625, and 1650 nm depending on the selected module.
Automated Field Test Workflows
Built-in automated testing can load predefined procedures, execute measurements, perform pass/fail evaluation, save results, and support standardized reporting without an external PC controller.
Modular Field Architecture
Configure the MT1000A with 10G or 100G transport modules, OTDR modules, CPRI RF modules, and network timing hardware according to the required field application.
100ZR Coherent Transceiver Evaluation
Current MT1000A software supports evaluation of compatible 100ZR coherent optical transceivers for metro, access, and data-center interconnect installation and maintenance applications.
100G Ethernet network installation and commissioning
Carrier Ethernet service activation and troubleshooting
Metro and core OTN installation and maintenance
Mobile backhaul verification
eCPRI and RoE mobile fronthaul testing
CPRI and OBSAI fronthaul verification
Fibre Channel and storage-area network testing
SDH / SONET network maintenance
SyncE and PTP network synchronization verification
Optical fiber installation and fault location
Metro WDM optical infrastructure maintenance
100ZR coherent optical transceiver verification
Data-center and data-center interconnect testing
MT1000A Specifications
| Product Type | Portable Network / Optical Transport / OTDR Field Test Platform |
|---|---|
| Ethernet Rates | 10 Mbps, 100 Mbps, 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps |
| Maximum Ethernet Rate | 100 Gbps |
| OTN | Up to OTU4 / 100G; ODU0 and ODUflex; multistage mapping and FEC support |
| SDH / SONET | Up to STM-64 / OC-192 |
| Fibre Channel | Up to 16 Gbps |
| eCPRI / RoE | Up to 100 Gbps / IEEE 1914.3 |
| CPRI | Up to 24.3302 Gbps |
| OBSAI | Up to 6 Gbps |
| Synchronous Ethernet | Up to 25 GigE |
| PTP / Time Synchronization | Supported; high-accuracy GNSS-referenced measurements require applicable timing module/options |
| OTDR | Optional MU100020A / MU100021A / MU100022A / MU100023A modules |
| User Interface | 9-inch color touch panel |
| Field Operation | Portable, battery-powered operation |
| Automation | Built-in scenario-based automated testing and pass/fail evaluation |
Configure the Platform for Transport, Fiber, or Timing Tests
The MT1000A is a modular field test platform. Measurement capability depends on the transport, optical, timing, and software modules installed in the main unit.

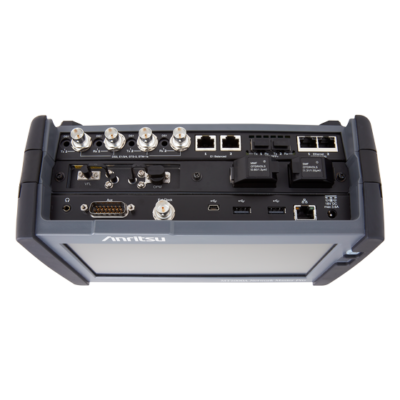

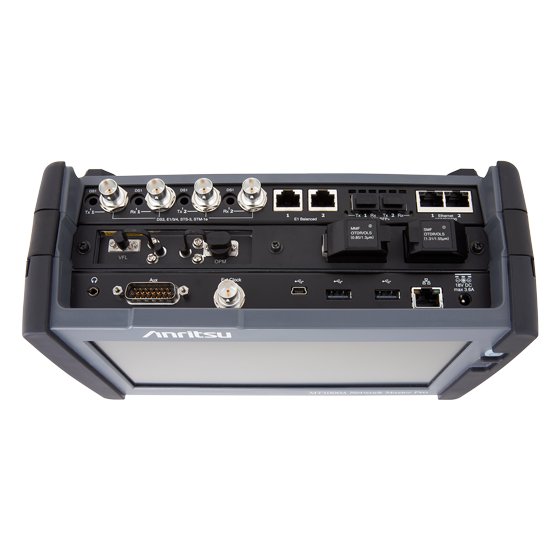

The MU100010A1 10G Multirate Module supports transport testing through 10 Gbps, while the MU100011A 100G Multirate Module extends Ethernet and transport measurements through 100 Gbps. Optional OTDR modules add optical-fiber fault location and installation testing to the same field platform.
MU100010A1
10G Multirate Module for network and transport testing through 10 Gbps
MU100011A
100G Multirate Module supporting network testing through 100 Gbps
MU10002xA
OTDR module family for single-mode and multimode optical-fiber installation and maintenance
MU100090B
High Performance GNSS Disciplined Oscillator for advanced network synchronization measurements
Transport and OTDR capabilities can be combined in selected MT1000A configurations, allowing technicians to perform data-network quality testing and optical-fiber diagnostics using one portable platform. Required module combinations and software options should be confirmed for the intended measurement application.
MT1000A OTDR Module Comparison
| Module | Fiber Type | Measurement Wavelengths | Typical Application |
|---|---|---|---|
| MU100020A | Single Mode | 1310 / 1550 nm | General single-mode fiber installation and maintenance |
| MU100021A | Single Mode / Multimode | 1310 / 1550 nm SM; 850 / 1300 nm MM | Mixed single-mode and multimode fiber environments |
| MU100022A | Single Mode | 1310 / 1550 / 1625 nm | High-dynamic-range fiber and maintenance measurements |
| MU100023A | Single Mode | 1310 / 1550 / 1650 nm | Live-fiber and optical network maintenance applications |
