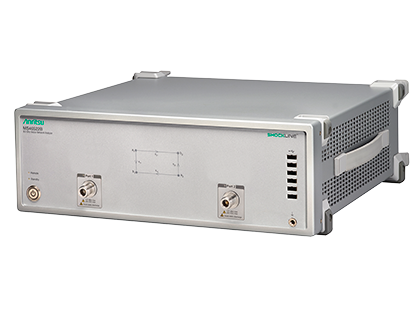

Anritsu MS46522B ShockLine VNA

Type: Network Analyzer

Supplier / Manufacturer: Anritsu

Model: MS46522B

The Anritsu ShockLine MS46522B is a 2-port performance vector network analyzer for RF, microwave, and E-band S-parameter measurements. Frequency configurations cover 50 kHz to 8.5 GHz, 20 GHz, or 43.5 GHz, with dedicated tethered E-band models covering 55 GHz to 92 GHz. Designed for passive-device R&D and production testing, the MS46522B combines high dynamic range, variable test-port power, fast sweeps, time-domain options, calibration tools, and LAN-based automation.

Industries & Applications:

MS46522B ShockLine VNA is 2-Port RF and Microwave VNA for R&D and Production Test

The Anritsu ShockLine MS46522B is a 2-port performance vector network analyzer designed for accurate and efficient S-parameter characterization of passive RF and microwave devices in engineering and production environments.

Broadband configurations span 50 kHz to 8.5 GHz, 20 GHz, or 43.5 GHz, while dedicated tethered E-band configurations cover 55 GHz to 92 GHz. This range of configurations allows the MS46522B platform to address component characterization, cable and interconnect testing, filters, automotive radar-related devices, 5G mmWave components, and system integration measurements.

2-Port S-Parameter Analysis Measure forward and reverse transmission and reflection characteristics including S11, S21, S12, and S22.

50 kHz to 92 GHz Configurations Select broadband RF/microwave configurations through 43.5 GHz or dedicated 55 GHz to 92 GHz E-band configurations.

Production-Oriented Performance Fast sweep speed, wide dynamic range, and variable test-port power support demanding passive-device measurement and automated production workflows.

Time-Domain and De-Embedding Options Optional time-domain analysis, time gating, Advanced Time Domain, and Universal Fixture Extraction extend the platform beyond basic frequency-domain measurements.

The MS46522B integrates its computer and power supply in a compact 3U chassis and uses LAN connectivity, a common ShockLine GUI, SCPI commands, software drivers, and programming environments for integration into automated test systems.

Complete 2-Port S-Parameter Measurement

Characterize transmission and reflection behavior using S11, S21, S12, and S22 measurements for RF and microwave components, cables, interconnects, and other two-port devices.

Broadband Coverage to 43.5 GHz

Choose 50 kHz to 8.5 GHz, 20 GHz, or 43.5 GHz frequency configurations for RF and microwave device characterization. The 43.5 GHz configuration uses Extended K test ports.

Dedicated E-Band Testing to 92 GHz

Options 82 and 83 provide 55 GHz to 92 GHz measurement coverage with WR-12 interfaces and tethered source/measurement modules for E-band and millimeter-wave applications.

High Dynamic Range

Broadband configurations provide up to at least 140 dB specified system dynamic range in applicable lower-frequency bands, supporting measurement of high-loss devices and low-level transmission responses.

Variable Test-Port Power

Broadband configurations provide adjustable test-port power over a wide range, allowing stimulus levels to be optimized for different devices and measurement conditions.

Fast Measurement Speed

Typical measurement speed of 30 microseconds per point at the widest IF bandwidth supports high-throughput engineering and production measurements.

Time Domain with Time Gating

Option 002 adds time-domain analysis and time gating for locating discontinuities and separating unwanted responses from the measurement.

Advanced Signal Integrity Tools

Option 022 Advanced Time Domain provides file-based signal-integrity analysis tools, while Option 024 Universal Fixture Extraction supports fixture de-embedding workflows.

SmartCal and Flexible Calibration Methods

Support for SmartCal and other established VNA calibration methods helps reduce setup time and move the measurement reference plane to the required DUT interface.

LAN and SCPI Automation

LAN remote control, SCPI command programming, software drivers, and a common ShockLine software environment simplify integration into automated production and engineering test systems.

RF and microwave passive-device R&D

Automated production and manufacturing test

Filters, attenuators, couplers, isolators, and circulators

RF connectors and cable assemblies

High-speed data interconnect characterization

5G mmWave component testing

Automotive radar components and materials

E-band component production testing

Antenna and OTA chamber measurement setups

System calibration and path-loss characterization

S-parameter and time-domain characterization

Fixture de-embedding and signal-integrity analysis

MS46522B Frequency Configuration Comparison

Configuration	MS46522B-010	MS46522B-020	MS46522B-043	MS46522B-082	MS46522B-083
Frequency Range	50 kHz to 8.5 GHz	50 kHz to 20 GHz	50 kHz to 43.5 GHz	55 GHz to 92 GHz	55 GHz to 92 GHz
Architecture	2-port broadband VNA	2-port broadband VNA	2-port broadband VNA	2-port tethered E-band VNA	2-port tethered E-band VNA
Test-Port Interface	Type N	Type K	Extended K	WR-12	WR-12
Tether Length	—	—	—	1 meter	5 meters
Primary Positioning	RF component and production testing	RF / microwave component testing	Microwave component and interconnect testing	E-band bench and production testing	E-band OTA and chamber applications
Time Domain Option	Available	Available	Available	Available	Available
Bias Tee Option	Option 061 available	—	—	—	—

MS46522B Measurement Performance and Functions

Measurement Ports	2
S-Parameters	S11, S21, S12, and S22
Broadband Dynamic Range	≥140 dB from 50 MHz to 2 GHz; ≥130 dB from 2 GHz to 6 GHz; ≥117 dB from 6 GHz to 40 GHz
Broadband Test-Port Power	Variable; up to +15 dBm depending on frequency and configuration
Typical Measurement Speed	30 μs/point at widest IF bandwidth
Maximum Measurement Points	20,000
Frequency Sweep Types	Linear, logarithmic, CW, and segmented
Power Sweep	Linear power sweep supported on broadband configurations
Time Domain	Option 002 Time Domain with Time Gating
Advanced Time Domain	Option 022
Fixture De-Embedding	Option 024 Universal Fixture Extraction (UFX)
Calibration Methods	SOLT, SOLR, SSLT, SSST, LRL/LRM, waveguide, microstrip, and Thru Update; AutoCal/SmartCal supported on applicable broadband configurations
Remote Control	LAN
Programming	SCPI command interface and ShockLine software drivers
Chassis	Compact 3U chassis with integrated computer and power supply
