High-Performance Spectrum Analysis for Field RF Measurements

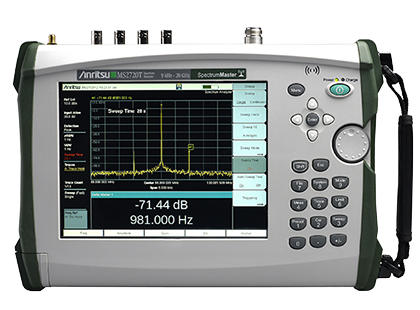

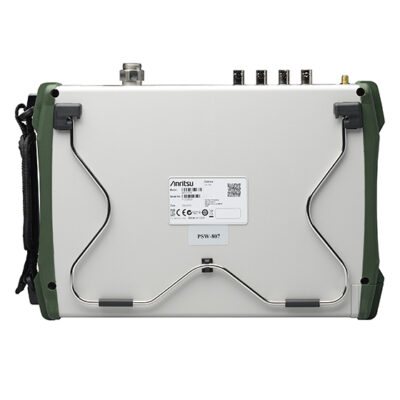

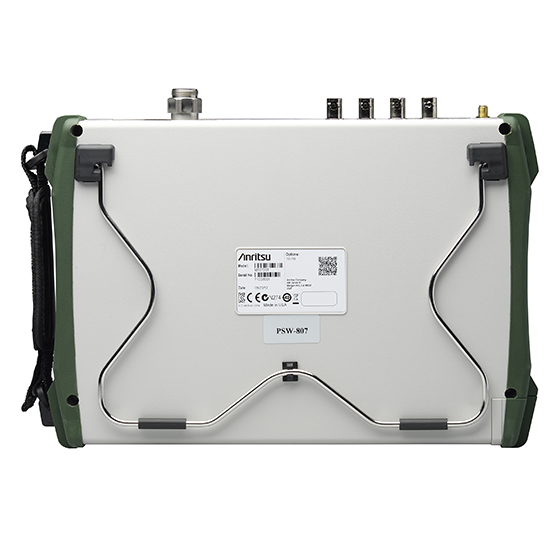

The Anritsu MS2720T Spectrum Master combines high-performance spectrum analysis with a battery-powered handheld platform for RF, microwave, interference, and wireless network measurements in the field.
Current MS2720T configurations provide continuous frequency coverage from 9 kHz to 9 GHz, 13 GHz, or 20 GHz. The instrument delivers greater than 106 dB dynamic range in a 1 Hz resolution bandwidth, displayed average noise level as low as -164 dBm, and phase noise of -112 dBc/Hz at a 10 kHz offset from a 1 GHz carrier.
Up to 20 GHz
Current frequency configurations cover 9 kHz to 9 GHz, 13 GHz, or 20 GHz.
-164 dBm DANL
High sensitivity supports weak-signal and interference measurements in the field.
-112 dBc/Hz Phase Noise
Low phase noise at a 10 kHz offset from 1 GHz supports demanding RF spectrum measurements.
Optional Tracking Generator
Full-band tracking generator configurations are available through 20 GHz for two-port scalar measurements.
Optional measurement capabilities expand the MS2720T for interference analysis, coverage mapping, GPS-assisted measurements, channel scanning, LTE and other wireless standards, AM/FM/PM analysis, power measurements, and PIM hunting. Its touchscreen interface, field-replaceable Li-Ion battery, and operation from -10 °C to +55 °C support installation, maintenance, troubleshooting, and spectrum monitoring outside the laboratory.
Frequency Coverage up to 20 GHz
Current MS2720T configurations provide continuous spectrum analysis from 9 kHz to 9 GHz, 13 GHz, or 20 GHz for field RF and microwave measurements.
High Sensitivity and Dynamic Range
The MS2720T provides greater than 106 dB dynamic range in a 1 Hz RBW and displayed average noise level as low as -164 dBm for detecting and evaluating low-level signals.
Low Phase Noise
Phase noise of -112 dBc/Hz at a 10 kHz offset from 1 GHz supports accurate evaluation of closely spaced RF signals and transmitter performance.
Standard Full-Band Preamplifiers
Full-band preamplifiers are standard, improving sensitivity across the supported frequency range for weak-signal and interference measurements.
Fast Spectrum Sweeps
Fast sweep mode operates up to 100 times faster than Performance mode, while Burst Detect mode provides enhanced capture performance for short-duration signals within a 15 MHz span.
Optional Interference Analysis
The Interference Analyzer option adds spectrogram, signal-strength, RSSI, and interference mapping tools for locating and characterizing unwanted RF activity.
Tracking Generator up to 20 GHz
Optional full-band tracking generators support scalar two-port measurements of devices such as filters, attenuators, amplifiers, and cables through the configured frequency range.
Optional Wireless Signal Measurements
Optional measurement packages support LTE FDD/TDD and LTE-Advanced as well as GSM/GPRS/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+, CDMA/EV-DO, NB-IoT, and WiMAX measurements.
GPS-Assisted Field Measurements
The optional GPS receiver supports improved frequency accuracy and geo-tagged data collection and is required for functions such as coverage mapping.
Designed for Field Operation
An 8.4-inch touchscreen, Li-Ion battery with approximately three hours of typical operation, and -10 °C to +55 °C operating temperature range support field installation and maintenance work.
RF Interference Hunting and Troubleshooting
Spectrum Monitoring and Spectrum Clearing
Wireless Network Installation and Maintenance
LTE and Cellular Signal Measurements
Microwave Backhaul Testing
Transmitter Spectrum Analysis
Signal Strength and Coverage Mapping
Filter, Cable, Amplifier, and Attenuator Measurements
Broadcast AM and FM Measurements
PIM Hunting and RF Site Maintenance
MS2720T Model Comparison
| Specification | MS2720T-0709 | MS2720T-0713 | MS2720T-0720 |
|---|---|---|---|
| Frequency Range | 9 kHz to 9 GHz | 9 kHz to 13 GHz | 9 kHz to 20 GHz |
| Tracking Generator Option | MS2720T-0809 100 kHz to 9 GHz | MS2720T-0813 100 kHz to 13 GHz | MS2720T-0820 100 kHz to 20 GHz |
| Dynamic Range | >106 dB in 1 Hz RBW at 2.4 GHz | ||
| Maximum Measurement Range | DANL to +30 dBm | ||
| Resolution Bandwidth | 1 Hz to 10 MHz | ||
| Input Attenuation | 0 to 65 dB in 5 dB steps | ||
| Phase Noise at 1 GHz | -112 dBc/Hz typical at 10 kHz offset | ||
| Amplitude Accuracy | ±0.5 dB typical | ||
| Display | 8.4-inch touchscreen, 800 × 600 | ||
| Battery | Rechargeable Li-Ion; approximately 3 hours typical operation | ||
| Operating Temperature | -10 °C to +55 °C | ||
| Environmental | MIL-PRF-28800F Class 2 | ||
| Dimensions | 315 × 211 × 77 mm (12.4 × 8.3 × 3.0 in) | ||
| Weight | 3.7 to 4.4 kg (8.1 to 9.8 lb), depending on frequency and tracking generator configuration | ||
Selected Measurement and Field Options
| MS2720T-0809 | 100 kHz to 9 GHz Tracking Generator; requires Option 709 |
|---|---|
| MS2720T-0813 | 100 kHz to 13 GHz Tracking Generator; requires Option 713 |
| MS2720T-0820 | 100 kHz to 20 GHz Tracking Generator; requires Option 720 |
| MS2720T-0009 | RF and Demodulation Hardware |
| MS2720T-0019 | High-Accuracy Power Meter using a compatible USB power sensor |
| MS2720T-0024 | I/Q Waveform Capture; requires Option 9 |
| MS2720T-0025 | Interference Analyzer; Option 31 is required for interference mapping |
| MS2720T-0027 | Channel Scanner |
| MS2720T-0031 | GPS Receiver; compatible GPS antenna sold separately |
| MS2720T-0089 | Zero-Span IF Output |
| MS2720T-0090 | Gated Sweep |
| MS2720T-0431 | Coverage Mapping; requires Option 31 |
| MS2720T-0444 | EMF Measurement System |
| MS2720T-0509 | AM/FM/PM Analyzer |
| MS2720T-0880 | GSM/GPRS/EDGE RF Measurements; requires Option 9 |
| MS2720T-0881 | W-CDMA/HSPA+ Measurements; requires Option 9 |
| MS2720T-0882 | TD-SCDMA/HSPA+ Measurements; requires Option 9 |
| MS2720T-0883 | LTE FDD/TDD Measurements; requires Option 9 |
| MS2720T-0886 | 256 QAM Demodulation for LTE Measurements; requires Option 883 |
| MS2720T-0887 | NB-IoT Analyzer; requires Option 9 |
| MS2720T-0884 | CDMA2000 1X and EV-DO Measurements; requires Option 9 |
| MS2720T-0885 | Fixed and Mobile WiMAX Measurements; requires Option 9 |
Available measurement capability depends on the installed frequency, hardware, and software options. Confirm the required frequency range and measurement functions when configuring the MS2720T.
