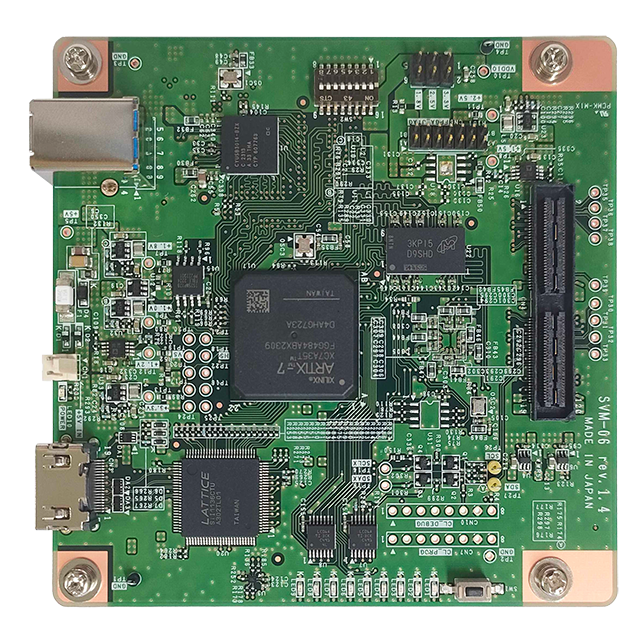

The NetVision SVO-06 is a MIPI CSI-2 generator and camera emulation board that converts USB 3.0 video into configurable MIPI output for ECU, image-processor, ADAS, and automotive camera-system development.
The NetVision SVO-06 is a MIPI CSI-2 generator designed to reproduce recorded or computer-generated video as configurable camera signals for ECU, image-processor, and automotive vision-system development.
Video files stored on a Windows PC are transferred through USB 3.0 and converted into MIPI CSI-2 output. This allows development and validation to continue using simulated camera data even when the target camera module or CMOS image sensor is unavailable or still under development.
Output resolution, frame timing, blanking, MIPI lane configuration, lane rate, pixel format, and Virtual Channel can be configured to reproduce different camera-output conditions.
The SVO-06 can also be combined with compatible NetVision serializer boards to create automotive SerDes camera-emulation environments for ECU and in-vehicle video-system testing.
Generates MIPI CSI-2 video using 1, 2, or 4 data lanes with configurable data rates from 600 to 1500 Mbps per lane and total output bandwidth up to 6.0 Gbps.

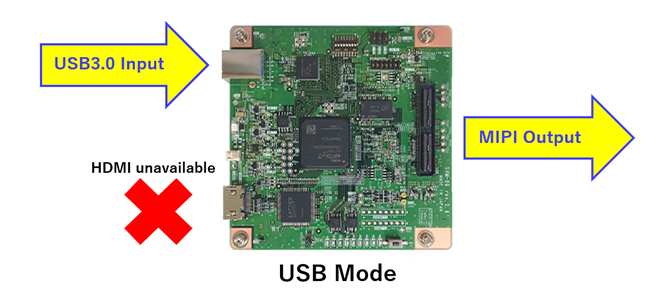

Transfers video from a Windows PC through USB 3.0, allowing recorded and computer-generated image data to be reproduced as MIPI camera output.
Supplies repeatable MIPI video to ECUs, DSPs, ISPs, and other image-processing devices without requiring the target camera or CMOS image sensor.
Allows output timing to be adjusted at the pixel-clock level, including blanking periods, to reproduce different MIPI camera timing conditions.
Supports YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, and RAW20 for a broad range of camera and image-processing development environments.
Supports MIPI CSI-2 Virtual Channels 0 through 3 for development and validation of multi-stream camera and image-processing systems.
Provides one I2C channel and 16-bit GPIO with individually configurable input and output direction for integration with cameras and peripheral devices.
Supports both Continuous Clock and Non-Continuous Clock MIPI CSI-2 operation for compatibility with different target-device configurations.

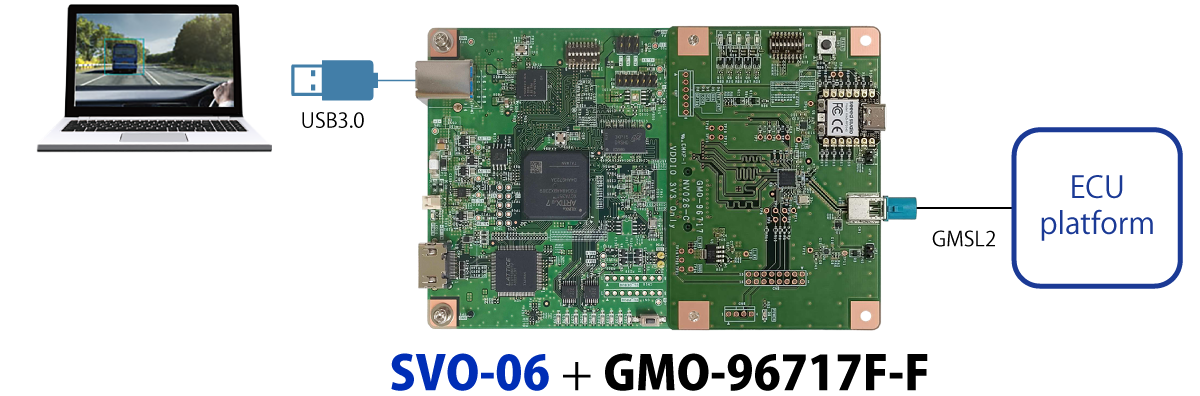

Can be combined with compatible NetVision serializer boards to generate test video for GMSL and other automotive SerDes camera-interface environments.
Multiple SVO-06 boards can optionally combine differently sized video streams and generate them as a single MIPI video output.
Building an automotive SerDes test environment? Combine the SVO-06 with compatible NetVision serializer interface boards for automotive camera and ECU evaluation. View NetVision SerDes Interface Boards →
| Video Input Interface | USB 3.0 (Windows) |
|---|---|
| Video Output Interface | MIPI CSI-2; Continuous Clock and Non-Continuous Clock supported |
| Standard MIPI Configuration | 4 data lanes + 1 clock lane |
| MIPI Data Lanes | 1, 2, or 4 lanes; 3-lane output is not supported |
| Data Rate per Lane | 600 to 1500 Mbps |
| MIPI Clock Frequency | 300 to 750 MHz |
| Maximum Input Resolution | 8190 × 4095 pixels; within 2.4 Gbps in USB mode |
| Maximum Output Resolution | 8190 × 4095 pixels |
| Maximum Output Bandwidth | 6.0 Gbps |
| Supported Pixel Formats | YUV422 8-bit, RGB24, RAW8, RAW10, RAW12, RAW16, RAW20 |
| Synchronization | Frame Start / Frame End |
| I2C | 1 channel; 100 / 200 / 400 kHz |
| GPIO | 16-bit; input / output direction configurable for each bit |
| Other Functions | Pixel-clock-level video output timing including blanking; Virtual Channel 0–3 |
| Interface Connector | 120-pin QSH-060-01-L-D-A-K-TR |
| FPGA | AMD Xilinx Artix-7 XC7A35T; Lattice CrossLink LIF-MD6000 |
| Frame Memory | 256 MB DDR3-SDRAM |
| USB Controller | Infineon EZ-USB FX3 |
| Power Input | USB bus power or dedicated 2-pin 5 V connector |
| Dimensions | 101.6 × 101.6 × 25.7 mm |
| Windows Software | NVFilePlayer, SVMCtl, SVMUpdater |
