Integrated Automatic Testing for Multi-Lead Coil Products

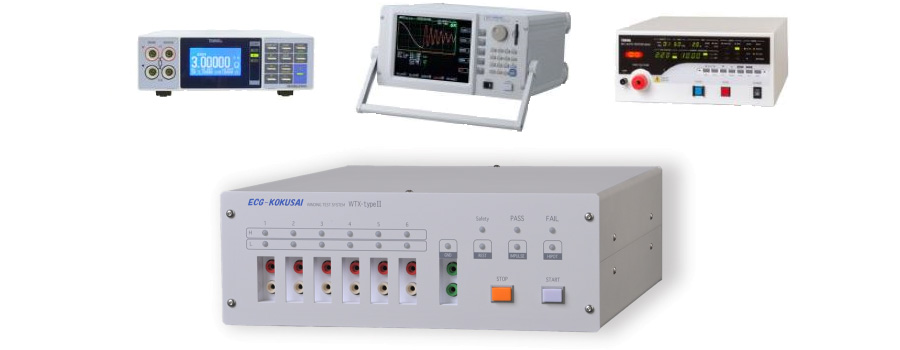

The ECG KOKUSAI WTX-type II is an integrated winding test system for automating multiple electrical inspections of coils and winding products using a DWX impulse winding tester as the central controller.
The system coordinates the WTX switching unit with compatible resistance meters and withstand-voltage / insulation-resistance testers, allowing multiple electrical tests to be performed through an automated test sequence.
6 Test Leads
Supports coils with up to six lead wires
18 Steps
Maximum programmable test sequence
4 Test Functions
Impulse, DC resistance, AC withstand, and insulation resistance
RS-232C + I/O
External control and system integration
Hi and Lo connection polarity can be configured independently for each test step, providing flexible switching for multi-terminal coils. The system also includes an interlock function for automated test operation.

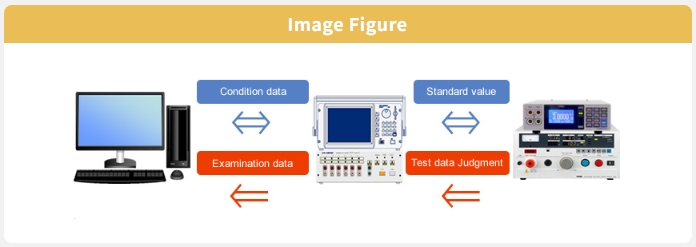

Test data can be acquired by connecting a PC or PLC, while condition data can be registered for up to 99 product configurations, including 50 stored on Compact Flash media.
For broader winding-test selection,
see the Impulse Winding & Coil Testing Solutions →
Integrated Multi-Test Automation
Uses a DWX impulse winding tester as the controller to coordinate the WTX switching unit, resistance meter, and withstand-voltage / insulation-resistance test equipment.
Up to 6 Test Leads
Six test cables support winding products with up to six lead wires, extending the range of multi-terminal coils that can be tested.
18-Step Test Sequences
Supports up to 18 test steps, with up to six steps allocated to each supported test section.
Flexible Hi / Lo Switching
Hi and Lo connection polarity can be configured independently at each step for flexible multi-terminal test-circuit setup.
Impulse Winding Test Integration
Supports compatible DWX impulse winding testers including DWX-01A and DWX-05A / DWX-05PD for master-waveform comparison testing.
DC Resistance Test Integration
Supports manufacturer-specified compatible resistance meters with RS-232C control for automated DC resistance testing.
Withstand and Insulation Test Integration
Compatible withstand-voltage and insulation-resistance testers can be controlled through RS-232C or external I/O depending on the instrument configuration.
PC / PLC Data Acquisition
Connection to a PC or PLC allows measurement data to be acquired as part of the automated winding-test workflow.
Need an all-in-one tester with the measurement functions built into one unit? See the ECG KOKUSAI WTS-05 .
Multi-lead coil automated testing
Motor winding production inspection
Integrated impulse winding testing
Automated DC resistance testing
AC withstand-voltage test integration
Insulation resistance test integration
PC-controlled winding inspection
PLC-integrated production testing
WTX-type II Specifications
| Maximum Test Steps | 18 steps; up to 6 steps for each test section |
|---|---|
| System Control | RS-232C control and external I/O control |
| Condition Registration | 99 product configurations, including 50 stored on Compact Flash card |
| Test Leads | 6 |
| Connection Configuration | Hi / Lo polarity independently configurable for each test step |
| Impulse Tester Compatibility | DWX-01A, DWX-05A, or DWX-05PD |
| Impulse Test Voltage | DWX-01A: 50 V to 1,000 V; DWX-05A / DWX-05PD: 0.5 kV to 5.0 kV |
| Impulse Judgment | Comparison with master waveform |
| Impulse Test Time | 0.5 seconds per step |
| Impulse Master Waveform Storage | Up to 700 waveforms stored on Compact Flash card |
| DC Resistance Test | Compatible external resistance meters controlled through RS-232C |
| DC Resistance Test Time | 0.5 seconds per step |
| Insulation / Withstand Test | Compatible external instruments controlled by RS-232C or external I/O |
| Safety | Interlock function |
| Dimensions | 342 (W) × 120 (H) × 399 (D) mm, excluding protruding parts |
| Weight | Approx. 7.0 kg |
