All-in-One Testing for Coils and Winding Products

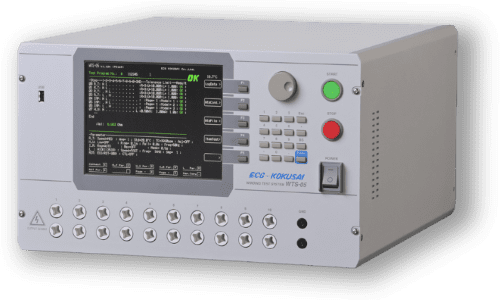

The ECG KOKUSAI WTS-05 is an integrated coil winding test system that combines four essential electrical tests in a single platform.
The WTS-05 performs impulse testing, DC resistance measurement, AC withstand-voltage testing, and insulation-resistance testing without requiring separate standalone testers for each measurement.
4 Tests in One
Impulse, DC resistance, AC withstand, and insulation resistance
10CH Switching
Flexible Hi / Lo test-circuit configuration
Up to 5 kV
Impulse and AC withstand capability
100 Steps
Maximum programmable test sequence
The built-in 10-channel switching circuit allows the Hi and Lo connection polarity to be selected independently for each test step, supporting automated testing of multi-terminal winding products.
Optional and expandable functions include impulse partial-discharge testing using a PD sensor, inductance measurement with specified external instruments, and rotational-direction testing with compatible equipment.
For broader winding-test selection,
see the Impulse Winding & Coil Testing Solutions →
Four Tests in One System
Combines impulse testing, DC resistance measurement, AC withstand-voltage testing, and insulation-resistance testing in one unit.
10-Channel Circuit Switching
Built-in 10-channel switching allows Hi and Lo polarity to be configured independently for each test step.
Up to 100 Test Steps
Supports test sequences of up to 100 steps for automated inspection of multi-terminal winding products.
0.5 kV to 5.0 kV Impulse Testing
Provides impulse test voltage from 0.5 kV to 5.0 kV in 0.1 kV steps at the manufacturer-specified 1 kΩ resistive load.
DC Resistance Measurement
Multiple resistance ranges support measurements from 1.000 mΩ to 350.00 Ω together with temperature measurement.
AC Withstand-Voltage Testing
Supports AC withstand testing from 0.2 kV to 5.0 kV at 50 or 60 Hz with a rated output capacity of 100 VA.
Insulation Resistance Testing
Provides selectable DC test voltages from 25 V to 1,000 V and an insulation-resistance measurement range up to 9,990 MΩ.
Expandable Test Capability
Supports optional impulse partial-discharge testing and integration with specified instruments for inductance and rotational-direction testing.
Need dedicated high-resolution impulse waveform testing? See the ECG KOKUSAI DWIT-05 .
Multi-terminal coil testing
Motor winding electrical testing
Transformer winding testing
Coil production inspection
Impulse winding evaluation
DC resistance inspection
AC withstand-voltage testing
Insulation resistance testing
WTS-05 Specifications
| Impulse Test Voltage | 0.5 kV to 5.0 kV in 0.1 kV steps* |
|---|---|
| Impulse Judgment | Area, Differential Area, Flutter, or Laplacian |
| Impulse Test Inductance | 10 µH or higher |
| DC Resistance Ranges | 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω |
| DC Resistance Measurement | 1.000 mΩ to 350.00 Ω |
| Temperature Measurement | -19.9 to 199.9°C |
| AC Withstand Test Voltage | AC 0.2 kV to 5.0 kV, 50 / 60 Hz |
| AC Withstand Output Capacity | 100 VA at 5.0 kV / 20 mA |
| Insulation Resistance Test Voltage | DC 25 / 50 / 100 / 250 / 500 / 1,000 V |
| Insulation Resistance Range | 0.001 to 9,990 MΩ |
| Test Circuit Switching | 10 channels; Hi / Lo independently configurable |
| Test Sequence | Maximum 100 steps |
| External Communication | RS-232C and I/O |
| Dimensions | 430 (W) × 245 (H) × 485 (D) mm |
| Weight | Approx. 27.5 kg |
| Power Supply | 100 V to 240 V |
* Impulse applied-voltage specification is stated by the manufacturer at a 1 kΩ resistive load.
Optional / Expanded Tests: Impulse partial discharge testing with PD sensor; inductance measurement with specified external instruments; rotational-direction testing with compatible equipment.
