ASTRODESIGN IP-8030 / IP-8030-MV 8K Real-Time MTF Measuring Device

ASTRODESIGN
Type: Machine Vision System
Supplier / Manufacturer: ASTRODESIGN
Model: IP-8030 / IP-8030-MV

The ASTRODESIGN IP-8030 / IP-8030-MV is an 8K real-time MTF measurement system for quantitative evaluation of camera and lens spatial-resolution performance.

Using an improved Slanted-edge measurement method, it supports real-time MTF analysis while adjusting focus, iris, and zoom, as well as multidirectional evaluation, ISO 12233 s-SFR measurement, camera noise measurement, and machine-vision camera interfaces.

Industries & Applications:
Consumer ElectronicsR&DProduction Testing
Contact Us

The ASTRODESIGN IP-8030 / IP-8030-MV is an 8K real-time MTF measurement system designed for quantitative evaluation of camera and lens spatial-resolution performance.

The system measures modulation transfer function (MTF) in real time using an improved Slanted-edge measurement method. Measurements can be performed while adjusting focus, iris, and zoom, allowing engineers to evaluate changes in optical and imaging performance during camera and lens adjustment.

Multidirectional MTF measurement enables analysis of optical alignment, image-sensor characteristics, image-processing effects, and differences between the center and peripheral areas of an image.

Real-Time MTF Measurement Quantitatively evaluate camera and lens spatial-resolution performance in real time.
Multidirectional Analysis Evaluate MTF characteristics in multiple directions for optical and imaging analysis.
ISO 12233 s-SFR Supports ISO 12233 s-SFR and conventional bar-chart measurement methods.
Camera Interface Support Supports machine-vision camera interfaces, with SDI and HDMI capture available on IP-8030.

Features

Real-Time MTF Measurement

Measures camera-system MTF quantitatively and in real time using an improved Slanted-edge measurement method.

Focus, Iris & Zoom Evaluation

Perform MTF measurement while adjusting focus, iris, and zoom to observe changes in camera and lens performance.

Multidirectional MTF Analysis

Measure MTF in multiple directions to evaluate optical alignment, sensor characteristics, and image-processing effects.

Center & Peripheral Comparison

Compare spatial-resolution performance between the center and peripheral areas of the image.

Distorted-Edge Measurement

Supports MTF measurement using curved or distorted edges caused by optical distortion.

ISO 12233 s-SFR Support

Supports ISO 12233 s-SFR measurement as well as conventional bar-chart measurement workflows.

Camera Noise Measurement

Camera noise measurement is integrated with spatial-resolution analysis for broader image-quality evaluation.

Camera & Lens Data Analysis

Supports camera and lens data analysis using ARRI LDS, SMPTE RDD18, and GenICam.

Machine Vision Interface Support

Supports cameras using CoaXPress, USB3 Vision, and GigE Vision machine-vision standards.

Applications

Camera Development & Evaluation

Quantitative evaluation of spatial-resolution performance during camera-system development and verification.

Lens Performance Evaluation

Analyze MTF performance while adjusting focus, iris, and zoom settings.

Machine Vision Camera Testing

Evaluate cameras using CoaXPress, USB3 Vision, and GigE Vision interfaces.

Broadcast & UHD Camera Evaluation

Evaluate spatial-resolution performance of high-resolution camera systems, including 4K and 8K imaging applications.

Optical Alignment Analysis

Use multidirectional MTF measurement to investigate optical alignment between lenses and image sensors.

Camera Image Quality Inspection

Combine spatial-resolution and camera-noise measurements for quantitative camera image-quality evaluation.

Specifications

CapabilityIP-8030IP-8030-MV
Real-Time Camera MTF MeasurementSupportedSupported
Improved Slanted-edge MeasurementSupportedSupported
Multidirectional MTF MeasurementSupportedSupported
ISO 12233 s-SFRSupportedSupported
Conventional Bar-Chart MeasurementSupportedSupported
Camera Noise MeasurementSupportedSupported
CoaXPressSupportedSupported
USB3 VisionSupportedSupported
GigE VisionSupportedSupported
SDI CaptureSupported—
HDMI CaptureSupported—
Camera / Lens Data AnalysisARRI LDS / SMPTE RDD18 / GenICamARRI LDS / SMPTE RDD18 / GenICam

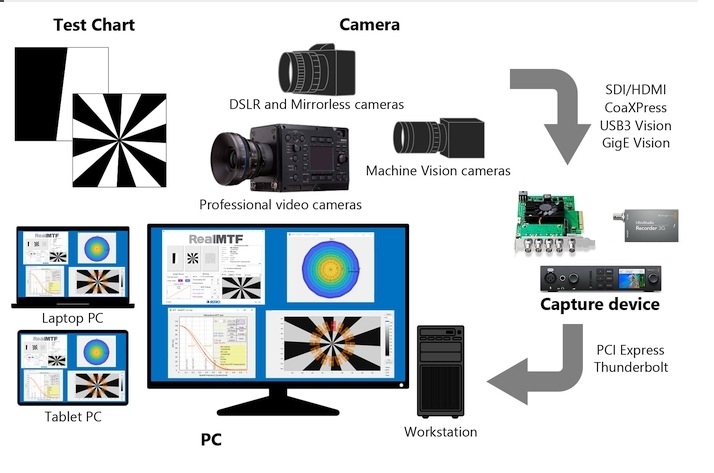

SDI and HDMI capture support is specified for the IP-8030. System configuration and required capture hardware depend on the connected camera interface.

Options & Accessories

OP-4030-1Chart frame (chart folder + tripod)
OP-4030-2MTF chart / chart frame case
OP-4030-3Unidirectional edge chart — reflective type
OP-4030-4Multidirectional edge chart (16 spokes) — reflective type
OP-4030-5Multidirectional edge chart (14 spokes) — reflective type
OP-4030-6Chart folder only
OP-4030-7Unidirectional edge chart — compact transmissive type
OP-4030-8Multidirectional edge chart (16 spokes) — compact transmissive type
