ASTRODESIGN VA-1847-A HDMI2.1 Protocol Analyzer

ASTRODESIGN
Type: Protocol Analyzer
Supplier / Manufacturer: ASTRODESIGN
Model: VA-1847-A

The ASTRODESIGN VA-1847-A is an HDMI 2.1 protocol analyzer for development, evaluation, and troubleshooting of HDMI source, sink, and repeater devices.

It supports FRL and TMDS signal analysis and generation, up to 8K/60p and 4K/120p timing, HDCP 1.4/2.3, DSC 1.2a, eARC, EDID, DDC/CEC monitoring, and HDMI 2.1 CTS pretesting.

Industries & Applications:
Consumer ElectronicsR&D
Contact Us

The ASTRODESIGN VA-1847-A is an HDMI 2.1 protocol analyzer designed for signal analysis, generation, and validation of HDMI source, sink, and repeater devices.

The analyzer supports both FRL (Fixed Rate Link) and TMDS signaling, including FRL operation with up to four lanes at 12 Gbps per lane. It can receive, generate, and analyze high-resolution HDMI signals including 8K/60p and 4K/120p timing.

Integrated protocol-analysis functions cover video and audio timing, InfoFrame, HDCP, SCDC, EDID, DDC, and CEC. Receiver, Generator, and Repeater modes allow the VA-1847-A to be used across HDMI development, interoperability evaluation, and compliance-pretest workflows.

HDMI 2.1 FRL & TMDS Analyze and generate HDMI 2.1 FRL signals up to 12 Gbps × 4 lanes as well as TMDS signals.
8K / 4K High-Frame-Rate Testing Supports HDMI timing up to 8K/60p and 4K/120p for advanced display and video-system evaluation.
Protocol Analysis Analyze InfoFrame, HDCP, SCDC, EDID, DDC, CEC, video, and audio information.
HDMI 2.1 CTS Pretest Supports HDMI 2.1 compliance-test pretesting during product development and validation.

FRL & TMDS Signal Support

Supports analysis and generation of HDMI 2.1 FRL signals with up to four lanes at 12 Gbps per lane, as well as TMDS signals.

8K/60p & 4K/120p Timing

Evaluate high-resolution HDMI devices using video timing up to 8K/60p and 4K/120p.

Receiver Mode

Receive HDMI signals and analyze video and audio timing, InfoFrame data, HDCP status, SCDC registers, and related protocol information.

Generator Mode

Generate FRL and TMDS HDMI signals for evaluating sink devices and other HDMI receiving equipment.

Repeater Mode

Configure the analyzer as an HDMI repeater to evaluate protocol behavior of HDMI output devices.

HDCP 1.4 / 2.3 Analysis

Supports monitoring and analysis of HDCP 1.4 and HDCP 2.3 status during HDMI interface evaluation.

DSC 1.2a Analysis

Receive and analyze HDMI signals encoded using Display Stream Compression (DSC) 1.2a.

EDID & DDC/CEC Monitoring

Provides EDID editing and emulation together with DDC and CEC line monitoring for HDMI interoperability analysis.

ARC / eARC Evaluation

Supports ARC reception and eARC receive and generation functions for HDMI audio-interface evaluation.

Frame-by-Frame InfoFrame Logging

Log InfoFrame information for individual frames with timestamps to investigate changes over time.

HDMI 2.1 CTS Pretest

Perform HDMI 2.1 compliance-test pretesting before formal certification or interoperability testing.

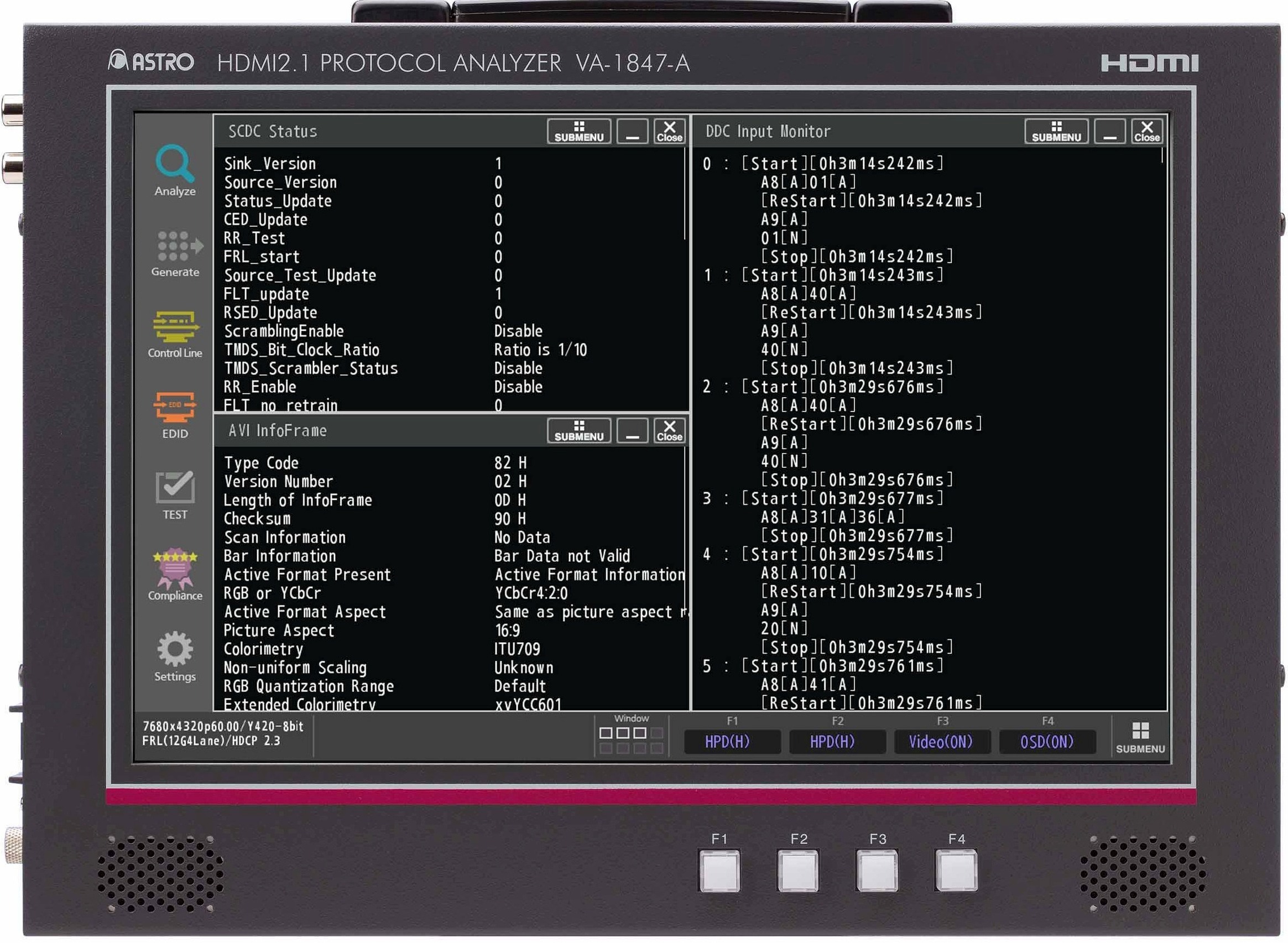

12-Inch Touch Display

A built-in 12-inch touch-panel display and speaker enable on-site visual and audio checking without a separate monitoring system.

HDMI 2.1 Product Development

Analyze and generate HDMI 2.1 signals during development of source, sink, and repeater devices.

8K & 4K Display Evaluation

Evaluate high-resolution video interfaces using HDMI timing up to 8K/60p and 4K/120p.

HDMI Protocol Debugging

Investigate InfoFrame, SCDC, HDCP, EDID, DDC, and CEC behavior during device troubleshooting.

Source Device Testing

Use Receiver and Repeater modes to analyze HDMI output from source equipment.

Sink Device Testing

Generate HDMI signals to evaluate displays, monitors, receivers, and other HDMI sink equipment.

Compliance Pretesting

Perform HDMI 2.1 CTS pretesting during product validation before formal compliance testing.

ModelVA-1847-A
Product TypeHDMI 2.1 Protocol Analyzer
HDMI SignalingFRL and TMDS
Maximum FRL Rate12 Gbps × 4 lanes
Supported High-Resolution TimingUp to 8K/60p and 4K/120p
Operating ModesReceiver / Generator / Repeater
HDCPHDCP 1.4 / 2.3
DSCDSC 1.2a receive and analysis
Protocol AnalysisVideo / Audio / InfoFrame / HDCP / SCDC
DDC / CECMonitoring and analysis
EDIDRead / Edit / Save / Emulation
ARCReceive
eARCReceive / Generate
Compliance TestHDMI 2.1 CTS pretest
Display12-inch touch-panel LCD
Audio MonitoringBuilt-in speaker
Through ModeDDC / CEC line analysis with dedicated through cable (option)

Specifications and supported functions may vary by firmware, configuration, and optional accessories. Contact Denkei Corporation Americas to confirm the appropriate configuration for your HDMI 2.1 test requirements.

Configuration & Availability

HDMI test requirements can vary according to device type, interface mode, compliance-test workflow, and optional accessories. Contact Denkei Corporation Americas to confirm the appropriate VA-1847-A configuration and current availability.
