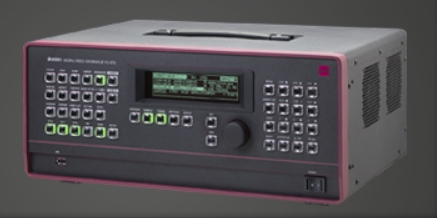

ASTRODESIGN VG-876 Digital Video Generator
Need help choosing?
Explore related multi-interface video test solutions
Explore configurable video-generation and validation platforms for DisplayPort, HDMI, and other professional video interfaces.
View DisplayPort & Multi-Interface Solutions
The ASTRODESIGN VG-876 provides a modular signal-generation platform for engineers who need to evaluate multiple display and digital-video interface standards from a single instrument.
Up to four output modules can be installed to configure the VG-876 for HDMI 2.0, DisplayPort 1.2a, V-by-One HS, 3G-SDI, DVI/iTMDS, and related video-interface workflows. This architecture allows the instrument to be adapted to different development and display-evaluation requirements.
4 Slots
Selectable modular output architecture
HDMI 2.0
Up to 4K/60p with compatible module
DisplayPort 1.2a
SST and MST display-interface testing
Multi-Interface
V-by-One HS, 3G-SDI, DVI/iTMDS and more
Depending on the installed interface modules, the VG-876 can support high-resolution HDMI generation, DisplayPort testing, high-lane-count V-by-One HS output, SDI workflows, and synchronized multi-unit configurations for higher-resolution video generation.
Four-Slot Modular Architecture
Configure up to four selectable video-interface modules to build a generator around the interfaces required by the development environment.
HDMI 2.0 6G Generation
With the compatible HDMI 6G module, generate HDMI 2.0 signals up to 600 MHz and 6 Gbps for 4K/60p display and sink-device evaluation.
DisplayPort 1.2a
A compatible DisplayPort module supports SST and MST workflows, 4K/60p through a single channel, and 4K/120p using two ports.
V-by-One HS Generation
Generate high-bandwidth V-by-One HS signals with up to 16 lanes per module for display-panel and high-resolution video development.
3G-SDI Support
A selectable SDI module supports 3G-SDI, HD-SDI and SD-SDI output, including 2-Sample Interleave, payload and timecode functions.
High-Resolution Synchronized Output
Multiple VG-876 units can be synchronized for higher-resolution workflows, including manufacturer-documented 8K configurations.
HDMI Test Functions
Supports HDMI 2.0-oriented functions including SCDC parameter control, scrambling settings, BT.2020 output, HDR InfoFrame settings, and supported compliance-test workflows.
Programmable Test Environment
Use programmable timing, pattern, image, and output settings to create repeatable display-development and interface-validation workflows.
Display and monitor R&D
HDMI 2.0 sink-device evaluation
DisplayPort interface development
V-by-One HS panel-interface testing
3G-SDI and professional video evaluation
4K and high-resolution video testing
Multi-interface display development
Programmable laboratory test systems
| Architecture | Modular digital video generator with up to 4 selectable interface modules |
|---|---|
| HDMI 2.0 | Supported with compatible module; up to 600 MHz / 6 Gbps and 4K/60p RGB or YCbCr 4:4:4 |
| HDCP | HDCP 1.4 and 2.2 with compatible HDMI module |
| DisplayPort | DisplayPort 1.2a with compatible module; 2 channels, SST/MST, up to 600 MHz |
| DisplayPort Resolution | 4K/60p through one channel; 4K/120p available using two ports |
| V-by-One HS | Up to 16 lanes per compatible module; 4K/120p and 8K/30p supported by one module |
| SDI | 3G-SDI, HD-SDI and SD-SDI with compatible 4-channel module |
| SDI Functions | 2-Sample Interleave, SMPTE payload and timecode support |
| DVI / iTMDS | Supported with compatible interface module |
| LVDS | Available through compatible iTMDS module and IA-1540 converter |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Maximum Power Consumption | 200 W |
| Operating Temperature | +5 to 40°C |
| Operating Humidity | 20 to 80% RH, non-condensing |
| Dimensions | 430 (W) × 177 (H) × 310 (D) mm, excluding protrusions |
Available interfaces and specifications depend on the installed modules and configuration. Contact Denkei Americas to confirm module compatibility and current availability for your application.
Options
SP-8871
TIFF 10/12-bit image converting software.
VT-8500-0006
HDMI One Bit Audio and High Bit Rate Audio option.
VT-8500-0021
MPEG-4 AAC audio option with 22.2-channel support.
VT-7010
8K / 4K HDR image library including an 8K Monoscope.
VT-7009
8K / 4K HDR image library with HDR scale patterns.
IA-1540
DVI / iTMDS to LVDS converter for compatible configurations.
