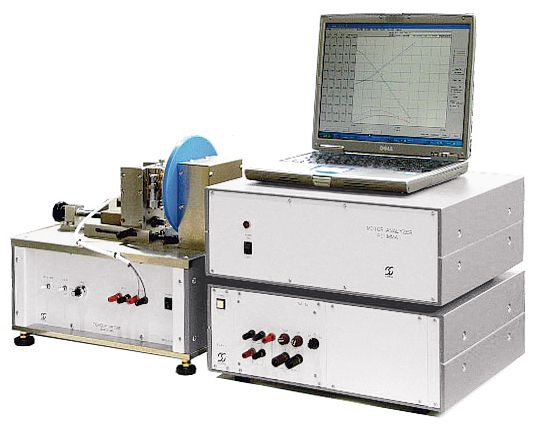

Sugawara Labs PC-MMA1 Micro Torque Dynamometer

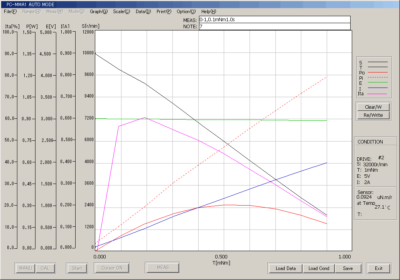

Sugawara Labs PC-MMA1 Micro Torque Dynamometer - Image 3

Type: Motor Dynamometer System, Motor Test System

Supplier / Manufacturer: Sugawara Laboratories Inc.

Model: PC-MMA1

Micro torque dynamometer for measuring speed-torque characteristics and output power of compact DC motors with startup torque of 1 mN·m or less, up to 30,000 r/min.

Industries & Applications:

Motor Testing Torque Measurement

Contact Us

Micro Torque Dynamometer for Compact DC Motors

The Sugawara PC-MMA1 measures speed-torque characteristics and output power of compact DC motors with startup torque of 1 mN·m or less.

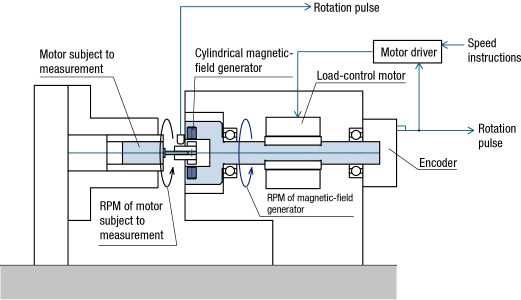

Torque is calculated from the relative rotational-speed difference between the motor under test and the magnetic-field generator. Measurements are supported from 30,000 r/min to the stopped state.

≤1 mN·mStartup torque of target compact DC motors

30,000 r/minMaximum rotational-speed measurement range

0.1 / 1 / 2 mN·mTorque measurement ranges

Eddy CurrentBraking method

Compact DC Motor Measurement

Measures speed-torque characteristics and output power of compact DC motors with startup torque of 1 mN·m or less.

Up to 30,000 r/min

Supports stable measurement from 30,000 r/min to the stopped state.

Relative-Speed Torque Measurement

Calculates torque from the relative RPM difference between the motor and the magnetic-field generator.

Precise Axle Matching

The manufacturer lists precise axle matching as a primary advantage.

Automatic and Manual Modes

Supports automatic and manual measurement modes.

Optional Voltage and Current Measurement

Adding the EVA-1 voltage/current measurement component enables voltage and current measurement.

Compact DC MotorsMeasurement of compact DC motors with startup torque of 1 mN·m or less.

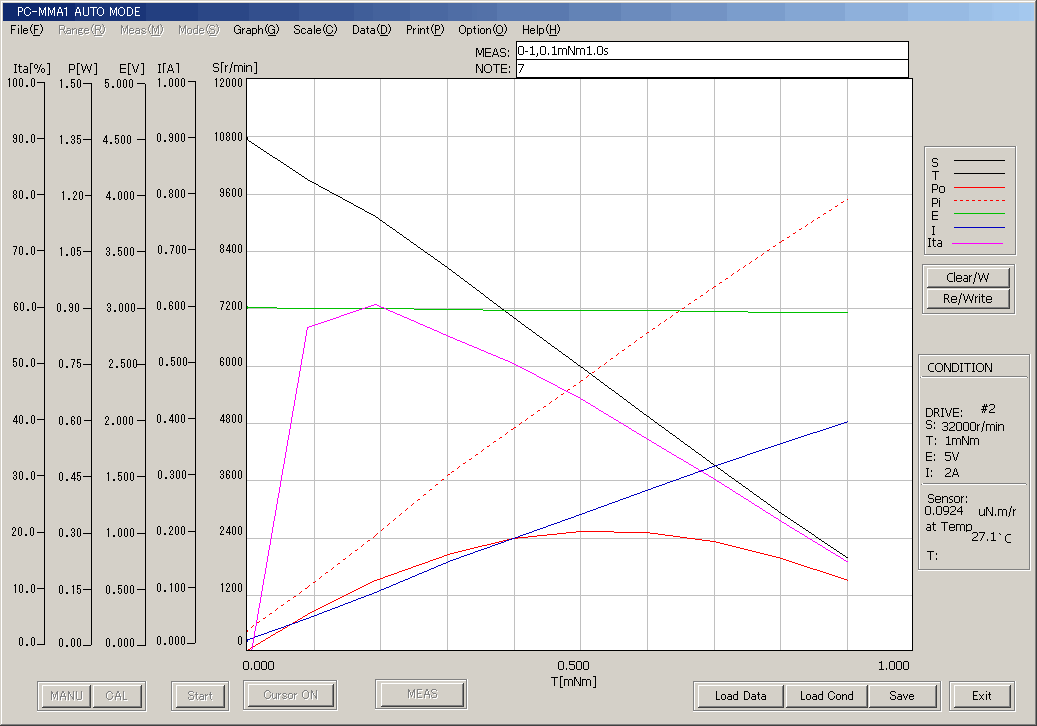

Speed-Torque CharacteristicsMeasurement of motor speed and torque characteristics.

Output PowerMeasurement of motor output power.

Voltage and CurrentVoltage and current measurement with the optional EVA-1 component.

Model	PC-MMA1
Braking Method	Eddy current braking
Load-Control Methods	Torque control / Open loop sweep
Measurement Modes	Automatic mode / Manual mode
Torque Measurement	Calculated from relative difference in RPM between motor subject to measurement and braking motor
Torque Measurement Range	0.1 / 1 / 2 mN·m
RPM Measurement Range	Up to 30,000 r/min
RPM Measurement Accuracy	±0.1% of range (full scale)
Basic Torque Measurement Component	MMT-1MN
Optional Voltage / Current Measurement Component	EVA-1
