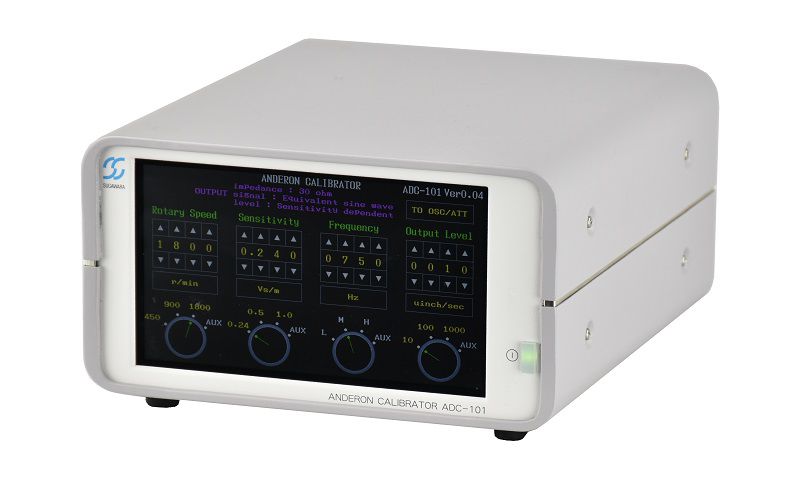

Sugawara Labs ADC-101 Anderon Calibrator

Sugawara Laboratories Inc.
Type: Bearing Inspection & Vibration Testing
Supplier / Manufacturer: Sugawara Laboratories Inc.
Model: ADC-101

Electrical reference calibrator for Sugawara Anderon and Waviness analyzers, with 100–9,999 r/min rotation settings, 0–20 kHz signal generation, dual calibration modes, and recorded-vibration playback.

Industries & Applications:
Quality ControlBearing TestingCalibrationMeasurement System ManagementVibration MeasurementWaviness Measurement
Contact Us
Download Catalog

Electrical Calibration for Anderon and Waviness Analyzers

The Sugawara ADC-101 Anderon Calibrator is designed to calibrate analyzers used in Sugawara Anderon Meter and Waviness Meter bearing inspection systems by generating precise electrical reference signals.

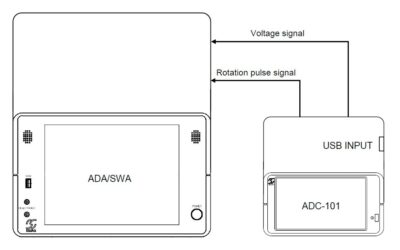

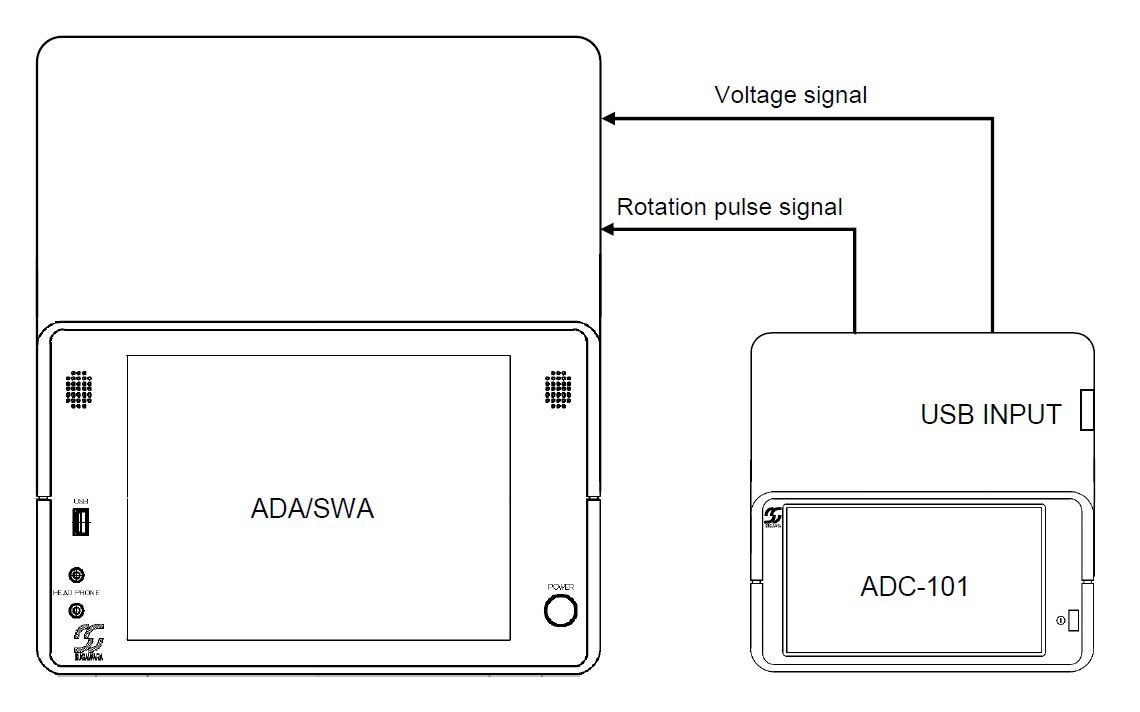

Unlike the ADC-105 / VVU-105 system, which generates actual mechanical vibration for simultaneous sensor and analyzer calibration, the ADC-101 directly outputs rotation and vibration-equivalent electrical signals to the analyzer. This makes it suitable for fast verification of analyzer measurement performance.
100–9,999 r/minProgrammable rotation-speed reference setting
0–20 kHzWide reference oscillation-frequency range
2 Calibration ModesADC/SWC and OSC/ATT modes replace multiple legacy calibration instruments
PLAYER ModeReplays recorded bearing vibration data as electrical reference signals
ADC-101 consolidates the functions of previous Sugawara calibrators, signal generators, and attenuators into a single instrument. It can calibrate current and legacy voltage-input bearing inspection analyzers with 30 Ω input impedance.

Analyzer Calibration

Generates electrical reference signals corresponding to configured Anderon and waviness values for direct analyzer verification.

One Instrument for Multiple Analyzer Families

Supports Sugawara Anderon, Synchro Wave, Race Wavimeter, and Ball Wavimeter analyzer families.

ADC/SWC Mode

Replaces the calibration functions of previous ADC-10 and SWC-10 instruments.

OSC/ATT Mode

Replaces legacy signal-generator and attenuator combinations used for bearing inspection analyzer calibration.

0–20 kHz Signal Generation

Wide oscillation-frequency coverage supports calibration across Anderon and waviness measurement ranges.

PLAYER Mode

Converts vibration data stored by ADA-105 or SWA-105 into electrical reference signals for reproduction on another analyzer.

Multiple Measurement Units

Supports Anderon, velocity, acceleration, displacement, waviness, and angular waviness units.

7-Inch Touchscreen

Calibration values, operating modes, and output conditions are configured through an integrated color LCD touchscreen.
Anderon Analyzer CalibrationElectrical calibration of analyzers used for completed-bearing vibration inspection.
Waviness Analyzer CalibrationReference-signal calibration of analyzers used with race and ball wavimeters.
Periodic Equipment VerificationRoutine confirmation of analyzer accuracy and measurement-system reliability.
Legacy Instrument ReplacementConsolidation of functions previously provided by multiple Sugawara oscillators, calibrators, and attenuators.
Measurement Data ReproductionPlayback of recorded bearing vibration data on another compatible analyzer.
Quality-System MaintenanceStandardized verification of bearing inspection analyzers across laboratories and production environments.
Model ADC-101
Calibration Targets 30 Ω input-impedance, voltage-input bearing vibration instruments; ADA-* / SWA-* / LWA-* / BWA-* analyzer families
Rotation Speed Setting 100–9,999 r/min
Sensor Sensitivity Setting 0–8.008 Vs/m (0–99.99 mV/usp, usp = 12.486 mm/s)
Oscillation Frequency 0–20 kHz
ATT Setting ATT = (0–60) + (0–9) + (0.0–0.9) dB
Output Impedance 30 Ω
Maximum Output Level 4.5 mVrms with 30 Ω input impedance
Operation Interface 7-inch color LCD touchscreen
Power Supply 100–240 VAC, 50/60 Hz
Dimensions 215 × 124 × 250 mm
Weight 5 kg

Calibration Modes

Mode Purpose
ADC/SWC Calibration using Anderon and waviness measurement values; replaces previous ADC-10 and SWC-10 calibrators.
OSC/ATT Signal-generator and attenuation calibration; replaces legacy oscillator and attenuator combinations.
PLAYER Reproduces vibration data stored by ADA-105 / SWA-105 as voltage signals for another compatible analyzer.
