Hysteresis Brake Units for Motor Testing
Sugawara HB Series hysteresis brake units are designed for use in motor dynamometers, dedicated measuring jigs, and motor speed and torque measurement systems.
The brake unit applies a uniform braking force according to supplied electric current regardless of rotation speed. The mechanism is contactless and is designed to minimize inertial moment.Up to 30,000 r/minMaximum speed on listed brake-unit models

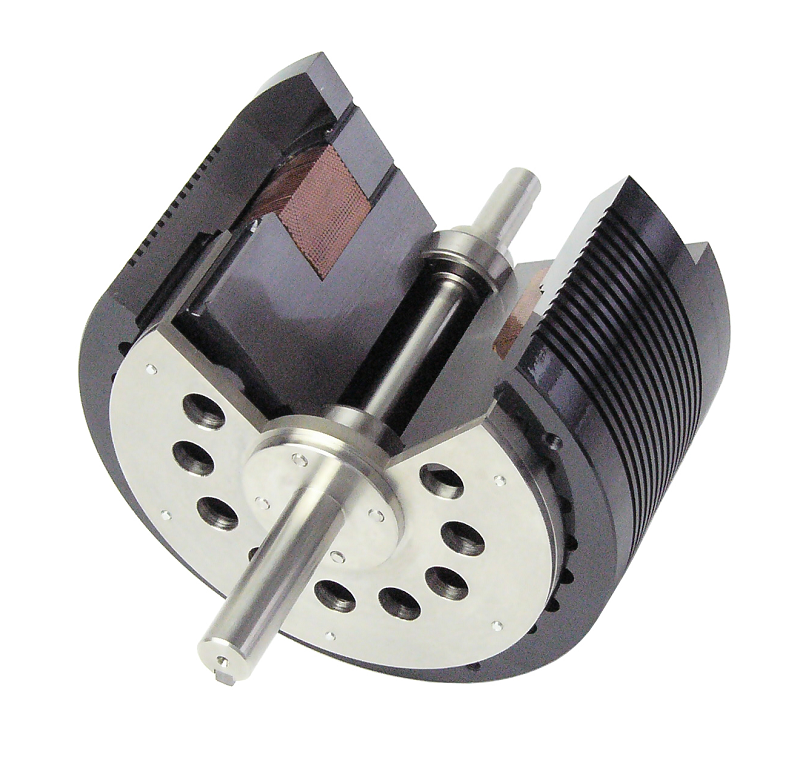

ContactlessHysteresis brake mechanism
Current ControlledBraking force follows supplied electric current
Low InertiaUnit structure minimizes inertial moment
Current-Controlled Braking Force
Applies braking force according to supplied electric current regardless of rotation speed.High-Precision Control

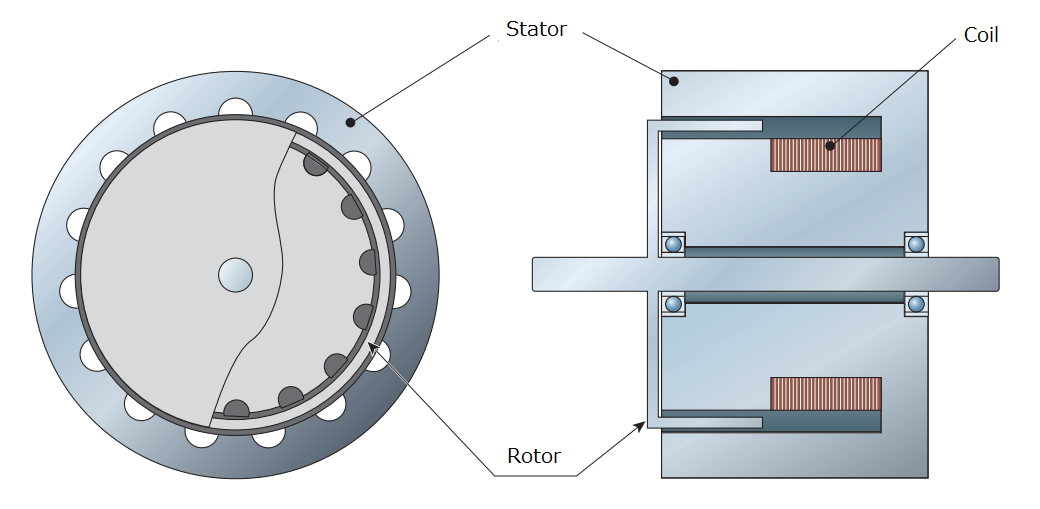

Improved inner and outer teeth are designed for high-precision control.Low Inertial Moment
The unit structure is designed to minimize inertial moment.Contactless Brake Mechanism
The contactless brake mechanism provides long service life.Wide Speed Range
Listed brake-unit models support speeds up to 30,000 r/min depending on model and rating.Motor Testing Use

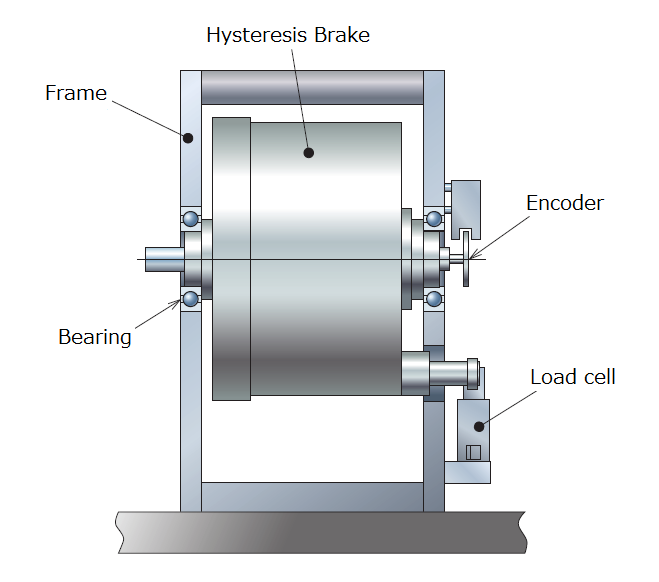

Used in motor speed and torque characteristic measurement systems.Motor DynamometersBrake unit for use in motor dynamometers.
Dedicated Measuring JigsBrake unit for use in dedicated measuring jigs.
Motor Speed and Torque MeasurementLoad-applying device used in systems for motor speed and torque characteristic measurement.
| Model | Rated Torque | Maximum Speed | Moment of Inertia | Rated Current | Coil Resistance | Maximum Input | Continuous Input | Weight |
|---|---|---|---|---|---|---|---|---|
| HB-100S | 10 mN·m | 30,000 r/min | 0.73 × 10⁻⁶ kg·m² | 330 mA | 11 Ω | 25 W | 5 W | 370 g |
| HB-200S | 20 mN·m | 30,000 r/min | 0.9 × 10⁻⁶ kg·m² | 330 mA | 11 Ω | 30 W | 6 W | 370 g |
| HB-500S | 50 mN·m | 30,000 r/min | 2.4 × 10⁻⁶ kg·m² | 330 mA | 16.5 Ω | 75 W | 15 W | 500 g |
| HB-1KS | 100 mN·m | 30,000 r/min | 3.7 × 10⁻⁶ kg·m² | 330 mA | 16.5 Ω | 120 W | 25 W | 660 g |
| HB-2KS | 200 mN·m | 20,000 r/min | 16 × 10⁻⁶ kg·m² | 330 mA | 23 Ω | 170 W | 35 W | 910 g |
| HB-5KS | 500 mN·m | 20,000 r/min | 28 × 10⁻⁶ kg·m² | 330 mA | 30 Ω | 300 W | 60 W | 2 kg |
| HB-10KS | 1 N·m | 20,000 r/min | 1.85 × 10⁻⁴ kg·m² | 330 mA | 35 Ω | 400 W | 80 W | 4.5 kg |
| HB-20KS | 2 N·m | 10,000 r/min | 0.54 × 10⁻³ kg·m² | 330 mA | 25 Ω | 600 W | 120 W | 7.5 kg |
| HB-50KS | 5 N·m | 10,000 r/min | 1.8 × 10⁻³ kg·m² | 330 mA | 38.5 Ω | 1,500 W | 300 W | 14 kg |
