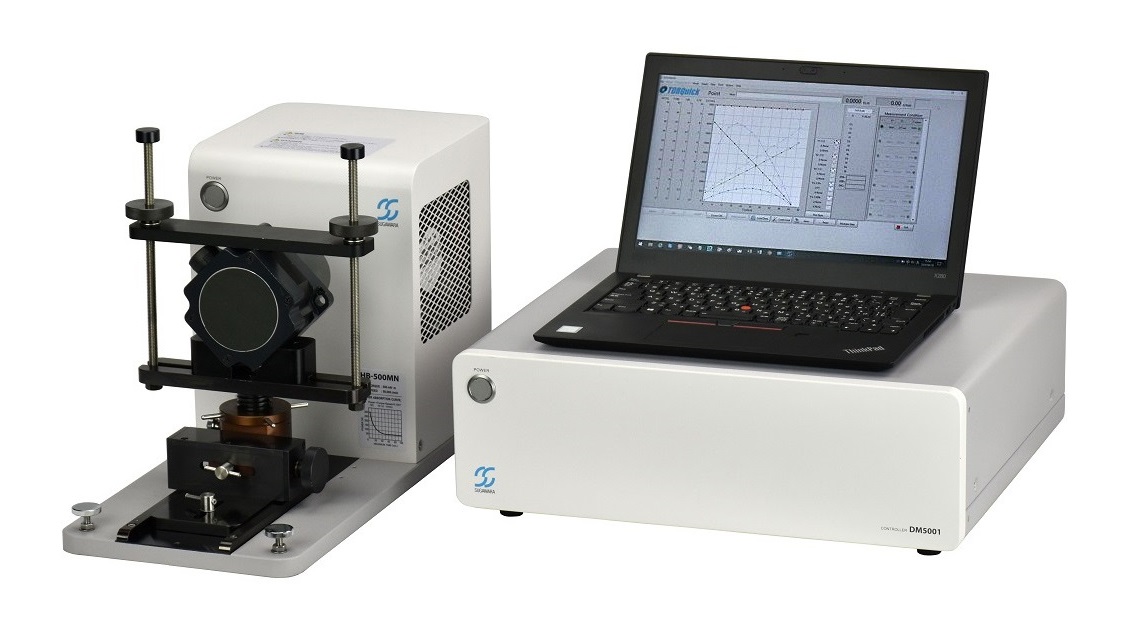

Sugawara Laboratories DM5001 / HB Series Motor Torque Meter System

Type: Motor Test System

Supplier / Manufacturer: Sugawara Laboratories Inc.

Model: DM5001 / HB Series

Industries & Applications:

Motor Torque Meter System

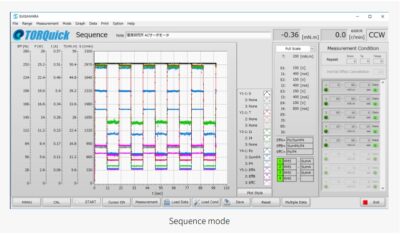

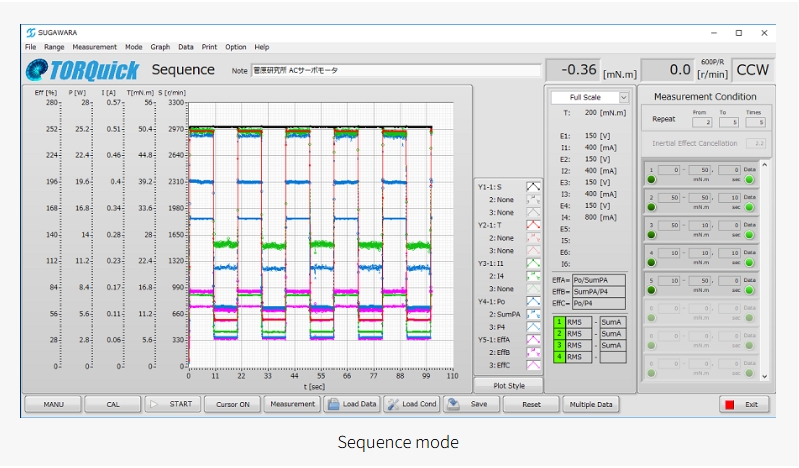

Dynamometer using a reliable hysteresis brake with superb reproducibility unaffected by inertia Improved measurement accuracy and ease of use.

DM5001 is compatible with the following power meters for voltage and current measurements. Yokogawa Test & Measurement Corporation

WT5000 (∗1) WT1800E Series WT310/WT330/WT300E series

HIOKI E.E. CORPORATION

PW3390/PW3335/PW3336/PW3337

You can choose a suitable one according to your application such as single-phase AC/DC motors and inverter motors.

Torque measurement	Sampling rate：1 ms (16 bit AD converter)
	Averaging：100 ms moving average
	Torque accuracy：±0.1% of full scale (accuracy of the system including DM5001 Controller, after calibration)
Rotation speed accuracy	±0.01％ ±2digit

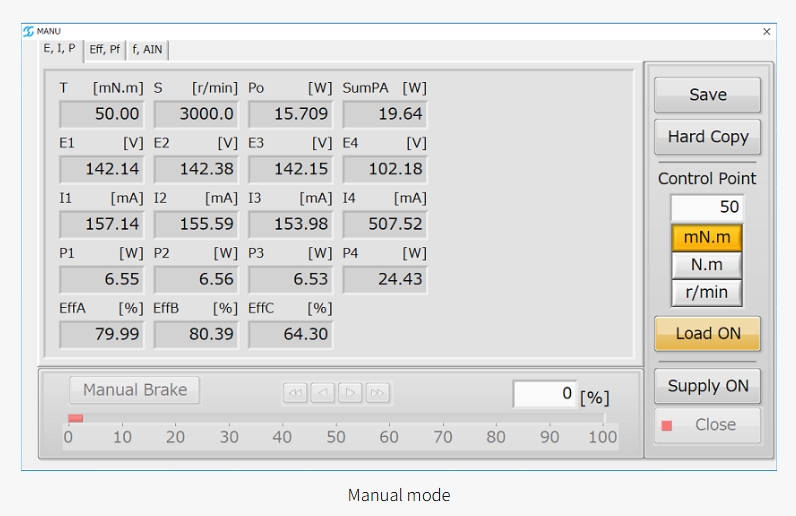

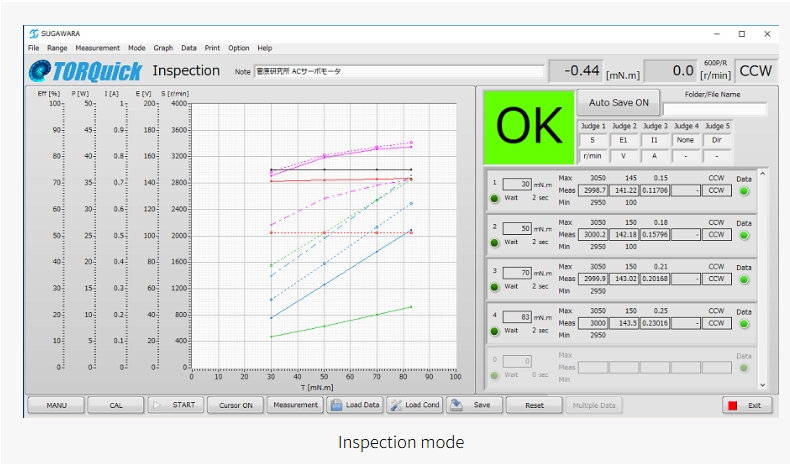

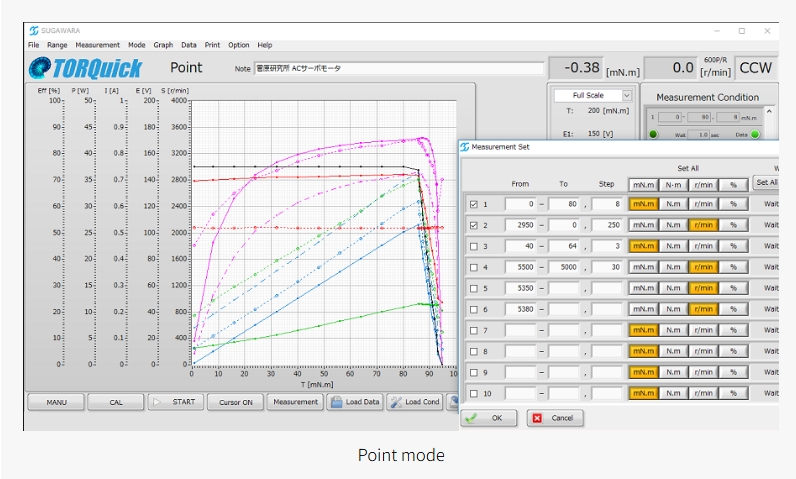

Load control parameter	Torque control：Servo-control of torque value
	Speed control：Servo-control of rotation speed
	Brake control：Open-loop control of brake current
Output power	T[N・m]×S[r/min]×0.1047
Voltage, current, power, efficiency, power factor, and frequency	Measured by a connected power meter
Power meter	Yokogawa Test & Measurement Corporation
	WT5000 (∗1)
	WT1800/WT1800E series
	WT310/WT330/WT300E series
	HIOKI E.E. CORPORATION
	PW3390/PW3335/PW3336/PW3337
Analog output	Torque analog output：±10 VDC/Torque range full scale ±1%
Analog output	Speed analog output：±10 VDC/Speed range full scale ±1%
Options of DM5001	I/O option
	Digital input 4ch, Digital output 4ch
	Analog input 4ch, Analog output 2ch
	Contact output for power supply control (NO, NC）1ch

(∗1) Select "WT1800E" in the “WT Compatible Command Type Setting” of WT5000. Up to six elements can be used.
