Sugawara Labs PC-MCT5-15 Three-Axis Torque Tester for Voice Coil Motors
Three-axis torque measurement system for voice coil motors, measuring X-, Y-, and Z-axis torque and angle-torque characteristics.
Three-Axis Torque Measurement for Voice Coil Motors

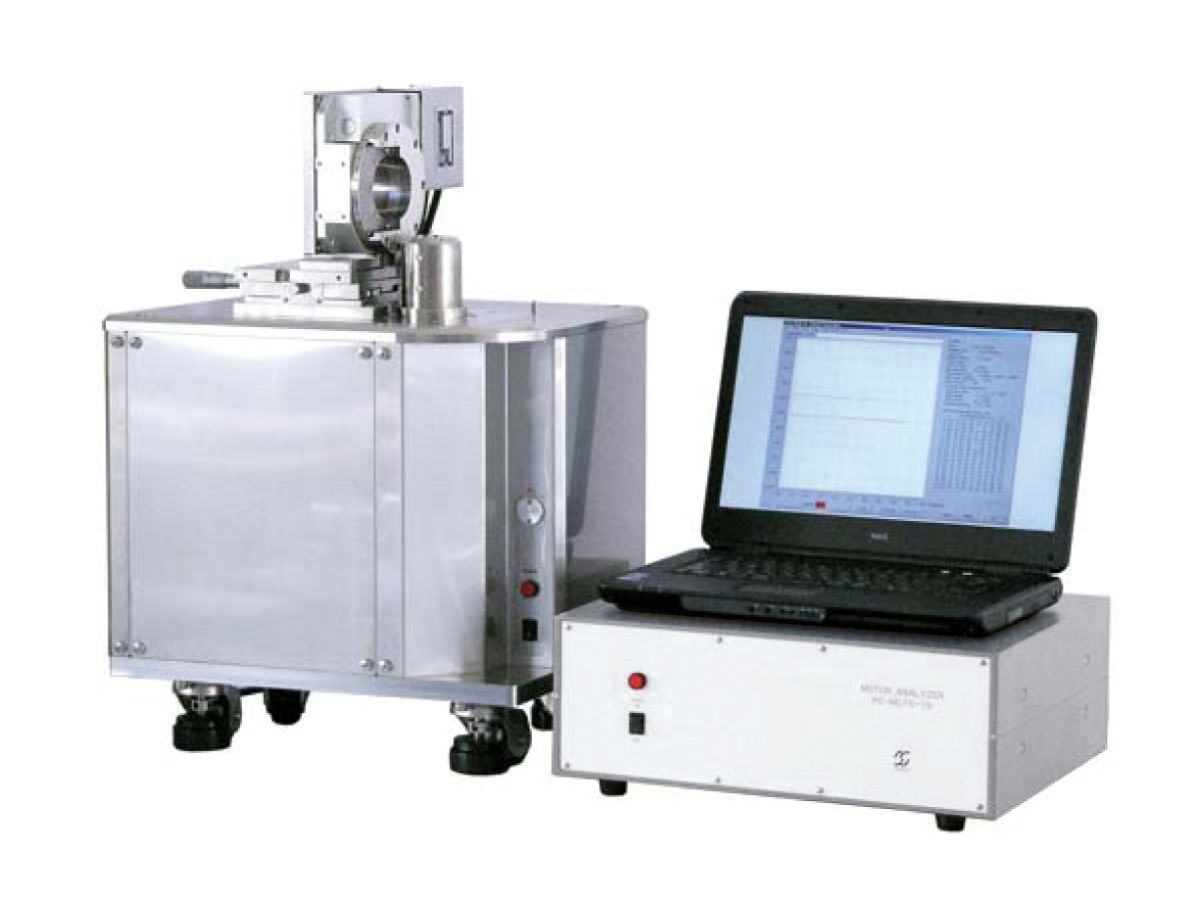

The Sugawara PC-MCT5-15 is a motor analyzer system for measuring three-axis torque and angle-torque characteristics of voice coil motors.
The system measures torque generated in the voice coil motor coil in the X, Y, and Z axes. Measurement results can be viewed on a computer screen and saved as CSV files.
3 AxesX, Y, and Z torque measurement
10 mN·m/F.SMotor analyzer rated torque
0.6–2.0 deg/secAvailable drive-speed range
CSV OutputMeasurement results can be saved as CSV files
Three-Axis Torque Measurement
Measures torque generated in the voice coil motor coil in the X, Y, and Z axes.
Angle-Torque Measurement
Measures torque versus rotation angle by rotating the motor magnet or coil.
Point Measurement
Allows specification of desired measurement angles for 0 to 100 measurement points.
Continuous Measurement
Measures a specified angular range starting at a specified measurement point.
Computer Display
Measurement results can be viewed on a computer screen.
CSV Data Saving
Measurement results can be saved as CSV files.

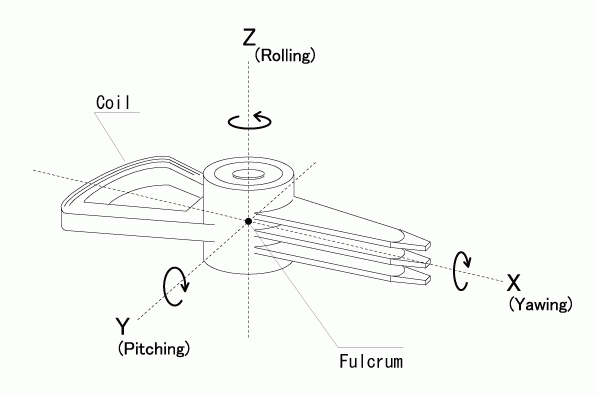

Voice Coil MotorsThree-axis torque measurement of voice coil motors.
Hard Disk Drive VCMThe manufacturer identifies voice coil motors used in hard disk drives as an example.

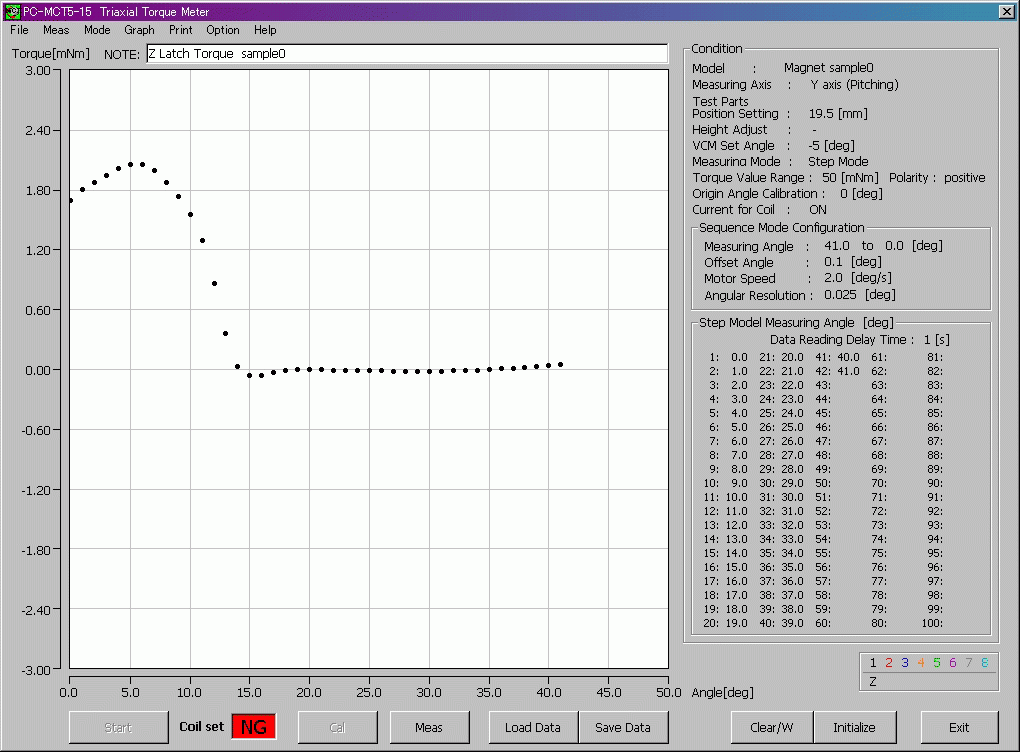

Angle-Torque CharacteristicsMeasurement of torque versus rotation angle.
PC-MCT5-15 Motor Analyzer
| Rated Torque | 10 mN·m/F.S |
|---|---|
| Drive Speed | 0.6, 0.8, 1.0, 1.2, 1.4, 1.8, 2.0 deg/sec |
| Angular Measuring Range | Total 60° within ±90° range |
| Measurement Modes | Point measurement / Continuous measurement |
| Dimensions (W × H × D) | 430 × 150 × 360 mm |
| Mass | 10 kg |
ATV1-10M01 Torque Meter Measuring Unit
| Rated Torque | 10 mN·m |
|---|---|
| Torque Detection Accuracy | Rated value ±1% |
| Dimensions (W × H × D) | 440 × 430 × 390 mm |
| Mass | Max. 100 kg |
MTJ-001 Magnet Rotating Jig
| Angular Detection Accuracy | Not exceeding ±0.001° |
|---|---|
| Maximum Drive Speed | 2.0 deg/sec |
| Dimensions (W × H × D) | 260 × 70 × 170 mm |
| Mass | 10 kg |
Basic Configuration
Motor analyzer: PC-MCT5-15; torque meter measuring unit: ATV1-10M01; magnet rotating jig: MTJ-001; personal computer (Windows OS); coil excitation power supply: PMC35-0.5A (Kikusui Electronics).
