Sugawara Labs MC8 Series Loss Torque Meter
Sugawara MC8 Series measures motor loss torque, including permanent-magnet iron loss and mechanical loss, at configured rotational speeds up to 60,000 r/min.
Loss Torque Measurement for Motors
The Sugawara MC8 Series is designed to measure motor loss torque, including permanent-magnet iron loss and mechanical loss, at configured rotational speeds.
The MC8 Series can measure the loss torque of motors such as brushless DC motors. Induced motor voltage can also be measured when a power meter is used together with the system.
60,000 r/minMaximum speed
50 mN·mMaximum torque
±1%Torque accuracy of rated torque
Analog OutputTorque and speed measurement data
Loss Torque Measurement
Measures loss torque including permanent-magnet iron loss and mechanical loss.
Maximum Speed 60,000 r/min
Measures motor loss torque at configured rotational speeds up to 60,000 r/min.
Shaft Alignment
Designed to simplify alignment between the shaft of the motor under test and the torque-meter shaft.
Display and Analog Output
Measurement data can be checked on the display or through analog voltage output.
Optional Software

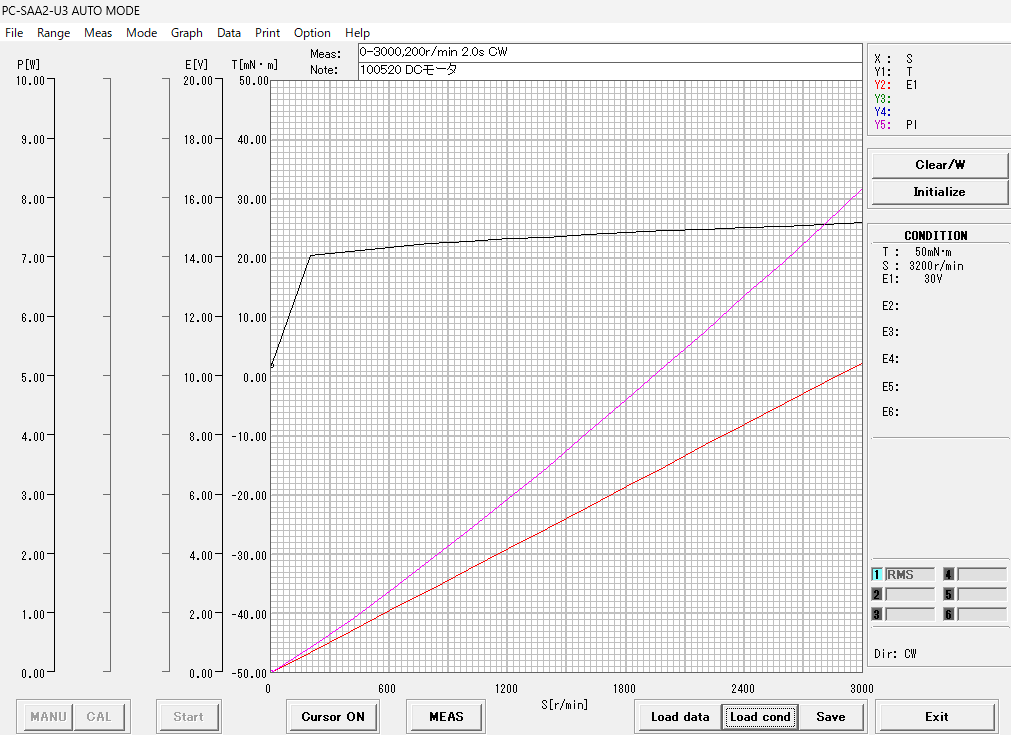

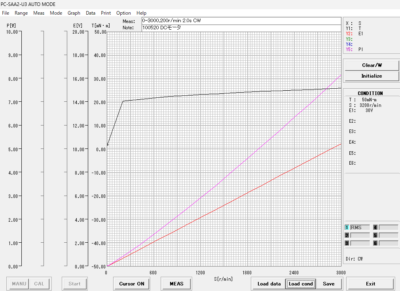

An option enables rotation-speed and direction settings and acquisition of measurement data through software.
Induced Voltage Measurement
Motor induced voltage can be measured when a power meter is used together with the system.
Motor Loss TorqueMeasurement of motor loss torque at configured rotational speeds.
Brushless DC MotorsLoss-torque measurement of motors such as brushless DC motors.
Iron and Mechanical LossMeasurement of permanent-magnet iron loss and mechanical loss as loss torque.
Induced VoltageInduced motor voltage measurement when used together with a power meter.
| Model | MC8 Series |
|---|---|
| Maximum Torque | 50 mN·m |
| Maximum Speed | 60,000 r/min |
| Torque Accuracy | ±1% of rated torque |
| Rotation Speed Accuracy | ±1% of maximum speed |
| Torque Analog Output | ±DC 4 V / rated torque |
| Speed Analog Output | ±DC 4 V |
| Power Supply | 100 VAC ±10%, 50/60 Hz |
