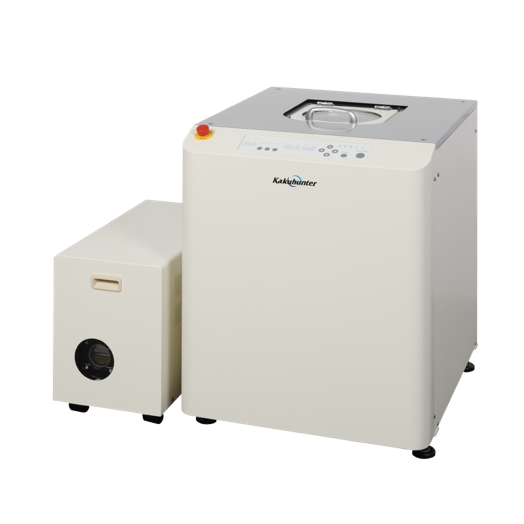

SK-350TV / SK-350TVS – Medium Vacuum Planetary Mixer for High-Precision Production
Capacity: 700g gross / 300ml × 2 cups
Vacuum + Centrifugal Mixing: Ensures complete degassing
Independent Revolution & Rotation Control: 9 × 10 step settings
Multiple Modes: Mixing / Medium / Degassing + Wave Mode
Durable Build: Supports continuous use in production environments
Safety Systems: Lid lock, vacuum chamber interlock, imbalance detectionAdvantages
● Eliminates microbubbles for high-reliability materials
● Faster and more efficient than separate mixing/degassing processes
● Capable of handling adhesives, resins, and thermal compounds
? Automotive: EV battery adhesive preparation
⚡ Electronics: Thermal interface material degassing
? Medical: Biocompatible adhesive preparation
? Industrial: Optical-grade resin mixing
| Cup size | 400 ml x 2 cups Gross weight 350g x 2 cups (container included) Less than 55cc syringe with adapter |
|---|---|
| Revolution setting | Settable in 9 steps |
| Rotation setting | Settable in 10 steps (0 to 1.0 times with against revolution speed) *May differ from actual specifications* |
| Time of setting | 100-300 sec. (in units of 10 sec.) |
| Step mode | 1-5 steps |
| Memory channels (condition setting memory) | User settable channels: 90 Fixed data channels: 10 |
| Power supply voltage | Single-phase 100-115VAC±10% 50/60Hz |
| Power consumption | 2,000W (including vacuum pump) |
| External dimensions | W565 × D682 × H725(㎜) (not including projecting parts) |
| Main unit weight | Approx. 160kg (not including vacuum pump) |
Kakuhunter Line up
Atmospheric Pressure Models
 SK-300SII300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials. |  SK-350TII400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production. |  SK-1100T1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention. |
 SK-2000T2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion. |  SK-3000TII3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials. |  SK-4000T4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials. |
 SK-10000T10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity. | ||
Vacuum Equipped Models
 SK-300TVS-A300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical). |  SK-350TV/TVS400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines). |  SK-1100TV/TVSII~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives. |
 SK-4000TV~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins. |  SK-10000TV~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale. |
High-Spec Model
 SK-400TR300 ml × 2 cups ~ 700 g High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors. |
Exclusive Models
 SK-BS12T~2 L × 2 cups ~ 4 kg Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives. |  SK-MP12T~2 L × 2 cups ~ 4 kg Multi‑purpose exclusive model with flexible recipes and repeatable scale‑up—ideal for R&D platforms and custom pilot lines. |
