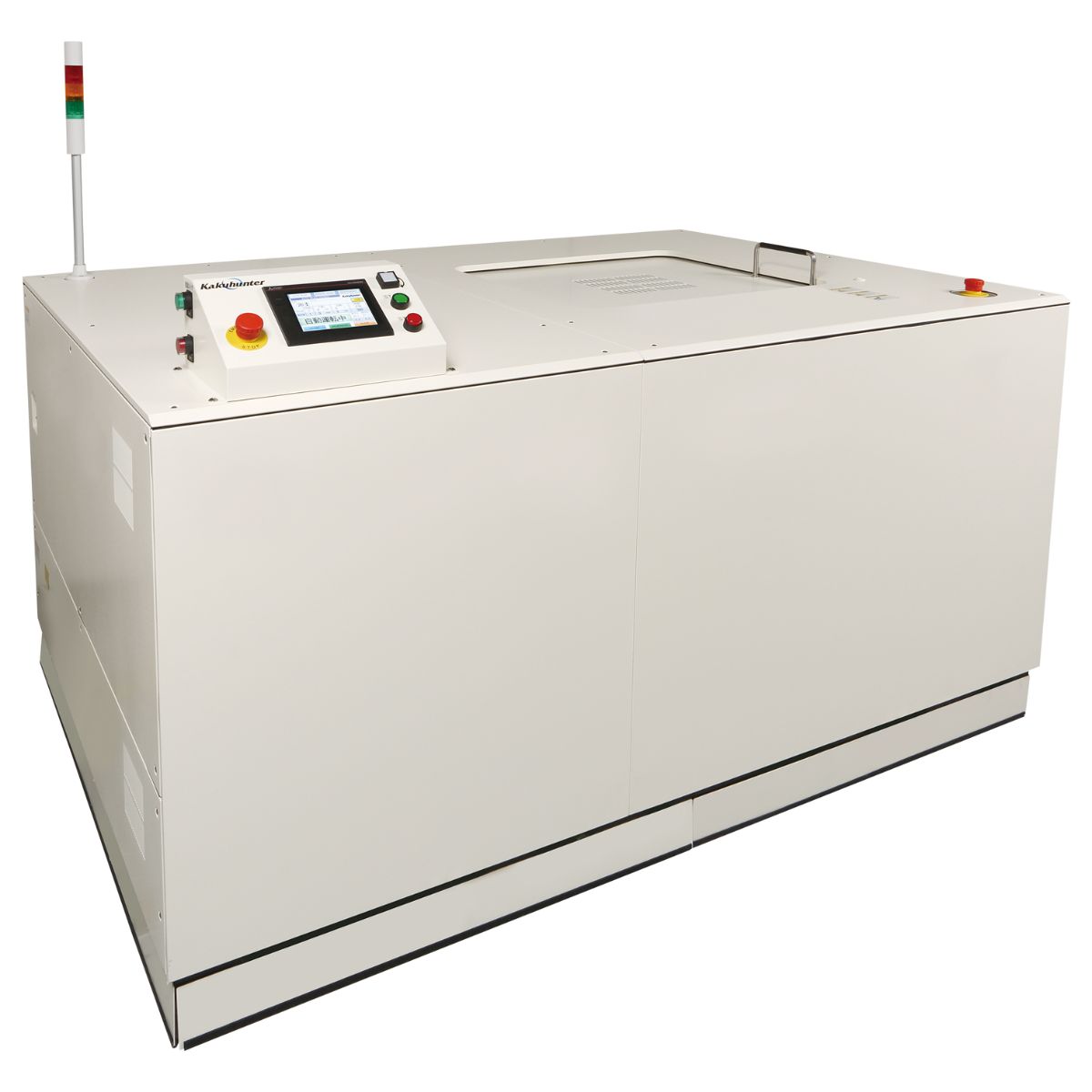

SK-10000TV – 20kg Ultra-Large Vacuum Planetary Mixer
The SK-10000TV is the highest-capacity vacuum planetary mixer from Shashin Kagaku Co., Ltd., offering 20,000g batch capacity for industrial-scale production. Combining centrifugal force with vacuum technology, it produces perfectly uniform, bubble-free materials in record time.
1. Capacity: 20,000g gross / ~10L × 2 cups
2. Vacuum Degassing + Centrifugal Mixing: Eliminates even microbubbles
3. Independent Speed Control: 9 × 10 combinations
4. Modes: Mixing / Medium / Degassing + Wave Mode
5. Industrial Build: Handles heavy-duty, continuous operation
6. Safety: Lid lock, vacuum chamber interlock, overload protection
?Automotive: High-volume adhesive production
?Energy: Battery electrode slurry for EVs and energy storage
?Industrial: Large-batch pigment dispersion
⚡Electronics: Bulk encapsulant and potting compound production
| Cup size | 7000ml commercially available containers or standard SUS containers [customizable] | |
| Max throughput | 10kg (container included) x 2 cups [customizable] | |
| Other containers | A variety of containers and syringes can be used by use of an adapter | |
| Speed of revolution | 100～400rpm Settable at 9 steps | |
| Speed of rotation | with respect to 0 ~ 1.0 x revolution Settable at 10 steps | |
| Settable time | 10 ~ 900 sec. x 5 steps * 5 steps totaling up to 25 min. | |
| Step mode | 5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) | |
| Conditions setting memory | User-settable channels | 90 CH |
| Fixed data channels | 10 CH | |
| Power supply voltage | Three-phase 100－120VAC±10% | |
| Power consumption | Max 20KVA | |
| External dimensions | W1900×D1300×H980(mm) (except for the pump) | |
| Weight of the main unit | Approx. 1530 kg (except for the pump) | |
Kakuhunter Line up
Atmospheric Pressure Models
 SK-300SII300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials. |
 SK-350TII400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production. |
 SK-1100T1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention. |
 SK-2000T2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion. |
 SK-3000TII3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials. |
 SK-4000T4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials. |
 SK-10000T10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity. |
||
Vacuum Equipped Models
 SK-300TVS-A300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical). |
 SK-350TV/TVS400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines). |
 SK-1100TV/TVSII~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives. |
 SK-4000TV~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins. |
 SK-10000TV~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale. |
High-Spec Model
 SK-400TR300 ml × 2 cups ~ 700 g High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors. |
Exclusive Models
 SK-BS12T~2 L × 2 cups ~ 4 kg Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives. |
 SK-MP12T~2 L × 2 cups ~ 4 kg Multi‑purpose exclusive model with flexible recipes and repeatable scale‑up—ideal for R&D platforms and custom pilot lines. |
