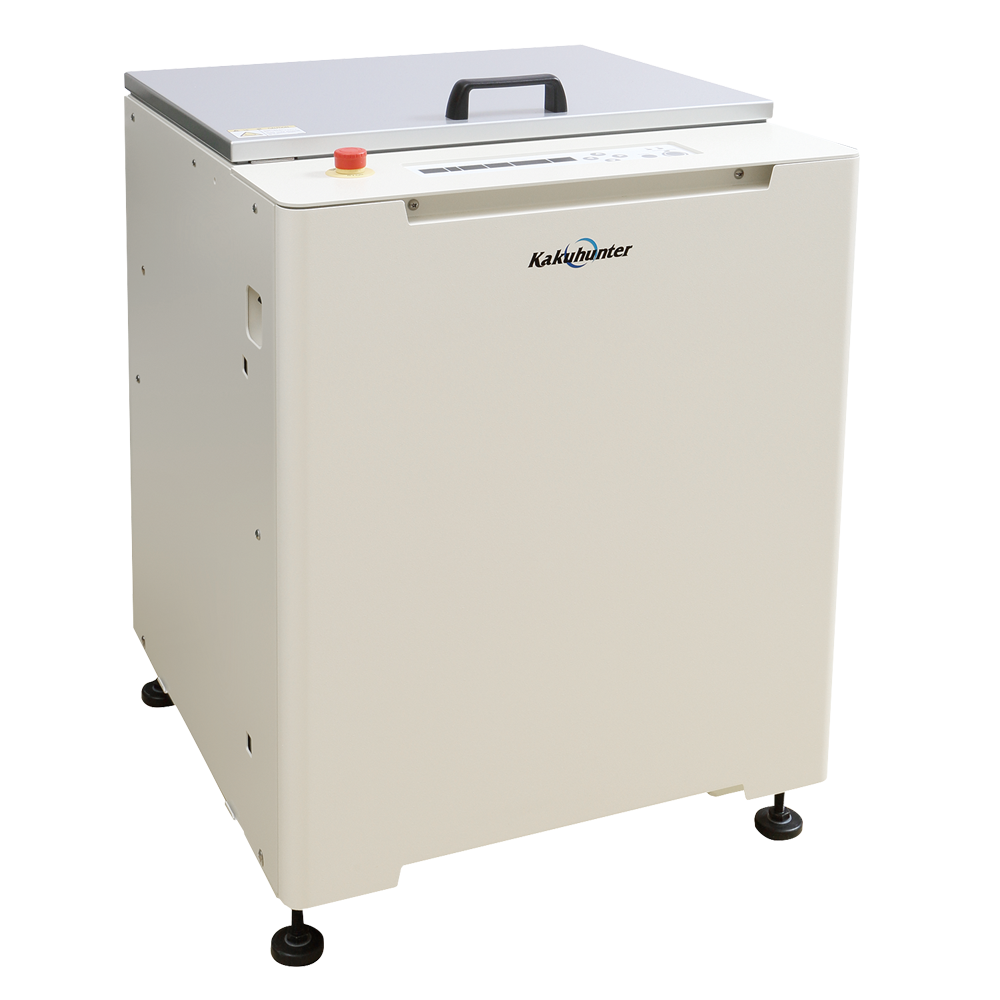

SK-1100T Planetary Centrifugal Mixer – 2kg Capacity for Scaling R&D to Production
1. Capacity: 2,000g gross / ~1L × 2 cups
2. Individual Revolution & Rotation Control: 9 × 10 step combinations
3. Three Modes: Mixing / Medium / Degassing
4. Handles a Wide Viscosity Range: From low-viscosity liquids to heavy pastes
5. Durable Industrial Design: Built for continuous operation
6. Non-contact Mixing: No blades, no contamination, minimal cleaning
7. Safety: Lid lock, unbalance detection, motor alerts
Advantages Over Conventional Mixers
・ Capable of processing larger volumes without compromising quality
・ Prevents material waste and contamination
・ Reduces mixing and degassing time by up to 70% compared to traditional mixers
?Energy: Battery electrode slurry preparation
?Automotive: Heat-dissipating adhesive mixing
?Industrial: Ceramic slurry blending
?Cosmetics: Pigment dispersion in bulk formulations
⚡Electronics: Encapsulant mixing for PCB and LED modules
| Cup size | Maximum 1kg (Gross Weight) x 2cups |
|---|---|
| Other containers | Multiple containers and syringes can be used by using an adapter. |
| Speed of revolution | Settable in 9 steps |
| Speed of rotation | Settable in 10 steps (There is limitation for rotation speed) |
| Settable time | Maximum 990 seconds (5 Step total) |
| Step mode | 5 steps Continuous operation with 5 different operation patterns (condition settings) is possible |
| Memory channel (condition setting memory) User settable channels Fixed data channels | 90 10 |
| Condition setting Channel | User settable CH 90 CH |
| Power supply voltage | 100－120VAC |
| Power consumption | 2.0kW |
| External dimensions | W565 × D597 × H741(㎜) |
| Main unit weight | Approx. 140kg |
Kakuhunter Line up
Atmospheric Pressure Models
 SK-300SII 300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials. |  SK-350TII 400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production. |  SK-1100T 1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention. |
 SK-2000T 2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion. |  SK-3000TII 3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials. |  SK-4000T 4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials. |
 SK-10000T 10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity. | ||
Vacuum Equipped Models
 SK-300TVS-A 300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical). |  SK-350TV/TVS 400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines). |  SK-1100TV/TVSII ~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives. |
 SK-4000TV ~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins. |  SK-10000TV ~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale. |
High-Spec Model
 SK-400TR 300 ml × 2 cups ~ 700 g High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors. |
Exclusive Models
 SK-BS12T ~2 L × 2 cups ~ 4 kg Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives. |  SK-MP12T ~2 L × 2 cups ~ 4 kg Multi‑purpose exclusive model with flexible recipes and repeatable scale‑up—ideal for R&D platforms and custom pilot lines. |
