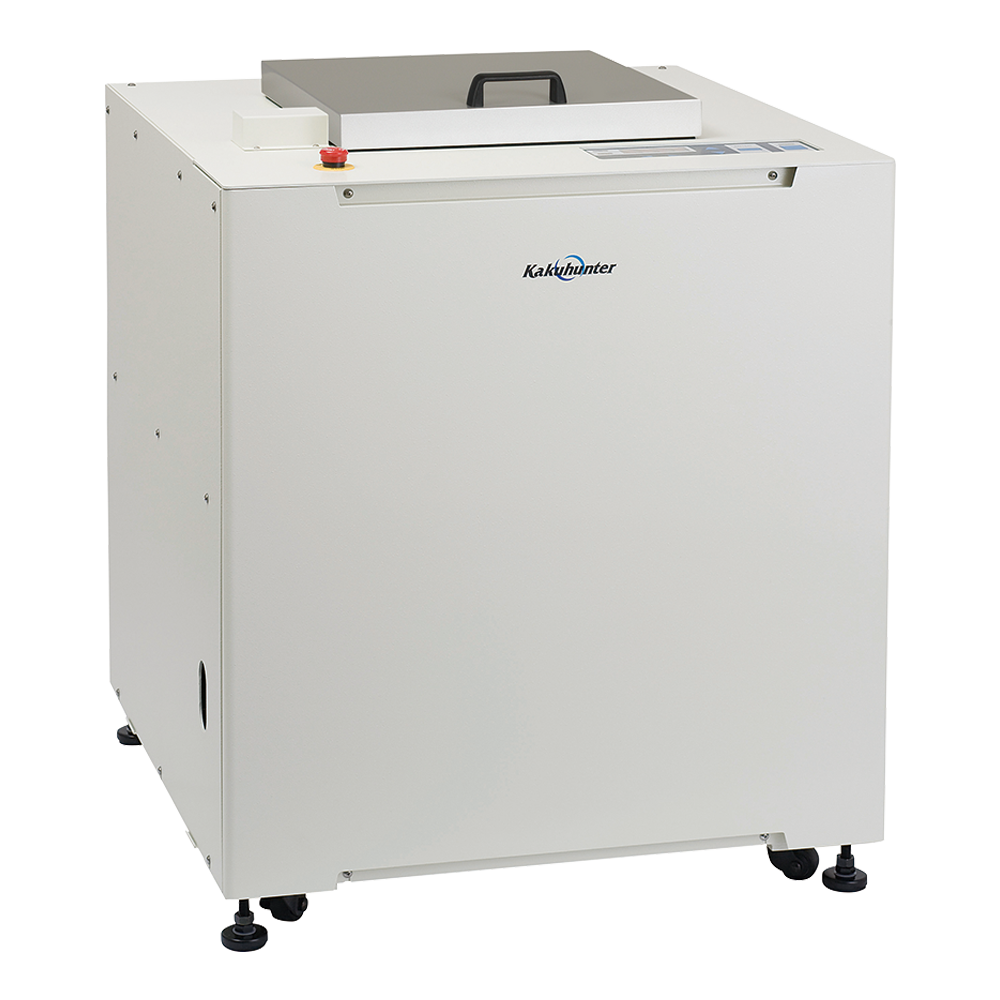

Shashin Kagaku - Kakuhunter SK-3000TII
The SK-3000TII provides 6,000g capacity, making it ideal for high-volume production where consistency, efficiency, and bubble-free results are essential. Designed for continuous industrial use in electronics, automotive, and chemical manufacturing.
1. Capacity: 6,000g gross / ~3L × 2 cups
2. Independent Revolution & Rotation Control
3. Wave Mode for challenging dispersions
4. Durable Industrial Construction: Long-term heavy-duty operation
5. Non-contact Processing: No contamination, minimal maintenance
6. Full Safety Features: Lid lock, unbalance detection, alerts
Advantages
● Processes large, high-viscosity batches efficiently
● Maintains uniformity across large production runs
● Reduces downtime between material changes
?Automotive: EV battery adhesive production
?Energy: Bulk electrode slurry preparation
?Industrial: Large-scale pigment and coating production
⚡Electronics: High-volume thermal paste manufacturing
| Cup size | 2000ml x 2 cups | |
| Max throughput | 3kg x 2 cups | |
| Other containers | A variety of containers and syringes can be used by use of an adapter | |
| Speed of revolution | Settable at 9 steps | |
| Speed of rotation | Settable at 10 steps | |
| Settable time | 10 ~ 900 sec. x 5 steps * 5 steps totaling up to 25 min. | |
| Step mode | 5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) | |
| Conditions setting memory | User-settable channels | 90CH |
| Fixed data channels | 10CH | |
| Power supply voltage | Three-phase 200-240VAC±10% 50/60Hz | |
| Power consumption | 3.0kW | |
| External dimensions | W726×D743×H860（㎜） | |
| Weight of the main unit | Approx. 270kg | |
Kakuhunter Line up
Atmospheric Pressure Models
SK-300SII
300 ml × 1 cup ~ 310 g
Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials.
|
SK-350TII
400 ml × 2 cups ~ 700 g
90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production.
|
SK-1100T
1100 ml × 2 cups ~ 2.2 kg
High-speed, wide-radius mixer for high-quality production and lump prevention.
|
SK-2000T
2000 ml × 2 cups ~ 4 kg
Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion.
|
SK-3000TII
3000 ml × 2 cups ~ 6 kg
For mass production with consistent results. Excellent for heat-sensitive materials.
|
SK-4000T
4000 ml × 2 cups ~ 8 kg
High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials.
|
SK-10000T
10000 ml × 2 cups ~ 20 kg
Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity.
|
||
Vacuum Equipped Models
SK-300TVS-A
300 ml × 2 cups ~ 600 g
Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical).
|
SK-350TV/TVS
400 ml × 2 cups ~ 700 g
90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines).
|
SK-1100TV/TVSII
~10 L × 2 cups ~ 20 kg
Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives.
|
SK-4000TV
~5 L × 2 cups ~ 10 kg
High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins.
|
SK-10000TV
~10 L × 2 cups ~ 20 kg
Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale.
|
High-Spec Model
SK-400TR
300 ml × 2 cups ~ 700 g
High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors.
|
Exclusive Models
SK-BS12T
~2 L × 2 cups ~ 4 kg
Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives.
|
SK-MP12T
~2 L × 2 cups ~ 4 kg
Multi‑purpose exclusive model with flexible recipes and repeatable scale‑up—ideal for R&D platforms and custom pilot lines.
|
