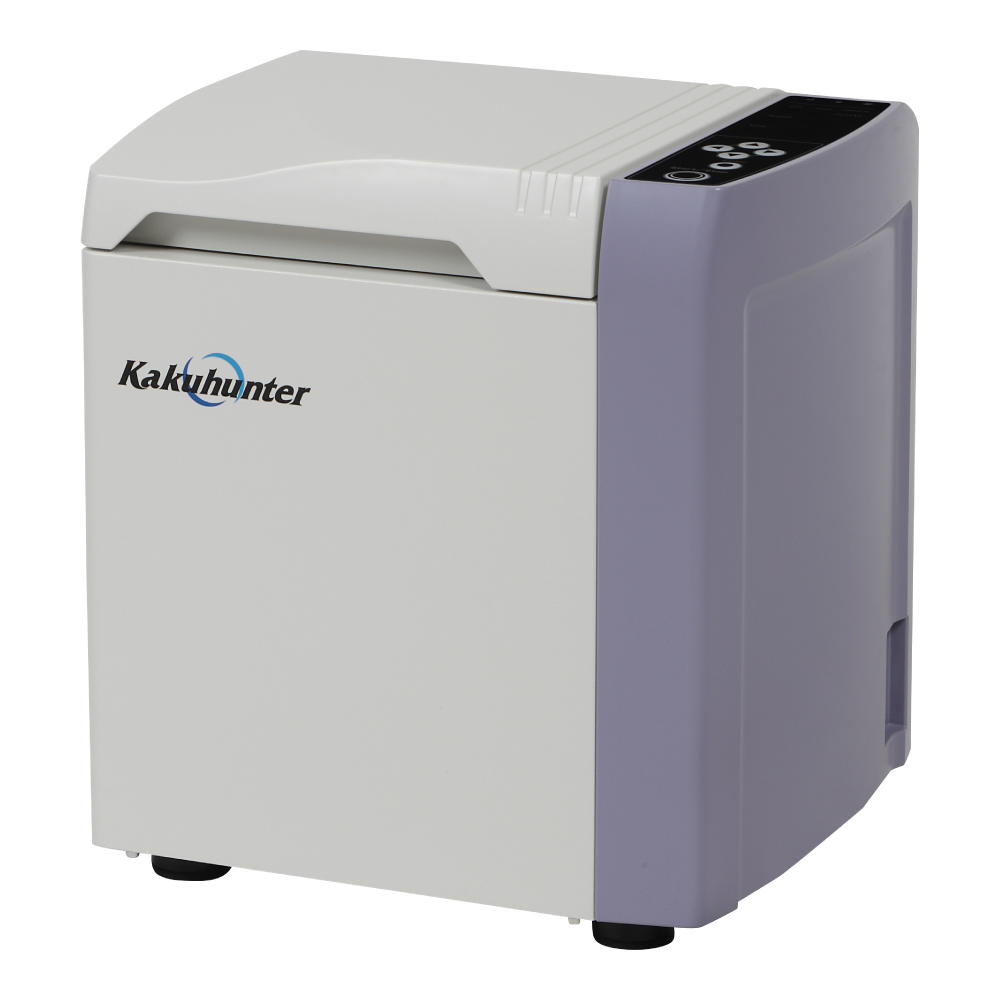

SK-300SII Planetary Centrifugal Mixer – Precision Mixing & Defoaming in One Compact Unit
The SK-300SII from Shashin Kagaku Co., Ltd. is a next-generation planetary centrifugal mixer designed for precise mixing and defoaming of materials with different viscosities and specific gravities. Equipped with an individual revolution and rotation speed control system, it offers up to 90 unique speed combinations, enabling optimized settings for a wide variety of applications—from adhesives and conductive pastes to cosmetic pigments and coatings.
1. Capacity: 300ml × 1 cup / Max. 310g (gross weight)
2. Revolution & Rotation Control: Independently adjustable—9 revolution steps × 10 rotation steps
3. Three Operation Modes:
- Mixing Mode – Standard high-speed mixing
- Medium Mode – Minimizes heat generation during mixing
- Degassing Mode – Optimized for bubble removal
4. Wave Mode: Enhances dispersion force for challenging materials
5. Balance Navigation: Detects imbalance and assists in balancing the load
6. Non-contact Mixing: No propellers, no cleaning required, zero material loss
7. Safety Features: Lid lock, operation lock, unbalance detection, motor warning & maintenance alerts
Advantages Over Conventional Mixers
・No material damage or contamination – Unlike propeller and roller mixers ・Shorter processing times – From tens of seconds to a few minutes ・Handles a wide viscosity range – From low-viscosity liquids to high-viscosity pastes ・Continuous Operation: 5-step operation settings allow stable long-duration use⚡Electronics: Conductive paste mixing for PCB manufacturing
?Cosmetics: Pigment dispersion for foundations, lipsticks, nail polish
?Automotive: Thermal grease preparation, adhesive blending
?Medical: Silicone preparation for dental and device applications
?Coatings & Inks: Uniform mixing of high-viscosity printing inks and specialty coatings
Mode setting according to the application
SK-300SII, the new medium mode has been added to the existing "mixing mode/degassing mode".
The balance can be adjusted easily for the unbalance detection and balance navigation functions.
Easy operation keeps same, it offers a wider range of applications, and a selection of modes suited for the material.
Equipped with a balance navigation function
The balance can be adjusted easily for the unbalance detection and balance navigation functions.
Compatible with 300 ml containers/max. 310 g
Despite its compact size, this model can be used to process 300 ml containers weighing a maximum of 310 g (gross weight)!!
Designed with a full range of safety functions
This unit is designed with such considerations for safety as top lid lock, operation lock during while the lid is open and a malfunction prevention mechanism. In addition, the unbalance error detection and a full range of functions for warning and notifying of motor problems or maintenance set alarm with peace of mind.
| Cup size | 300ml×1cup, Maximum 310g (Gross Weight) | |
|---|---|---|
| No. of revolutions | Mixer mode | 200-2000rpm |
| Medium Mode | 200-2000rpm | |
| Degassing mode | 400-2200rpm | |
| No. of rotations | Mixing mode | follows at 40% of revolutions |
| Medium Mode | follows at 20% of revolutions | |
| Degassing mode | follows at 3% of revolutions | |
| Time of setting | Maximum 30 minutes (Total 9steps) | |
| Step mode | Continues operation with 9 different action patterns(Condition setting) possible. | |
| Memory channel | 0-9channel | |
| Power supply voltage | Single-phase 100-115VAC±10% 50/60Hz | |
| Power consumption | About 1,380W | |
| External measurements | W340x D315xH370(mm) | |
| Weight | Approx. 24kg | |
Kakuhunter Line up
Atmospheric Pressure Models
 SK-300SII 300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials. |
 SK-350TII 400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production. |
 SK-1100T 1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention. |
 SK-2000T 2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion. |
 SK-3000TII 3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials. |
 SK-4000T 4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials. |
 SK-10000T 10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity. |
||
Vacuum Equipped Models
 SK-300TVS-A 300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical). |
 SK-350TV/TVS 400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines). |
 SK-1100TV/TVSII ~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives. |
 SK-4000TV ~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins. |
 SK-10000TV ~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale. |
High-Spec Model
 SK-400TR 300 ml × 2 cups ~ 700 g High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors. |
Exclusive Models
 SK-BS12T ~2 L × 2 cups ~ 4 kg Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives. |
 SK-MP12T ~2 L × 2 cups ~ 4 kg Multi‑purpose exclusive model with flexible recipes and repeatable scale‑up—ideal for R&D platforms and custom pilot lines. |
