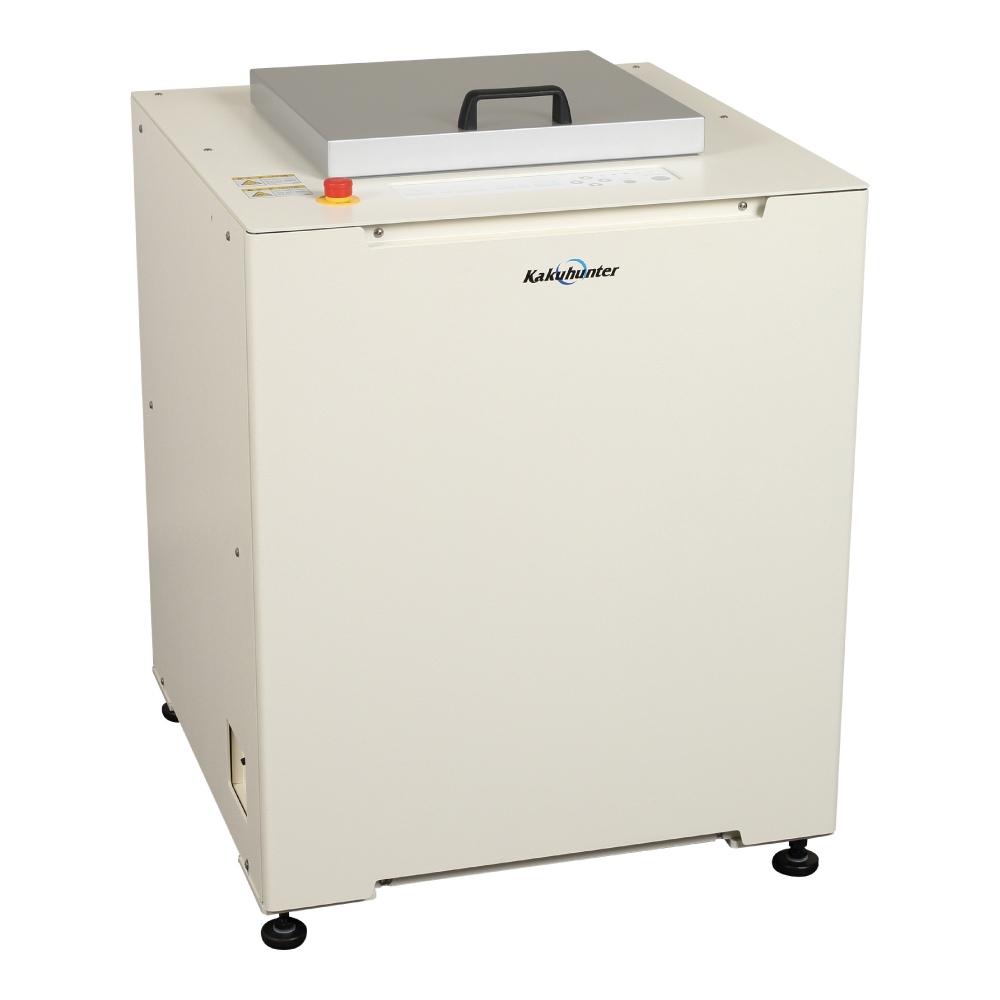

SHASHIN KAGAKU SK-2000T Kakuhunter Planetary Centrifugal Mixer

Type: Planetary Centrifugal Mixer

Model: SK-2000T

SK-2000T Planetary Centrifugal Mixer – 4kg Industrial-Grade Mixing Solution

The SK-2000T delivers 4,000g batch capacity, combining high torque, precise speed control, and robust construction for industrial production lines. Ideal for adhesive manufacturing, resin blending, and large-scale pigment dispersion.

1. Capacity: 4,000g gross / ~2L × 2 cups 2. Independent Revolution & Rotation Control for optimized results 3. Three Operating Modes + Wave Mode for enhanced dispersion 4. High-Durability Design: Continuous heavy-duty operation 5. Non-contact Mixing: Eliminates contamination and reduces cleaning requirements 6. Safety: Lid lock, unbalance detection, motor alerts

Containers and adapters

The SK-2000T offers versatile and customizable cup tray modifications for client-specific containers, supporting weights up to 2 kg and dimensions of φ150 mm x 170 mm. This flexibility allows for the use of existing containers, eliminating the need for additional purchases. Moreover, the system accommodates various products by offering optional adapters, tailored to client-specified containers or syringes. Please note, compatibility with cup trays may vary based on the container's shape.

?Automotive: Large-batch adhesive preparation for EV assembly

?Industrial: High-volume pigment blending

?Energy: Battery slurry mass production

⚡Electronics: Thermal interface material production

Advantages

1. Handles large-batch production without sacrificing uniformity

2. Capable of processing abrasive and high-density materials

3. Cuts production time for high-viscosity materials

Cup size	Maximum 2kg (Gross Weight) x 2cups
Other containers	Multiple containers and syringes can be used by using an adapter.
Speed of revolution	Settable in 9 steps
Speed of rotation	Settable in 10 steps (There is limitation for rotation speed)
Settable time	Maximum 25 minutes. (5 Step total), 1 step max is 900 seconds
Step mode	5 steps Continuous operation with 5 different operation patterns (condition settings) is possible
Memory channel (condition setting memory) User settable channels Fixed data channels	90 10
Power supply voltage	Single phase AC200-240V 50/60 Hz
Power consumption	2.0kW
External dimensions	W646 × D663 × H851(㎜)
Main unit weight	Approx. 225kg

Kakuhunter Line up

Atmospheric Pressure Models

SK-300SII 300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials.	SK-350TII 400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production.	SK-1100T 1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention.
SK-2000T 2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion.	SK-3000TII 3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials.	SK-4000T 4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials.
SK-10000T 10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity.

Vacuum Equipped Models

SK-300TVS-A 300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical).	SK-350TV/TVS 400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines).	SK-1100TV/TVSII ~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives.
SK-4000TV ~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins.	SK-10000TV ~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale.

High-Spec Model

SK-400TR

300 ml × 2 cups ~ 700 g
High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors.

Exclusive Models

SK-BS12T

~2 L × 2 cups ~ 4 kg
Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives.
