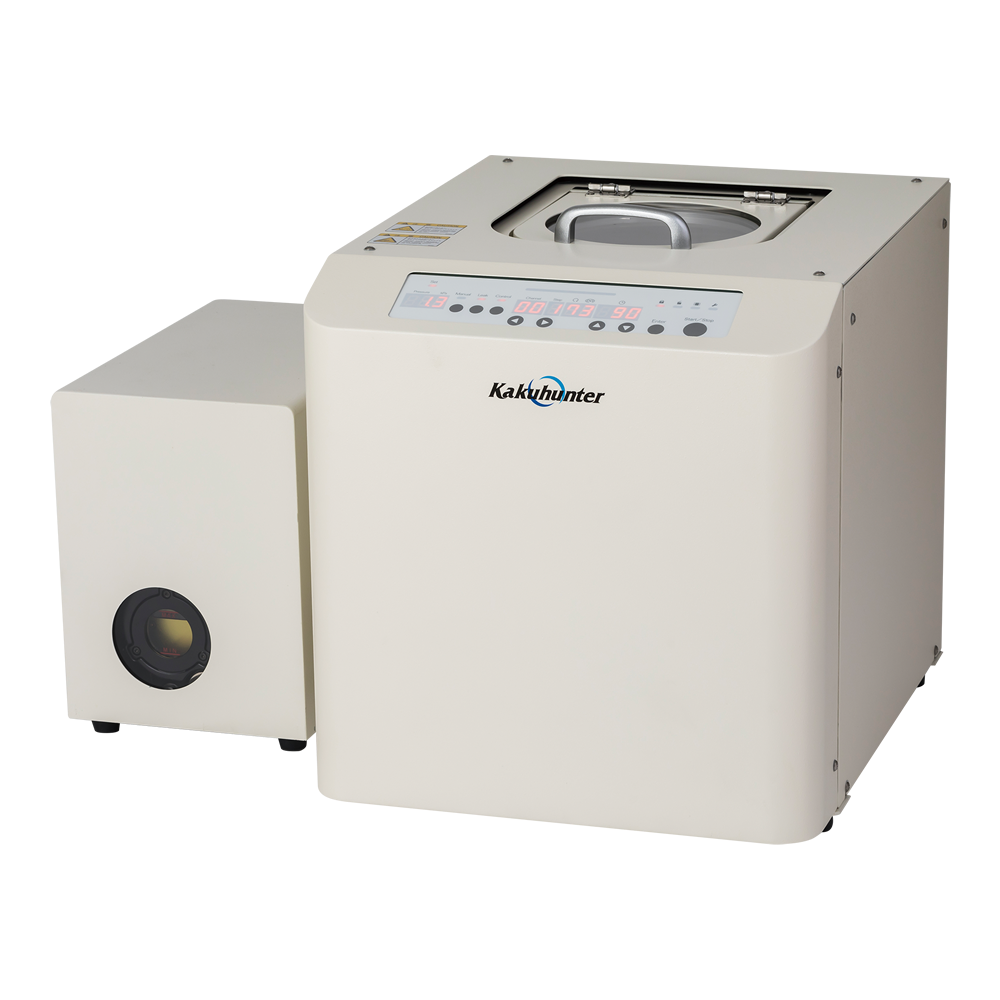

SHASHIN KAGAKU SK-300TVS-A Kakuhunter Vacuum Planetary Centrifugal Mixer

Type: Planetary Centrifugal Mixer

Model: SK-300TVS-A

Industries & Applications:

SK-300TVS-A Vacuum Planetary Centrifugal Mixer – Compact Precision Bubble-Free Mixing

The SK-300TVS-A is a compact vacuum-equipped planetary centrifugal mixer designed for small-batch, high-precision mixing and degassing. Its combination of centrifugal force and vacuum technology ensures complete bubble removal, even in high-viscosity or filler-heavy materials. Ideal for R&D labs and small-scale production in electronics, optics, and medical applications.

1. Capacity: 600g gross / 300ml × 2 cups

2. Dual Technology: Centrifugal mixing + vacuum degassing in one unit

3. Independent Revolution & Rotation Control: 9 × 10 step combinations

4. Multiple Modes: Mixing / Medium / Degassing + Wave Mode

5. Superior Bubble Removal: Eliminates microbubbles for optical clarity

6. Compact Design: Fits seamlessly in lab environments

7. Safety Systems: Lid lock, vacuum chamber safety interlock, unbalance detection, motor alerts

Advantages

● Produces ultra-clear, bubble-free materials

● Handles a wide range of viscosities with precise control

● Reduces post-mixing processing time for sensitive applications

?Optics: Adhesive preparation for lenses and optical assemblies

⚡Electronics: LED encapsulant mixing and degassing

?Medical: Dental and surgical-grade silicone preparation

?R&D: Small-batch prototype material mixing

Cup size		300ml x 2cups Various syringes of 55cc or less
Max throughput		310g x 2cups
Other containers		A variety of containers and syringes can be used by use of an adapter
Speed of revolution		Settable at 9 steps
Speed of rotation		Settable at 10 steps (However, there are some restrictions depending on the speed of revolution.)
Settable time		25 min. max (as 5 steps in total)
Step mode		5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory	User-settable channels	90 CH
	Fixed data channels	10 CH
Power supply voltage		Single-phase 100-115VAC±10% Single-phase 200-230VAC±10% 50/60Hz
Power consumption		1.5kw
External dimensions		W445 x D555 x H495 (mm) (except for the pump)
Weight of the main unit		Approx. 80 kg (except for the pump)

*Vacuum Pump Box is not included as an optional equipment. * It differs machine throughput depending on materials characteristic. * Revolving speed may change depending on materials characteristic. * Detailed specification may change without prior notice.

Kakuhunter Line up

Atmospheric Pressure Models

SK-300SII 300 ml × 1 cup ~ 310 g Entry model with Medium & Wave modes. Ideal for small labs needing precise mixing and degassing of varied materials.	SK-350TII 400 ml × 2 cups ~ 700 g 90 speed patterns with separation prevention mode. Perfect for R&D and small-scale production.	SK-1100T 1100 ml × 2 cups ~ 2.2 kg High-speed, wide-radius mixer for high-quality production and lump prevention.
SK-2000T 2000 ml × 2 cups ~ 4 kg Custom high-capacity mixer for diverse industries. Excellent for large batch mixing and dispersion.	SK-3000TII 3000 ml × 2 cups ~ 6 kg For mass production with consistent results. Excellent for heat-sensitive materials.	SK-4000T 4000 ml × 2 cups ~ 8 kg High-capacity industrial model. Stable mixing for high-viscosity and multi-gravity materials.
SK-10000T 10000 ml × 2 cups ~ 20 kg Flagship large-batch mixer for heavy industrial use. Designed for maximum throughput and uniformity.

Vacuum Equipped Models

SK-300TVS-A 300 ml × 2 cups ~ 600 g Compact vacuum planetary mixer for precise mixing and complete bubble removal in lab environments (optical & medical).	SK-350TV/TVS 400 ml × 2 cups ~ 700 g 90 speed patterns + vacuum degassing. Syringe‑friendly, repeatable quality for adhesives, TIMs, and coatings (pilot lines).	SK-1100TV/TVSII ~10 L × 2 cups ~ 20 kg Large‑capacity vacuum mixer for filler‑rich materials. Industrial‑grade uniformity for EV electrode slurry and optical adhesives.
SK-4000TV ~5 L × 2 cups ~ 10 kg High‑throughput vacuum degassing for production environments. Stable QC for battery materials and industrial resins.	SK-10000TV ~10 L × 2 cups ~ 20 kg Ultra‑large vacuum planetary mixer for mass production in EV, aerospace, and high‑end electronics—microbubble‑free at scale.

High-Spec Model

SK-400TR

300 ml × 2 cups ~ 700 g
High‑torque, fast‑cycle planetary mixer for advanced dispersion (CNTs/ceramics). Optional vacuum; precision for aerospace & semiconductors.

Exclusive Models

SK-BS12T

~2 L × 2 cups ~ 4 kg
Exclusive, multi‑process platform (mix/dispersion/knead). Custom container compatibility for specialty cosmetics and medical adhesives.
