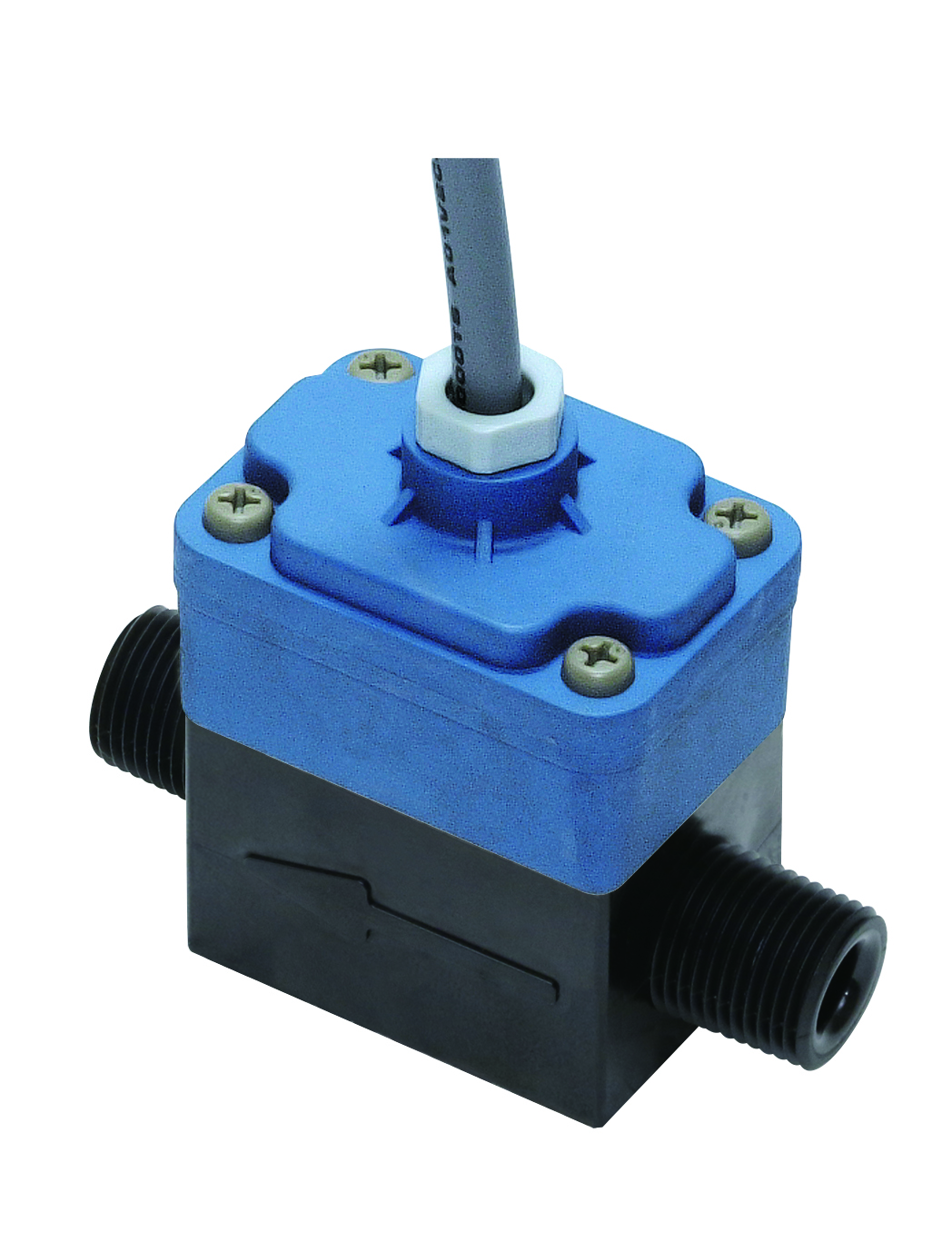

Eggs DELTA Pulse Vortex Sensor
The OVAL Eggs DELTA Pulse is a dedicated-output Karman vortex flow sensor designed for liquids and gases, including cooling water, pure water, air, and nitrogen. With a dustproof and mistproof construction, and no moving parts, it offers a robust, maintenance-free solution for industrial flow monitoring. Unlike the Eggs DELTA II, this model does not include a display, making it ideal for integration with centralized monitoring and control systems.● Dustproof and mistproof construction ● Wet gas is also measurable. ● Maintenance free thanks to the absence of moving parts
- Liquid (cooling water, pure water)
- gas (air nitrogen)
| Nominal size | 4mm | 8mm | 15mm | 25mm | |||
| Flow range (L/min) | Liquid | 0.4 to 4 | 1.1 to 15 | 2.8 to 45 | 8.3 to 133 | ||
| Gas | 7.2 to 17 | 18 to 90 | 55 to 283 | 167 to 850 | |||
| Connection | RR male screw (plastic resin), Rc female screw (metal), NPT male screw (plastic resin) | ||||||
| Applicable fluids | Liquid (cooling water, pure water), gas (air, nitrogen) | ||||||
| Body material | PPS plastic resin | ||||||
| Operating temp. range | –10 to +80°C | ||||||
| Max. operating pressure | 0.98MPa | ||||||
| Accuracy | Liquids: ±2% of full scale Gas: ±3% of full scale | ||||||
| Configuration | Explosionproof or non-explosionproof, IP65 | ||||||
| Power supply | DC-powered | ||||||
| Output | Pulse | ||||||
