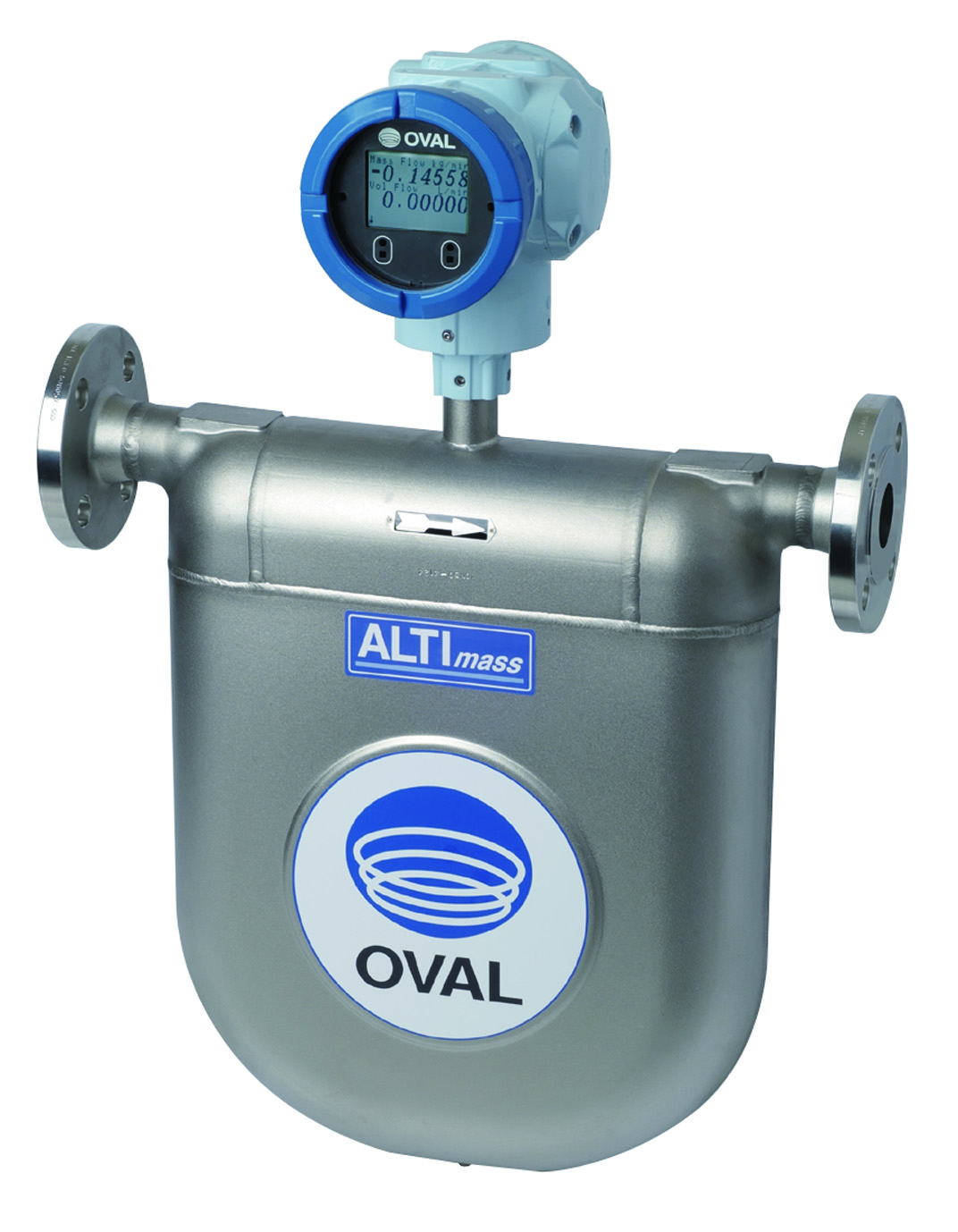

ALTImass Type U High-Accuracy Flowmeter
The OVAL ALTImass Type U is a high-performance Coriolis flowmeter with a U-shaped flow tube optimized for stability and accuracy. Equipped with an advanced transmitter featuring a large touch-panel display, self-diagnostics, error logging, and parameter backup, it ensures reliable operation in demanding environments. Ideal for routine flowrate monitoring as well as extremely low flow and short-duration filling processes, it offers enhanced zero-point adjustment, vibration detection, and superior zero stability. Supporting both high and low temperature service models, the ALTImass Type U is designed for versatility across liquid, gas, and steam applications.Enhanced maintenance functions
● Zero-point adjustment function (2 methods: Status input by front key operations or adjustment button on the transmitter) ● Error logging function ● Clock function (Accmlated time from power on is saved in the transmitter) ● Factory default parameter reloading function ● Parameter backup function to the display unit
Satisfactory self-diagnostic feature
● Status of the flowmeter is presented by two-color backlights (white, orange) and two LEDs (red, green). ● Input signal (sensor) check for disconnection ● Pipeline vibration check
Large-size display! Settings can be changed in the field.
Display screen is large and easy to view with a backlight facilitating setting in a dark place.
Improved zero stability
| Model | CA00A, CA001, CA003, CA006, CA010, CA015, CA025, CA040, CA050, CA080, CA100, CA150, CA15H, CA200, CA20H, CA250 | ||
| Nominal size | 1/4”, 10mm, 15mm, 25mm, 40mm, 50mm, 80mm, 100mm, 150mm, 200mm, 250mm | ||
| Process Connection | JIS 10, 20, 30, 40, 63K RF ASME 150, 300, 600 RF, JPI 150, 300, 600 RF DIN PN 10, 16, 25, 40RF, Ferrule, Screw | ||
| Acceptable fluids | Liquids, Gases | ||
| Flow range | 0 to 2800000kg/h (16 models) | ||
| Accuracy | Flowrate | Liquids | ±0.1％RD (CA003 to CA200) ±0.1％RD±Zero stability error (CA20H to CA250, High temperature service model) ±0.2％RD (CA00A, CA001) ±0.2％RD±Zero stability error (High pressure service model) |
| Gases | ±0.5％RD±Zero stability error | ||
| Density | Liquids | ±0.0005g/mL (CA003 to CA250) ±0.003g/mL (CA00A, CA001, High temperature service model) ±0.004g/mL (High pressure service model) | |
| Temperature range (Differs by explosionproof specification) | Standard model : −200 to ＋200℃ (Applicable to all models) | ||
| High temperature service model : −40 to ＋350℃ (CA025 to CA150) | |||
| Low temperature service model : −200 to ＋50℃ (CA025 to CA250) (Explosionproof model) | |||
| Max. operating pressure | Depends on flange rating | ||
| Wetted materials | SUS 316L, SUS 316L＋Alloy C, Alloy CC | ||
| Explosionproof specification | JPEx, ATEX, IECEx, KCs, CSA, NEPSI, ITRI | ||
| Maritime certification | DNV GL | ||
