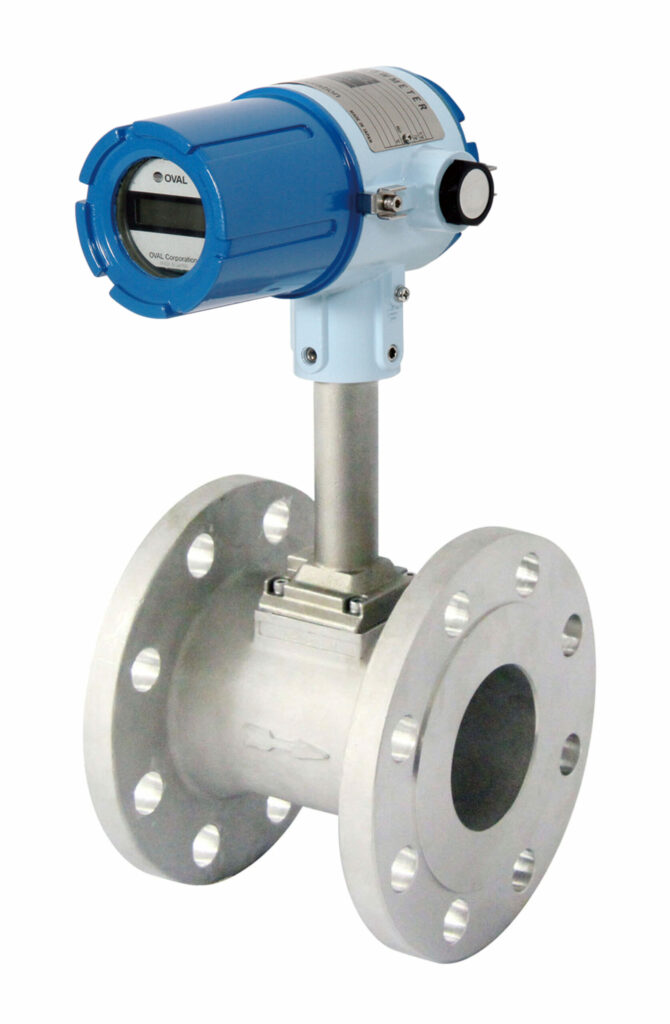

OVAL EX DELTA II Smart Vortex Flowmeter

OVAL EX DELTA II Smart Vortex Flowmeter

Add intelligent diagnostics, two-wire signal transmission and maintenance-oriented sensor options to liquid, gas and steam flow measurement.

OVAL’s EX DELTA II Smart Model incorporates functions for parameter retrieval, range setup, self-diagnostics, loop checking and compensation calculations. This makes it suitable for process control loops where repeatable readings and accessible instrument diagnostics matter as much as the underlying flow measurement.

Its two-wire transmitting system is designed to reduce wiring and simplify integration with plant instrumentation. Using an optional OVAL Smart Communication Unit (EL2310), users can configure or read parameters and support communication to a supervising system, depending on installed communications hardware.

The EX DELTA II family offers standard and DIA-shaped forms. Standard configurations measure liquids, gases and steam; the DIA-shaped version is shown for liquid service. Fixed-sensor and replaceable-sensor arrangements are available; OVAL notes that its replaceable sensor may be serviced without interruption of flow.

Range, pressure, high-temperature capability, accuracy basis and outputs all depend on the selected order code. The published family specification also mentions battery operation, but this Smart Model page should be specified and quoted as a smart two-wire transmitter, rather than confused with the dedicated battery-powered PAF5 version.

2-wire Smart transmitter architecture
Up to 300 mm Standard flanged nominal size
Up to 4.51 MPa Configuration-dependent process rating
Smart diagnostics Setup, checks and parameter retrieval

Intelligent Parameter Setup

Read, set and modify operating ranges and relevant meter coefficients to support commissioning and process changes.

Self-Diagnostics and Loop Checks

Perform built-in status checks and loop-oriented service tasks to support maintenance and troubleshooting.

Two-Wire Transmitter Design

Reduce instrumentation wiring complexity compared with approaches that require a separate local signal supply.

Optional Smart Communication Unit

EL2310 provides access to instrument parameters and supervisory communication functions where the chosen configuration supports them.

Replaceable Sensor Option

Choose a replaceable-sensor version that OVAL describes as serviceable without interrupting flow measurement.

Liquid, Gas and Steam Applications

Cover varied industrial process media with correctly specified sizes, connections and sensor technologies.

Continuous Process Instrumentation

Integrate vortex flow readings into plant control and supervisory systems through a suitable two-wire transmitter.

Steam Utility Flow Monitoring

Measure saturated-steam distribution where the selected meter size, piping and condition limits are met.

Industrial Gas Lines

Measure compatible process gases in equipment and utility lines with appropriate operating pressure and gas properties.

Water and Liquid Flow Monitoring

Monitor cooling water and other compatible process liquid use in industrial facilities.

Maintenance-Critical Installations

Use replaceable-sensor configurations when minimizing interruptions during sensor service is an important requirement.

Flowmeter Modernization

Update or expand flow measurement loops with intelligent configuration and diagnostic functions.

OVAL EX DELTA II Smart Vortex Flowmeter Specifications

Product familyEX DELTA II standard Smart Model (not PAF5 battery-only version)
Manufacturer type codesVXU, VXT, VXW, VXF, VXR, VXJ, VXL and VXM; verify exact assignment at quotation
Measurement methodKarman vortex flowmeter
Applicable fluidsLiquids, gases and steam for standard variants; liquid for DIA-shaped variant
Signal architectureTwo-wire smart transmitter
Wafer sizesStandard: 10–150 mm; steam 15 mm minimum; DIA-shaped: 15–80 mm
Flange sizesStandard: 15–300 mm; DIA-shaped: 50 or 80 mm
Water flow envelopeStandard: 0.2–2,510 m³/h; DIA-shaped liquid: 0.8–172 m³/h
Gas flow envelopeStandard: 2–15,000 m³/h for air at 0.2 MPa; not listed for DIA-shaped
Steam flow envelopeStandard: 0.02–47.6 t/h at 0.5 MPa saturated-steam reference; 15 mm minimum
Process-temperature envelope−30 to +300°C; up to +460°C for a specified high-temperature replaceable-sensor arrangement
Max. operating pressure4.51 MPa subject to flange rating and material
Accuracy±1% of reading or ±1% of full scale, depending on fluid/configuration; 10-mm standard flow exception ±2% FS
Flange standardsJIS 10/16/20/30K, ASME/JPI Classes 150/300/600 as available
Body materialsSUS316 or SCS14A, by configuration
Sensor alternativesFixed and replaceable sensor designs
Intelligent functionsRange setup, parameter recall/setting, self-diagnosis, loop checking and conversion calculations
Optional communicationOVAL Smart Communication Unit EL2310
Output familiesAnalog and pulse; selected order-code/interface compatibility to be checked
Explosion-protection optionsExplosionproof and non-explosionproof variants by regional approval and order code

The broad published specifications are family envelopes, not one-order-code guarantees. Do not apply the battery life of PAF5 or insertion-type variants to this Smart Model. Specify the required communication protocol, EL2310 and high-temperature/replacement sensor arrangement before quotation.
